Produkte > Steckverbinder, Reihenklemmen > Steckverbindungen Überbrückungsstecker > BDL-104-G-F Samtec

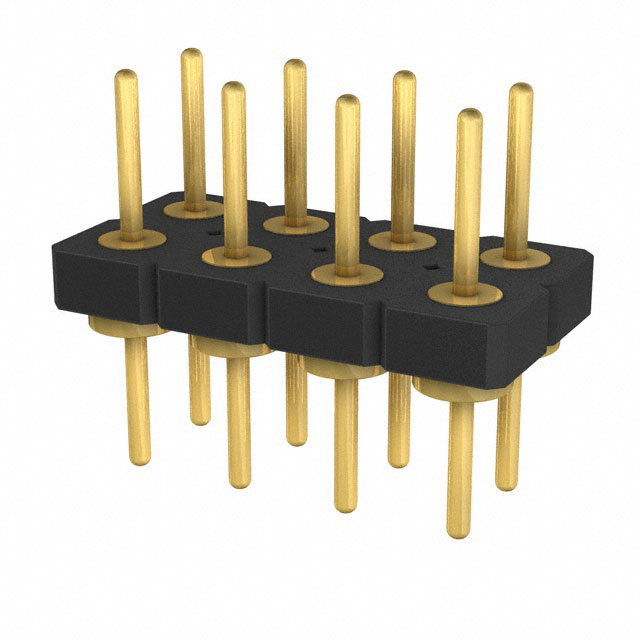

BDL-104-G-F Samtec
Produktcode: 34749
zu Favoriten hinzufügen
Lieblingsprodukt
Hersteller: Samtec
Funktionsbeschreibung: Stifte 2.54mm, vertikal THT, 8 Kontakte
Stifte oder Buchsen: Stifte (Stecker)
Rastermaß: 2,54 mm
Anzahl Reihen: 2-reihig
Produktrezensionen
Produktbewertung abgeben
Weitere Produktangebote BDL-104-G-F nach Preis ab 7.13 EUR bis 11.98 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BDL-104-G-F | Samtec Inc. |
Description: CONN HEADER VERT 8POS 2.54MM Packaging: Tube Connector Type: Header Mounting Type: Through Hole Number of Positions: 8 Number of Rows: 2 Style: Board to Board Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 20.0µin (0.51µm) Contact Finish - Post: Gold Contact Shape: Circular Contact Length - Post: 0.125" (3.18mm) Insulation Height: 0.085" (2.15mm) Shrouding: Unshrouded Overall Contact Length: 0.332" (8.43mm) Insulation Material: Polyamide (PA), Nylon Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.122" (3.10mm) |
auf Bestellung 280 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
 |
BDL-104-G-F | Samtec |
Headers & Wire Housings .100" Low Profile Double Row, Screw Machine Terminal Strip |
auf Bestellung 51 Stücke: Lieferzeit 10-14 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| BDL-104-G-F |
|
Hersteller: Samtec Inc.
Description: CONN HEADER VERT 8POS 2.54MM
Packaging: Tube
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.125" (3.18mm)
Insulation Height: 0.085" (2.15mm)
Shrouding: Unshrouded
Overall Contact Length: 0.332" (8.43mm)
Insulation Material: Polyamide (PA), Nylon
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.122" (3.10mm)
Description: CONN HEADER VERT 8POS 2.54MM
Packaging: Tube
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.125" (3.18mm)
Insulation Height: 0.085" (2.15mm)
Shrouding: Unshrouded
Overall Contact Length: 0.332" (8.43mm)
Insulation Material: Polyamide (PA), Nylon
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.122" (3.10mm)
auf Bestellung 280 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 11.98 EUR |
| 10+ | 9.19 EUR |
| 100+ | 7.13 EUR |
| BDL-104-G-F |
|
Hersteller: Samtec
Headers & Wire Housings .100" Low Profile Double Row, Screw Machine Terminal Strip
Headers & Wire Housings .100" Low Profile Double Row, Screw Machine Terminal Strip
auf Bestellung 51 Stücke:
Lieferzeit 10-14 Tag (e)
