BG050-10A-0-0450-0737-0350-L-D GCT
Hersteller: GCT

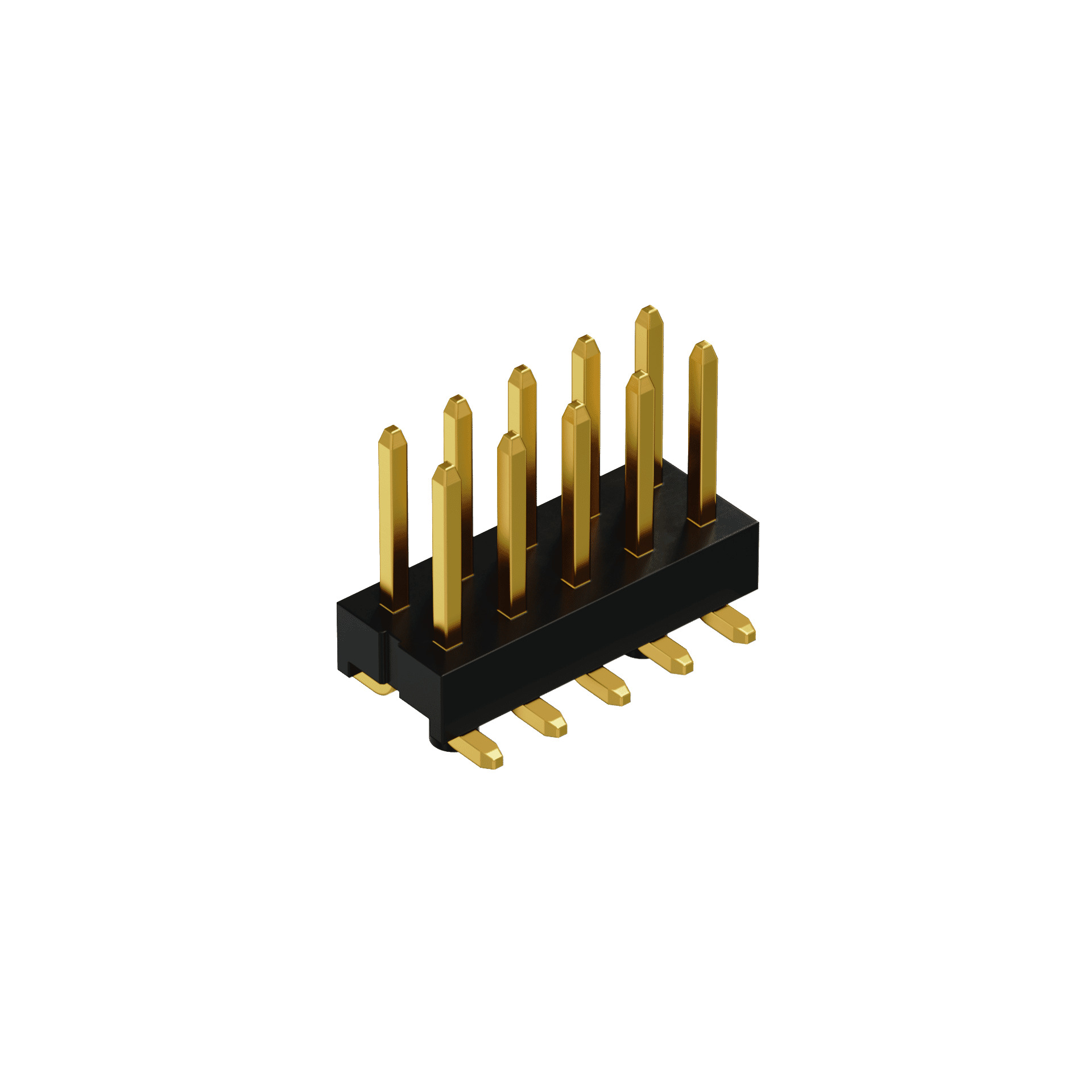

Description: GCT - BG050-10A-0-0450-0737-0350-L-D - BOARD-BOARD CONNECTOR, HEADER, 10WAY, 2ROW
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Gold Plated Contacts
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Copper Alloy
usEccn: EAR99
Steckverbinderkragen: Unshrouded
Anzahl der Kontakte: 10Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Steckverbindertyp: Pin Header
Produktpalette: BG050 Series
productTraceability: Yes-Date/Lot Code
Kontaktanschluss: Surface Mount Straight
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
directShipCharge: 25
SVHC: No SVHC (27-Jun-2024)
| Anzahl | Privatkunde |
|---|---|
| 136+ | 1.84 EUR |
| 146+ | 1.59 EUR |
| 161+ | 1.33 EUR |
| 179+ | 1.2 EUR |
| 187+ | 1.14 EUR |
| 250+ | 1.06 EUR |
| 500+ | 1.01 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BG050-10A-0-0450-0737-0350-L-D GCT
Description: 10W, 2.54MM PITCH PIN HDR,DIL, S, Packaging: Tube, Connector Type: Header, Voltage Rating: 250VAC/DC, Current Rating (Amps): 3A per Contact, Mounting Type: Surface Mount, Number of Positions: 10, Number of Rows: 2, Style: Board to Board, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Post: Gold, Contact Shape: Square, Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.177" (4.50mm).
Weitere Produktangebote BG050-10A-0-0450-0737-0350-L-D
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
BG050-10A-0-0450-0737-0350-L-D | GCT |
Description: 10W, 2.54MM PITCH PIN HDR,DIL, S Packaging: Tube Connector Type: Header Voltage Rating: 250VAC/DC Current Rating (Amps): 3A per Contact Mounting Type: Surface Mount Number of Positions: 10 Number of Rows: 2 Style: Board to Board Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: FLASH Contact Finish - Post: Gold Contact Shape: Square Insulation Height: 0.100" (2.54mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.177" (4.50mm) |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 3000 Stücke Im Einkaufswagen Stück im Wert von UAH |
 |
BG050-10A-0-0450-0737-0350-L-D | GCT |
Board to Board & Mezzanine Connectors 10w, 2.54mm Pitch Pin Hdr,DIL, SMT,Vert,No Peg, GF, Tube |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 3 Stücke Im Einkaufswagen Stück im Wert von UAH |
| BG050-10A-0-0450-0737-0350-L-D |
|
Hersteller: GCT
Description: 10W, 2.54MM PITCH PIN HDR,DIL, S
Packaging: Tube
Connector Type: Header
Voltage Rating: 250VAC/DC
Current Rating (Amps): 3A per Contact
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.177" (4.50mm)
Description: 10W, 2.54MM PITCH PIN HDR,DIL, S
Packaging: Tube
Connector Type: Header
Voltage Rating: 250VAC/DC
Current Rating (Amps): 3A per Contact
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.177" (4.50mm)
Produkt ist nicht verfügbar
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| BG050-10A-0-0450-0737-0350-L-D |
|
Hersteller: GCT
Board to Board & Mezzanine Connectors 10w, 2.54mm Pitch Pin Hdr,DIL, SMT,Vert,No Peg, GF, Tube
Board to Board & Mezzanine Connectors 10w, 2.54mm Pitch Pin Hdr,DIL, SMT,Vert,No Peg, GF, Tube
Produkt ist nicht verfügbar
Mindestbestellmenge: 3 Stücke
Im Einkaufswagen
Stück im Wert von UAH
