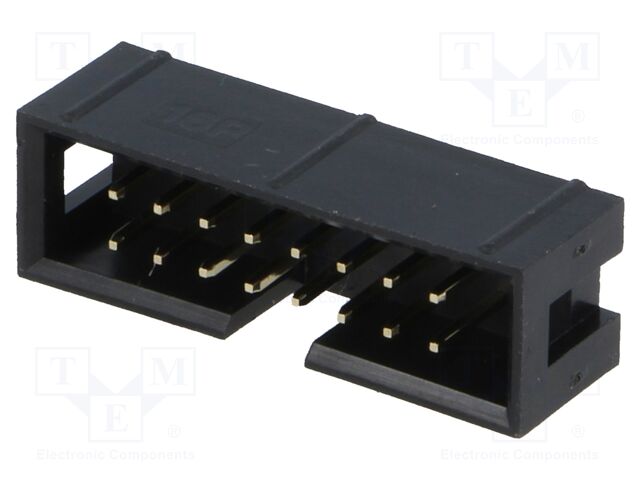

BHR-16-VUA ADAM TECH
Hersteller: ADAM TECH
Category: IDC connectors
Description: Connector: IDC; socket; male; PIN: 16; straight; THT; 2.54mm; 2x8
Type of connector: IDC
Connector: socket
Kind of connector: male
Number of pins: 16
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 2x8
Contact plating: gold-plated
| Anzahl | Privatkunde |
|---|---|
| 200+ | 0.43 EUR |
| 239+ | 0.36 EUR |
| 288+ | 0.3 EUR |
| 298+ | 0.29 EUR |
| 360+ | 0.27 EUR |
| 540+ | 0.26 EUR |
| 1080+ | 0.25 EUR |
| 5040+ | 0.24 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BHR-16-VUA ADAM TECH
Description: CONN HEADER VERT 16POS 2.54MM, Current Rating (Amps): 3A, Voltage Rating: 250VAC, Connector Type: Header, Features: Polarizing Key, Packaging: Tray, Contact Finish - Post: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 105°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 16, Mounting Type: Through Hole, Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.358" (9.10mm), Contact Length - Post: 0.130" (3.30mm), Contact Shape: Square, Part Status: Active.
Weitere Produktangebote BHR-16-VUA nach Preis ab 0.35 EUR bis 0.65 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BHR-16-VUA | Adam Tech |
Description: CONN HEADER VERT 16POS 2.54MM Current Rating (Amps): 3A Voltage Rating: 250VAC Connector Type: Header Features: Polarizing Key Packaging: Tray Contact Finish - Post: Gold Contact Finish Thickness - Mating: FLASH Contact Finish - Mating: Gold Pitch - Mating: 0.100" (2.54mm) Insulation Color: Black Contact Material: Brass Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Male Pin Operating Temperature: -55°C ~ 105°C Style: Board to Board or Cable Number of Rows: 2 Number of Positions: 16 Mounting Type: Through Hole Row Spacing - Mating: 0.100" (2.54mm) Insulation Material: Polybutylene Terephthalate (PBT) Shrouding: Shrouded - 4 Wall Insulation Height: 0.358" (9.10mm) Contact Length - Post: 0.130" (3.30mm) Contact Shape: Square Part Status: Active |
auf Bestellung 4109 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
BHR-16-VUA | Adam Tech |
Headers & Wire Housings 16P STRAIGHT |
auf Bestellung 1901 Stücke: Lieferzeit 10-14 Tag (e) |
|
| BHR-16-VUA |
|
Hersteller: Adam Tech
Description: CONN HEADER VERT 16POS 2.54MM
Current Rating (Amps): 3A
Voltage Rating: 250VAC
Connector Type: Header
Features: Polarizing Key
Packaging: Tray
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Brass
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 105°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 16
Mounting Type: Through Hole
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.358" (9.10mm)
Contact Length - Post: 0.130" (3.30mm)
Contact Shape: Square
Part Status: Active
Description: CONN HEADER VERT 16POS 2.54MM
Current Rating (Amps): 3A
Voltage Rating: 250VAC
Connector Type: Header
Features: Polarizing Key
Packaging: Tray
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Brass
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 105°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 16
Mounting Type: Through Hole
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.358" (9.10mm)
Contact Length - Post: 0.130" (3.30mm)
Contact Shape: Square
Part Status: Active
auf Bestellung 4109 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 34+ | 0.63 EUR |
| 40+ | 0.54 EUR |
| 180+ | 0.44 EUR |
| 540+ | 0.4 EUR |
| 1080+ | 0.38 EUR |
| BHR-16-VUA |
|
Hersteller: Adam Tech
Headers & Wire Housings 16P STRAIGHT
Headers & Wire Housings 16P STRAIGHT
auf Bestellung 1901 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 6+ | 0.65 EUR |
| 10+ | 0.55 EUR |
| 100+ | 0.44 EUR |
| 180+ | 0.42 EUR |
| 1080+ | 0.39 EUR |
| 2520+ | 0.38 EUR |
| 5040+ | 0.35 EUR |
