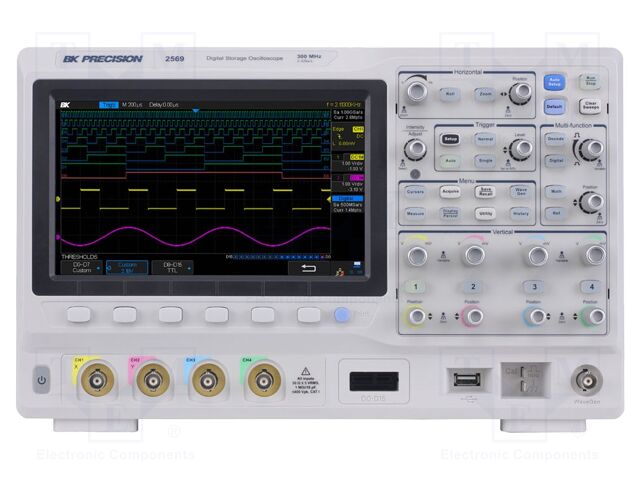

Hersteller: B&K PRECISION
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 300MHz; 2Gsps; 140Mpts/ch; LCD TFT 8"
Type of oscilloscope: digital
Number of channels: 4
Band: 300MHz
Sampling: 2Gsps
Memory record length: 140Mpts/ch
Kind of display used: LCD TFT 8"
Trigger modes: automatic; normal; single
Trigger: dropout; falling-edge; interval; pattern; pulse; rising-edge; runt; video signal; window
Trigger source: CH1; CH2; CH3; CH4
Time base: 2n...50s/div
Max. input voltage: 400V
Vertical resolution: 8bit
Input coupling: AC, DC, GND
Trigger coupling: AC; DC; highpass; lowpass; noise
Interface: LAN; USB
Rise time: 1.2ns
Input impedance: 1MΩ/22pF
Input sensitivity: 500µV/div...10V/div
Measuring instrument features: automatic measurement of many parameters; digital filter function; mathematical functions: addition, subtraction, division, multiplication, FFT, derivative, integral, square root; Pass/Fail function
Standard equipment: mains cable; manufacturer's calibration certificate; oscilloscope probe (1 per channel); USB cable
Operating temperature: 10...40°C
Body dimensions: 352x128x224mm
Supply voltage: 100...240V AC
Supply voltage 400Hz: 100...120V AC
Display resolution: 800x480
Horizontal accuracy: ±3%
Software: download from manufacturers website

Hersteller: B&K PRECISION
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 350MHz; 2Gsps; 200Mpts/ch; 1ns; 0÷40°C
Type of oscilloscope: digital
Number of channels: 4
Band: 350MHz
Sampling: 2Gsps
Memory record length: 200Mpts/ch
Kind of display used: LCD 3,5"; LCD TFT 10,1"
Trigger modes: automatic; normal; single
Trigger: dropout; falling-edge; interval; pattern; pulse; rising-edge; runt; serial; slope; video signal; window
Trigger source: CH1; CH2; CH3; CH4; external signal; line
Time base: 1n...100s/div
Max. input voltage: 400V
Vertical resolution: 10bit
Input coupling: AC, DC, GND
Trigger coupling: AC; DC; highpass; noise
Interface: LAN; USB
Rise time: 1ns
Input impedance: 1MΩ/17pF
Input sensitivity: 500µV/div...10V/div
Additional functions: arbitrary waveform generator
Measuring instrument features: advanced math functions; automatic measurement of many parameters; Bode Plot functions; Histogram - graphical visualisation of measurement results; I2C, SPI, UART, CAN, LIN Serial Decode; Pass/Fail function; power analysis function
Standard equipment: mains cable; manufacturer's calibration certificate; oscilloscope probe (1 per channel); USB cable
Operating temperature: 0...40°C
Body dimensions: 352x224x111mm
Related items: RK2560B
Supply voltage: 100...240V AC
Supply voltage 400Hz: 100...120V AC
Display resolution: 1024x600

Hersteller: B&K PRECISION
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 4; 350MHz; 2Gsps; 200Mpts/ch; 1ns; 0÷40°C
Type of oscilloscope: digital
Number of channels: 4
Band: 350MHz
Sampling: 2Gsps
Memory record length: 200Mpts/ch
Kind of display used: LCD 3,5"; LCD TFT 10,1"
Trigger modes: automatic; normal; single
Trigger: dropout; falling-edge; interval; pattern; pulse; rising-edge; runt; serial; slope; video signal; window
Trigger source: CH1; CH2; CH3; CH4; external signal; line
Time base: 1n...100s/div
Max. input voltage: 400V
Vertical resolution: 10bit
Input coupling: AC, DC, GND
Trigger coupling: AC; DC; highpass; noise
Interface: LAN; USB
Rise time: 1ns
Input impedance: 1MΩ/17pF
Input sensitivity: 500µV/div...10V/div
Additional functions: arbitrary waveform generator
Measuring instrument features: advanced math functions; automatic measurement of many parameters; Bode Plot functions; Histogram - graphical visualisation of measurement results; I2C, SPI, UART, CAN, LIN Serial Decode; Pass/Fail function; power analysis function
Standard equipment: mains cable; manufacturer's calibration certificate; oscilloscope probe (1 per channel); USB cable
Operating temperature: 0...40°C
Body dimensions: 352x224x111mm
Related items: RK2560B
Supply voltage: 100...240V AC
Supply voltage 400Hz: 100...120V AC
Display resolution: 1024x600
Anzahl je Verpackung: 1 Stücke

Hersteller: B&K PRECISION
Category: Digital Oscilloscopes
Description: Oscilloscope: mixed signal; Ch: 4; 350MHz; 2Gsps; 200Mpts/ch; 1ns
Type of oscilloscope: mixed signal
Number of channels: 4
Band: 350MHz
Sampling: 2Gsps
Memory record length: 200Mpts/ch
Kind of display used: LCD 3,5"; LCD TFT 10,1"
Trigger modes: automatic; normal; single
Trigger: dropout; falling-edge; interval; pattern; pulse; rising-edge; runt; serial; slope; video signal; window
Trigger source: CH1; CH2; CH3; CH4; digital channel (D0...D15); external signal; line
Time base: 1n...100s/div
Max. input voltage: 400V
Vertical resolution: 10bit
Input coupling: AC, DC, GND
Trigger coupling: AC; DC; highpass; noise
Interface: LAN; USB
Rise time: 1ns
Input impedance: 1MΩ/17pF
Input sensitivity: 500µV/div...10V/div
Additional functions: arbitrary waveform generator
Measuring instrument features: 16 digital channels; advanced math functions; automatic measurement of many parameters; Bode Plot functions; Histogram - graphical visualisation of measurement results; I2C, SPI, UART, CAN, LIN Serial Decode; Pass/Fail function; power analysis function
Standard equipment: mains cable; manufacturer's calibration certificate; oscilloscope probe (1 per channel); USB cable
Operating temperature: 0...40°C
Body dimensions: 352x224x111mm
Related items: RK2560B
Supply voltage: 100...240V AC
Supply voltage 400Hz: 100...120V AC
Display resolution: 1024x600

Hersteller: B&K PRECISION
Category: Digital Oscilloscopes
Description: Oscilloscope: mixed signal; Ch: 4; 350MHz; 2Gsps; 200Mpts/ch; 1ns
Type of oscilloscope: mixed signal
Number of channels: 4
Band: 350MHz
Sampling: 2Gsps
Memory record length: 200Mpts/ch
Kind of display used: LCD 3,5"; LCD TFT 10,1"
Trigger modes: automatic; normal; single
Trigger: dropout; falling-edge; interval; pattern; pulse; rising-edge; runt; serial; slope; video signal; window
Trigger source: CH1; CH2; CH3; CH4; digital channel (D0...D15); external signal; line
Time base: 1n...100s/div
Max. input voltage: 400V
Vertical resolution: 10bit
Input coupling: AC, DC, GND
Trigger coupling: AC; DC; highpass; noise
Interface: LAN; USB
Rise time: 1ns
Input impedance: 1MΩ/17pF
Input sensitivity: 500µV/div...10V/div
Additional functions: arbitrary waveform generator
Measuring instrument features: 16 digital channels; advanced math functions; automatic measurement of many parameters; Bode Plot functions; Histogram - graphical visualisation of measurement results; I2C, SPI, UART, CAN, LIN Serial Decode; Pass/Fail function; power analysis function
Standard equipment: mains cable; manufacturer's calibration certificate; oscilloscope probe (1 per channel); USB cable
Operating temperature: 0...40°C
Body dimensions: 352x224x111mm
Related items: RK2560B
Supply voltage: 100...240V AC
Supply voltage 400Hz: 100...120V AC
Display resolution: 1024x600
Anzahl je Verpackung: 1 Stücke

Hersteller: B&K Precision
Description: 300 MHZ, 2 GSA/S 4 CHANNEL DIGIT
Packaging: Box
Display Type: LCD - Color
Function: Record, Save
Memory Size: 140Mpts
Interface: USB
Type: Bench, Digital
Voltage - Supply: 100 ~ 240VAC
Sampling Rate (Per Second): 2G
Voltage - Input (Max): 400V
Channels: 4 Analog
Input Impedance: 1M - 22pF
Probe Type: Passive 10:1 (4)
Bandwidth: 300 MHz
Rise Time (Typ): 1.2 ns

Hersteller: B&K Precision
Description: 300 MHZ, 2 GSA/S 4 CHANNEL MIXED
Packaging: Box
Display Type: LCD - Color
Function: Record, Save
Memory Size: 140Mpts
Interface: USB
Type: Bench, Digital
Voltage - Supply: 100 ~ 240VAC
Sampling Rate (Per Second): 2G
Voltage - Input (Max): 400V
Channels: 4 Analog
Input Impedance: 1M - 22pF
Probe Type: Passive 10:1 (4)
Bandwidth: 300 MHz
Rise Time (Typ): 1.2 ns
