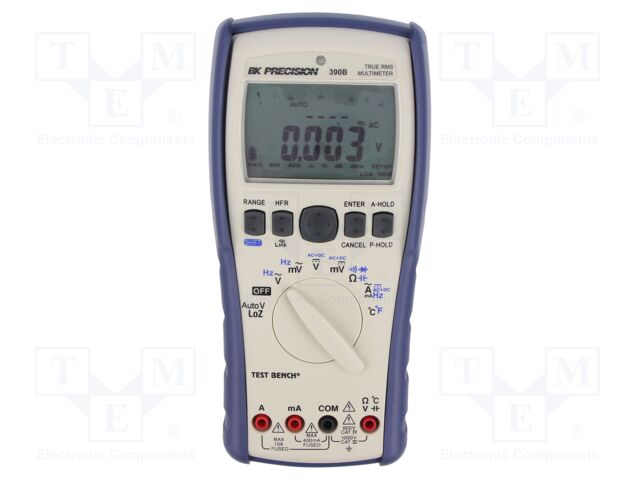

BK390B B&K PRECISION

Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,USB; LCD; (40000); 10x/s
Type of meter: digital multimeter
DC current measuring range: 40mA; 400mA; 4A; 10A
AC current measuring range: 40mA; 400mA; 4A; 10A
Measuring instrument features: AUTO HOLD; automatic AC/DC voltage selection (AutoV/LoZ); automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function
DC current measuring accuracy: ±(0.2% + 1 digit)
AC current measuring accuracy: ±(0.8% + 10 digit)
DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
DC voltage measuring accuracy: ±(0.03% + 1 digit)
AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
AC voltage measuring accuracy: ±(0.5% + 2 digit)
Resistance measuring accuracy: ±(0.2%+1 digit)
True effective value measurement: True RMS AC; True RMS AC+DC
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF
Frequency measuring range: 400Hz; 4kHz; 40kHz; 100kHz
Temperature measuring range: -200...1200°C
Power supply: battery AA 1,5V x4
Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Battery/ rechargeable battery: battery AA 1,5V x4
Continuity test: acoustic indication; <400Ω
Sampling: 10x/s
Bargraph: yes
Dimensions (W x H x D): 95x207x52mm
Diode test: 2V
Software: available on AppStore; available on Google Play
Display parameters: (40000)
Capacitance measuring accuracy: ±(0.9%+ 2 digit)
Operating temperature: -10...50°C
Kind of display used: LCD
Interface: Bluetooth; USB
Illumination: yes
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis |
---|---|
1+ | 640.25 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BK390B B&K PRECISION
Category: Portable digital multimeters, Description: Digital multimeter; Bluetooth,USB; LCD; (40000); 10x/s, Type of meter: digital multimeter, DC current measuring range: 40mA; 400mA; 4A; 10A, AC current measuring range: 40mA; 400mA; 4A; 10A, Measuring instrument features: AUTO HOLD; automatic AC/DC voltage selection (AutoV/LoZ); automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function, DC current measuring accuracy: ±(0.2% + 1 digit), AC current measuring accuracy: ±(0.8% + 10 digit), DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV, DC voltage measuring accuracy: ±(0.03% + 1 digit), AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV, AC voltage measuring accuracy: ±(0.5% + 2 digit), Resistance measuring accuracy: ±(0.2%+1 digit), True effective value measurement: True RMS AC; True RMS AC+DC, Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ, Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF, Frequency measuring range: 400Hz; 4kHz; 40kHz; 100kHz, Temperature measuring range: -200...1200°C, Power supply: battery AA 1,5V x4, Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Battery/ rechargeable battery: battery AA 1,5V x4, Continuity test: acoustic indication; .
Weitere Produktangebote BK390B nach Preis ab 626.01 EUR bis 640.25 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
![]() +3 |
BK390B | Hersteller : B&K PRECISION |
![]() Description: Digital multimeter; Bluetooth,USB; LCD; (40000); 10x/s Type of meter: digital multimeter DC current measuring range: 40mA; 400mA; 4A; 10A AC current measuring range: 40mA; 400mA; 4A; 10A Measuring instrument features: AUTO HOLD; automatic AC/DC voltage selection (AutoV/LoZ); automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function DC current measuring accuracy: ±(0.2% + 1 digit) AC current measuring accuracy: ±(0.8% + 10 digit) DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV DC voltage measuring accuracy: ±(0.03% + 1 digit) AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV AC voltage measuring accuracy: ±(0.5% + 2 digit) Resistance measuring accuracy: ±(0.2%+1 digit) True effective value measurement: True RMS AC; True RMS AC+DC Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF Frequency measuring range: 400Hz; 4kHz; 40kHz; 100kHz Temperature measuring range: -200...1200°C Power supply: battery AA 1,5V x4 Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010 Battery/ rechargeable battery: battery AA 1,5V x4 Continuity test: acoustic indication; <400Ω Sampling: 10x/s Bargraph: yes Dimensions (W x H x D): 95x207x52mm Diode test: 2V Software: available on AppStore; available on Google Play Display parameters: (40000) Capacitance measuring accuracy: ±(0.9%+ 2 digit) Operating temperature: -10...50°C Kind of display used: LCD Interface: Bluetooth; USB Illumination: yes Anzahl je Verpackung: 1 Stücke |
auf Bestellung 1 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||
![]() |
BK390B | Hersteller : B&K PRECISION |
![]() tariffCode: 90303100 Messwert Gleichspannung, max.: 1kV Messwert Wechselspannung, max.: 1kV Messwert Widerstand, max.: 40Mohm Messwert Gleichstrom, max.: 10A rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: TBA usEccn: 3A992.a Schritte: 40000 Herstellergewährleistung: 3 Jahre euEccn: NLR Anzahl der Stellen: 4.75 DMM-Messverfahren: Echteffektivwert DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Diode, Frequenz, Widerstand, Temperatur Produktpalette: - productTraceability: No Messwert Wechselstrom, max.: 10A Bereichswahl: Automatisch, manuell SVHC: No SVHC (07-Nov-2024) |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
