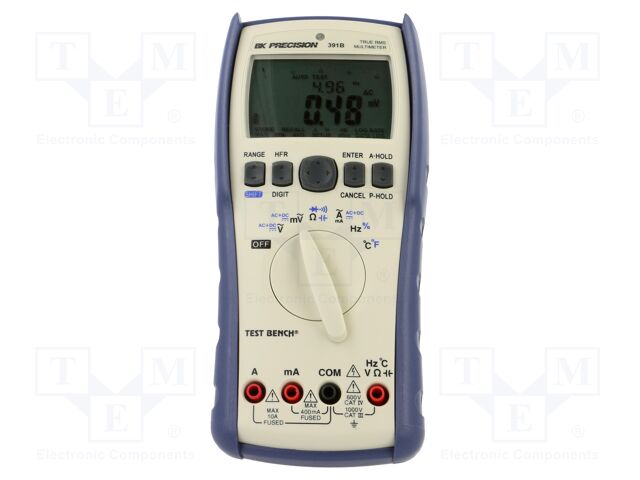

BK391B B&K PRECISION
Hersteller: B&K PRECISION
Description: B&K PRECISION - BK391B - DMM, TRAGBAR, 10A, 1KV, 40000 ZÄHLWERTE
tariffCode: 90303100
Messwert Gleichspannung, max.: 1kV
Messwert Wechselspannung, max.: 1kV
Messwert Widerstand, max.: 40Mohm
euEccn: NLR
Messwert Gleichstrom, max.: 10A
rohsCompliant: YES
hazardous: false
rohsPhthalatesCompliant: TBA
isCanonical: Y
Schritte: 40000
Herstellergewährleistung: 3 Jahre
SVHC: No SVHC (07-Nov-2024)
Anzahl der Stellen: 4.75
DMM-Messverfahren: Echteffektivwert
DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Diode, Frequenz, Widerstand, Temperatur
Produktpalette: -
productTraceability: No
usEccn: 3A992.a
Messwert Wechselstrom, max.: 10A
Bereichswahl: Automatisch, manuell
Produktrezensionen
Produktbewertung abgeben
Technische Details BK391B B&K PRECISION
Category: Portable digital multimeters, Description: Digital multimeter; USB; LCD; (40000); 3x/s; Temp: -200÷1200°C, Type of meter: digital multimeter, Kind of display used: LCD, Display parameters: (40000), Bargraph: yes, True effective value measurement: True RMS AC; True RMS AC+DC, DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV, DC voltage measuring accuracy: ±(0.03% + 20 digit), AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV, AC voltage measuring accuracy: ±(0.7% + 50 digit), DC current measuring range: 40mA; 400mA; 4A; 10A, DC current measuring accuracy: ±(0.2% + 40 digit), AC current measuring range: 40mA; 400mA; 4A; 10A, AC current measuring accuracy: ±(0.8% + 80 digit), Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ, Resistance measuring accuracy: ±(0.2%+30 digit), Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF, Capacitance measuring accuracy: ±(0.8%+ 20 digit), Frequency measuring range: 40Hz; 400Hz; 4kHz; 40kHz; 100kHz, Temperature measuring range: -200...1200°C, Diode test: 2V, Continuity test: acoustic indication; .
Weitere Produktangebote BK391B
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
    |
BK391B | B&K PRECISION |
Category: Portable digital multimeters Description: Digital multimeter; USB; LCD; (40000); 3x/s; Temp: -200÷1200°C Type of meter: digital multimeter Kind of display used: LCD Display parameters: (40000) Bargraph: yes True effective value measurement: True RMS AC; True RMS AC+DC DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV DC voltage measuring accuracy: ±(0.03% + 20 digit) AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV AC voltage measuring accuracy: ±(0.7% + 50 digit) DC current measuring range: 40mA; 400mA; 4A; 10A DC current measuring accuracy: ±(0.2% + 40 digit) AC current measuring range: 40mA; 400mA; 4A; 10A AC current measuring accuracy: ±(0.8% + 80 digit) Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ Resistance measuring accuracy: ±(0.2%+30 digit) Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF Capacitance measuring accuracy: ±(0.8%+ 20 digit) Frequency measuring range: 40Hz; 400Hz; 4kHz; 40kHz; 100kHz Temperature measuring range: -200...1200°C Diode test: 2V Continuity test: acoustic indication; <400Ω Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010 Power supply: battery AA 1,5V x4 Measuring instrument features: AUTO HOLD; automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable Battery/ rechargeable battery: battery AA 1,5V x4 Operating temperature: -10...50°C Sampling: 3x/s Interface: USB Dimensions (W x H x D): 95x207x52mm Illumination: yes |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| BK391B |
|
Hersteller: B&K PRECISION
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; (40000); 3x/s; Temp: -200÷1200°C
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (40000)
Bargraph: yes
True effective value measurement: True RMS AC; True RMS AC+DC
DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
DC voltage measuring accuracy: ±(0.03% + 20 digit)
AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
AC voltage measuring accuracy: ±(0.7% + 50 digit)
DC current measuring range: 40mA; 400mA; 4A; 10A
DC current measuring accuracy: ±(0.2% + 40 digit)
AC current measuring range: 40mA; 400mA; 4A; 10A
AC current measuring accuracy: ±(0.8% + 80 digit)
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Resistance measuring accuracy: ±(0.2%+30 digit)
Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF
Capacitance measuring accuracy: ±(0.8%+ 20 digit)
Frequency measuring range: 40Hz; 400Hz; 4kHz; 40kHz; 100kHz
Temperature measuring range: -200...1200°C
Diode test: 2V
Continuity test: acoustic indication; <400Ω
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Power supply: battery AA 1,5V x4
Measuring instrument features: AUTO HOLD; automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function
Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable
Battery/ rechargeable battery: battery AA 1,5V x4
Operating temperature: -10...50°C
Sampling: 3x/s
Interface: USB
Dimensions (W x H x D): 95x207x52mm
Illumination: yes
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; (40000); 3x/s; Temp: -200÷1200°C
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (40000)
Bargraph: yes
True effective value measurement: True RMS AC; True RMS AC+DC
DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
DC voltage measuring accuracy: ±(0.03% + 20 digit)
AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
AC voltage measuring accuracy: ±(0.7% + 50 digit)
DC current measuring range: 40mA; 400mA; 4A; 10A
DC current measuring accuracy: ±(0.2% + 40 digit)
AC current measuring range: 40mA; 400mA; 4A; 10A
AC current measuring accuracy: ±(0.8% + 80 digit)
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Resistance measuring accuracy: ±(0.2%+30 digit)
Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF
Capacitance measuring accuracy: ±(0.8%+ 20 digit)
Frequency measuring range: 40Hz; 400Hz; 4kHz; 40kHz; 100kHz
Temperature measuring range: -200...1200°C
Diode test: 2V
Continuity test: acoustic indication; <400Ω
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Power supply: battery AA 1,5V x4
Measuring instrument features: AUTO HOLD; automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function
Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable
Battery/ rechargeable battery: battery AA 1,5V x4
Operating temperature: -10...50°C
Sampling: 3x/s
Interface: USB
Dimensions (W x H x D): 95x207x52mm
Illumination: yes
