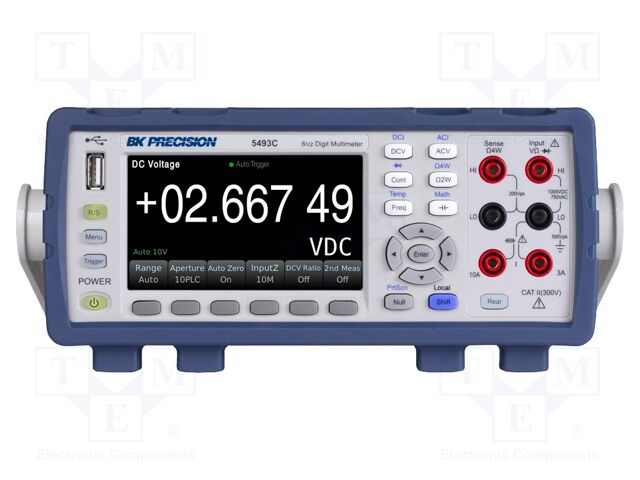

BK5493CGPIB B&K PRECISION
Hersteller: B&K PRECISIONCategory: Benchtop digital multimeters
Description: Benchtop multimeter; LCD 4,3"; 6,5 digit; True RMS AC; rack; 30VA
Power consumption: 30VA
Body dimensions: 225x100x355mm
Interface: GPIB; LAN; RS232; USB
Standard equipment: calibration certificate; fuse; mains cable; test leads; USB cable
Measuring instrument features: advanced triggering options; built-in math functions: Rel, Max/Min, dBm, dB, %, Hold, Limit Test; calendar; Histogram - graphical visualisation of measurement results; operates with thermocouple types: PT100; real time clock
Type of meter: benchtop multimeter
Continuity test: <1kΩ
True effective value measurement: True RMS AC
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Bandwidth for AC voltage measurements: 3...300kHz
AC current measuring range: 100µA; 1mA; 10mA; 100mA; 1A; 3A; 10A
Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Bandwidth for AC current measurements: 3...10kHz
DC current measuring range: 100µA; 1mA; 10mA; 100mA; 1A; 3A; 10A
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
AC voltage measuring range: 100mV; 1V; 10V; 100V; 750V
Frequency measuring range: 2...1MHz
Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF
Diode test: 1mA @5V
Display parameters: 6,5 digit
Capacitance measuring accuracy: ±(0.2%+ 0.05% range)
AC current measuring accuracy: ±(0.1% + 0.04% range)
DC voltage measuring accuracy: ±(0.0015% + 0.0004% range)
DC current measuring accuracy: ±(0.05% + 0.006% range)
AC voltage measuring accuracy: ±(0.04% + 0.02% range)
Resistance measuring accuracy: ±(0.002%+0.0005% range)
Mounting: rack
Kind of display used: LCD 4,3"
Supply voltage: 100...240V AC
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details BK5493CGPIB B&K PRECISION
Category: Benchtop digital multimeters, Description: Benchtop multimeter; LCD 4,3"; 6,5 digit; True RMS AC; rack; 30VA, Power consumption: 30VA, Body dimensions: 225x100x355mm, Interface: GPIB; LAN; RS232; USB, Standard equipment: calibration certificate; fuse; mains cable; test leads; USB cable, Measuring instrument features: advanced triggering options; built-in math functions: Rel, Max/Min, dBm, dB, %, Hold, Limit Test; calendar; Histogram - graphical visualisation of measurement results; operates with thermocouple types: PT100; real time clock, Type of meter: benchtop multimeter, Continuity test: .
