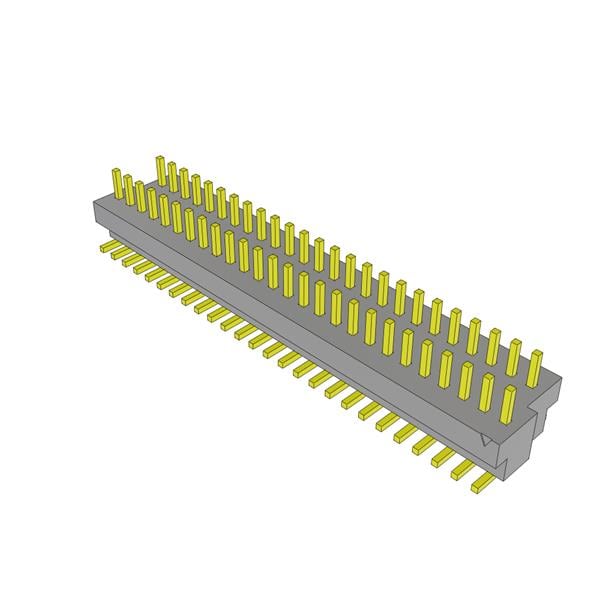

BKT-151-03-L-V-A Samtec Inc.
Hersteller: Samtec Inc.
Description: CONN HEADER SMD 51POS 1MM
Features: Board Guide
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.8A per Contact
Mounting Type: Surface Mount
Number of Positions: 51
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.098" (2.50mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.065" (1.65mm)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 14.52 EUR |
| 10+ | 13.42 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Mindestmenge:
2 Stücke
Produktrezensionen
Produktbewertung abgeben
Technische Details BKT-151-03-L-V-A Samtec Inc.
Description: CONN HEADER SMD 51POS 1MM, Features: Board Guide, Packaging: Tube, Connector Type: Header, Current Rating (Amps): 2.8A per Contact, Mounting Type: Surface Mount, Number of Positions: 51, Number of Rows: 2, Style: Board to Board, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.039" (1.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.098" (2.50mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.065" (1.65mm).
Weitere Produktangebote BKT-151-03-L-V-A nach Preis ab 12.7 EUR bis 17.67 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BKT-151-03-L-V-A | Samtec |
Headers & Wire Housings 1.00 mm Polarized Micro Terminal Strip |
auf Bestellung 35 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
 |
BKT-151-03-L-V-A | Samtec |
Conn Unshrouded Header HDR 51 POS 1mm Solder ST SMD Tube |
auf Bestellung 44 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||
| BKT-151-03-L-V-A | SAMTEC |
Category: Signal connectors - Unclassified Description: Connector: pin strips; PIN: 51; Plating: gold-plated; soldering Type of connector: pin strips Number of pins: 51 Contact plating: gold-plated Electrical mounting: soldering Spatial orientation: straight Contacts pitch: 1mm Operating temperature: -55...125°C Kind of connector: male Flammability rating: UL94V-0 Connector: pin header Row pitch: 2.54mm |
auf Bestellung 46 Stücke: Lieferzeit 14-21 Tag (e) |
Mindestbestellmenge: 13 Stücke Im Einkaufswagen Stück im Wert von UAH |
| BKT-151-03-L-V-A |
|
Hersteller: Samtec
Headers & Wire Housings 1.00 mm Polarized Micro Terminal Strip
Headers & Wire Housings 1.00 mm Polarized Micro Terminal Strip
auf Bestellung 35 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 14.89 EUR |
| 10+ | 14.72 EUR |
| 44+ | 12.7 EUR |
| BKT-151-03-L-V-A |
|
Hersteller: Samtec
Conn Unshrouded Header HDR 51 POS 1mm Solder ST SMD Tube
Conn Unshrouded Header HDR 51 POS 1mm Solder ST SMD Tube
auf Bestellung 44 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 22+ | 17.67 EUR |
| 44+ | 16.45 EUR |
| BKT-151-03-L-V-A |
|
Hersteller: SAMTEC
Category: Signal connectors - Unclassified
Description: Connector: pin strips; PIN: 51; Plating: gold-plated; soldering
Type of connector: pin strips
Number of pins: 51
Contact plating: gold-plated
Electrical mounting: soldering
Spatial orientation: straight
Contacts pitch: 1mm
Operating temperature: -55...125°C
Kind of connector: male
Flammability rating: UL94V-0
Connector: pin header
Row pitch: 2.54mm
Category: Signal connectors - Unclassified
Description: Connector: pin strips; PIN: 51; Plating: gold-plated; soldering
Type of connector: pin strips
Number of pins: 51
Contact plating: gold-plated
Electrical mounting: soldering
Spatial orientation: straight
Contacts pitch: 1mm
Operating temperature: -55...125°C
Kind of connector: male
Flammability rating: UL94V-0
Connector: pin header
Row pitch: 2.54mm
auf Bestellung 46 Stücke:
Lieferzeit 14-21 Tag (e)
