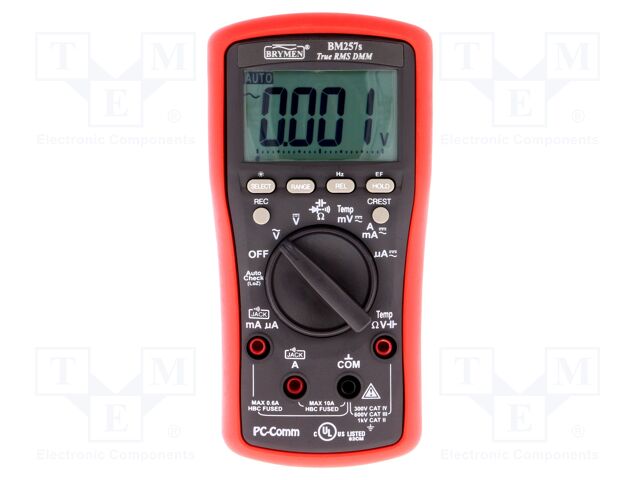

BM257S

Hersteller: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; (6000); Bargraph: 24segm.40x/s; 5x/s
Type of meter: digital multimeter
Interface: USB
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: (6000)
Bargraph: 24 segm. 40x/s
DC voltage measuring range: 0.01...60mV; 600mV; 6V; 60V; 1kV
DC voltage measuring accuracy: ±(0.2% + 3 digit)
AC voltage measuring range: 0.01...60mV; 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1% + 5 digit)
DC current measuring range: 0.1...600µA; 6mA; 60mA; 600mA; 6A; 8A
DC current measuring accuracy: ±(0.5% + 3 digit)
AC current measuring range: 0.1...600µA; 6mA; 60mA; 600mA; 6A; 8A
AC current measuring accuracy: ±(1% + 3 digit)
True effective value measurement: True RMS
Resistance measuring range: 100mΩ...600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 10pF...60nF; 600nF; 6µF; 60µF; 600µF; 3mF
Capacitance measuring accuracy: ±(1.5%+ 5 digit)
Frequency measuring range: 0.001...1kHz; 10kHz; 500kHz; 1MHz
Frequency measuring accuracy: ±(0.03%+3 digit)
Resistance measuring accuracy: ±(0.5%+4 digit)
Diode test: 1mA @1V
Continuity test: acoustic indication; 10Ω...80Ω
Weight with battery: 635g
Power supply: battery R03 AAA 1,5V x2
Standard equipment: holster; K-type temperature probe; test leads
Conform to the norm: CAT II 1000V; CAT III 600V; CAT IV 300V; EN 61010
Kind of output connector: USB A plug
Dimensions (W x H x D): 80x161x50mm
Measuring instrument features: auto and manual ranging; Autocheck function - automatic selection LoZ DCV, LoZ ACV, i Ω; automatic power-off; contactless voltage detector; CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms; HOLD function; indicates incorrect connection of test leads; logging of MAX, MIN; MIN/MAX/REL function
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Temperature measurement accuracy: ±(0.3°C + 3 digit)
Illumination: yes
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Pollution degree: 2
Temperature measuring range: -50...1000°C
Sampling: 5x/s
