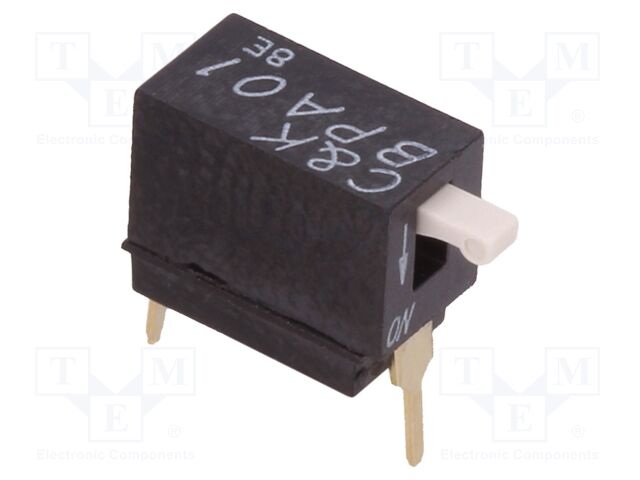

BPA01B C&K
Hersteller: C&K
Description: SWITCH PIANO DIP SPST 0.1A 5V
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 5VDC
Current Rating (Amps): 100mA
Mounting Type: Through Hole, Right Angle
Pitch: 0.100" (2.54mm), Full
Circuit: SPST
Operating Temperature: -20°C ~ 85°C
Termination Style: PC Pin
Actuator Type: Piano
Height Above Board: 0.287" (7.30mm)
Actuator Level: Raised
Washable: Yes
Contact Material: Beryllium Copper
Number of Positions: 1
Description: SWITCH PIANO DIP SPST 0.1A 5V
Packaging: Tube
Contact Finish: Gold
Voltage Rating: 5VDC
Current Rating (Amps): 100mA
Mounting Type: Through Hole, Right Angle
Pitch: 0.100" (2.54mm), Full
Circuit: SPST
Operating Temperature: -20°C ~ 85°C
Termination Style: PC Pin
Actuator Type: Piano
Height Above Board: 0.287" (7.30mm)
Actuator Level: Raised
Washable: Yes
Contact Material: Beryllium Copper
Number of Positions: 1
auf Bestellung 5708 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
7+ | 2.78 EUR |
10+ | 2.71 EUR |
25+ | 2.47 EUR |
100+ | 2.14 EUR |
300+ | 1.94 EUR |
500+ | 1.81 EUR |
1000+ | 1.68 EUR |
2500+ | 1.52 EUR |
5000+ | 1.41 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BPA01B C&K
Category: Dip-Switches, Description: Switch: DIP-SWITCH; Poles number: 1; OFF-ON; 0.025A/24VDC; Pos: 2, Operating temperature: -20...85°C, Min. insulation resistance: 0.1GΩ, Mounting: THT, Type of switch: DIP-SWITCH, Contacts configuration: SPST, DC contacts rating @R: 0.025A / 24V DC, Switching method: OFF-ON, Stable positions number: 2, Overall length: 4.48mm, Switches features: "piano" long actuator, Row pitch: 7.6mm, Number of positions: 2, Terminal pitch: 2.54mm, Body dimensions: 6x8.15x4.48mm, Electrical life: 1000 cycles, Poles number: 1, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote BPA01B nach Preis ab 1.59 EUR bis 4.46 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BPA01B | Hersteller : C&K | DIP Switches/SIP Switches SPST 0.1A 24VDC 1POS SIDE ACTUATED DIP SW |
auf Bestellung 1071 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||
BPA01B | Hersteller : C&K |
Category: Dip-Switches Description: Switch: DIP-SWITCH; Poles number: 1; OFF-ON; 0.025A/24VDC; Pos: 2 Operating temperature: -20...85°C Min. insulation resistance: 0.1GΩ Mounting: THT Type of switch: DIP-SWITCH Contacts configuration: SPST DC contacts rating @R: 0.025A / 24V DC Switching method: OFF-ON Stable positions number: 2 Overall length: 4.48mm Switches features: "piano" long actuator Row pitch: 7.6mm Number of positions: 2 Terminal pitch: 2.54mm Body dimensions: 6x8.15x4.48mm Electrical life: 1000 cycles Poles number: 1 Anzahl je Verpackung: 1 Stücke |
auf Bestellung 16 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||||||||
BPA01B | Hersteller : C&K |
Category: Dip-Switches Description: Switch: DIP-SWITCH; Poles number: 1; OFF-ON; 0.025A/24VDC; Pos: 2 Operating temperature: -20...85°C Min. insulation resistance: 0.1GΩ Mounting: THT Type of switch: DIP-SWITCH Contacts configuration: SPST DC contacts rating @R: 0.025A / 24V DC Switching method: OFF-ON Stable positions number: 2 Overall length: 4.48mm Switches features: "piano" long actuator Row pitch: 7.6mm Number of positions: 2 Terminal pitch: 2.54mm Body dimensions: 6x8.15x4.48mm Electrical life: 1000 cycles Poles number: 1 |
auf Bestellung 16 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||
BPA01B | Hersteller : C&K COMPONENTS |
Description: C&K COMPONENTS - BPA01B - DIP-/SIP-Schalter, 1 Schaltkreis(e), Klaviertaste, Durchsteckmontage, SPST, 5 V, 100 mA tariffCode: 85365019 Schalterbetätiger: Klaviertaste Schaltertyp: DIP nicht gekapselt rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES usEccn: EAR99 DC-Kontaktspannung, max.: 5V euEccn: NLR DC-Kontaktstrom, max.: 100mA Schaltermontage: Durchsteckmontage Produktpalette: BPA Series productTraceability: No Anzahl der Schaltkreise: 1Circuits Kontaktkonfiguration: SPST SVHC: No SVHC (10-Jun-2022) |
auf Bestellung 1029 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||
BPA01B | Hersteller : C&K | Switch DIP OFF ON SPST 1 Piano 0.1A 24VDC PC Pins 1000Cycles Thru-Hole Tube |
auf Bestellung 3974 Stücke: Lieferzeit 14-21 Tag (e) |
