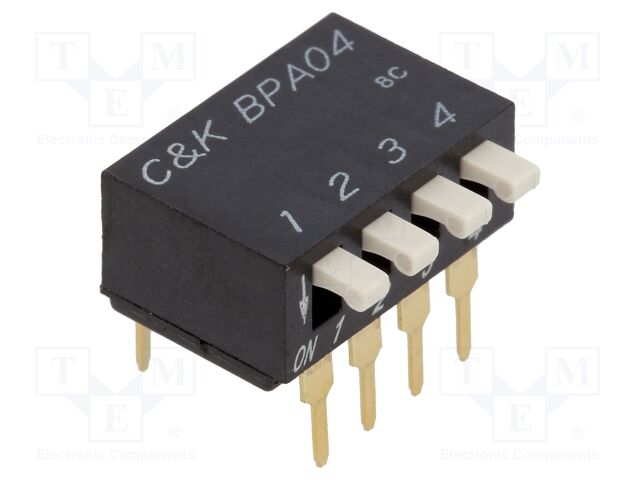

BPA04B C&K
Hersteller: C&K
Category: Dip-Switches
Description: Switch: DIP-SWITCH; Poles number: 4; OFF-ON; 0.025A/24VDC; Pos: 2
Type of switch: DIP-SWITCH
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 2
Switching method: OFF-ON
DC contacts rating @R: 25mA / 24V DC
Min. insulation resistance: 0.1GΩ
Mounting: THT
Operating temperature: -20...85°C
Switches features: "piano" long actuator
Terminal pitch: 2.54mm
Row pitch: 7.6mm
Overall length: 12.1mm
Body dimensions: 6x8.15x12.1mm
Poles number: 4
Electrical life: 1000 cycles
| Anzahl | Preis |
|---|---|
| 26+ | 2.8 EUR |
| 30+ | 2.46 EUR |
| 31+ | 2.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BPA04B C&K
Category: Dip-Switches, Description: Switch: DIP-SWITCH; Poles number: 4; OFF-ON; 0.025A/24VDC; Pos: 2, Type of switch: DIP-SWITCH, Contacts configuration: SPST, Number of positions: 2, Stable positions number: 2, Switching method: OFF-ON, DC contacts rating @R: 25mA / 24V DC, Min. insulation resistance: 0.1GΩ, Mounting: THT, Operating temperature: -20...85°C, Switches features: "piano" long actuator, Terminal pitch: 2.54mm, Row pitch: 7.6mm, Overall length: 12.1mm, Body dimensions: 6x8.15x12.1mm, Poles number: 4, Electrical life: 1000 cycles.
Weitere Produktangebote BPA04B nach Preis ab 2.65 EUR bis 5.07 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BPA04B | Hersteller : C&K |
DIP Switches/SIP Switches SIDE ACT 4 POS |
auf Bestellung 8754 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||||
 |
BPA04B | Hersteller : C&K |
Description: SWITCH PIANO DIP SPST 0.1A 5V Packaging: Tube Contact Finish: Gold Voltage Rating: 5VDC Current Rating (Amps): 100mA Mounting Type: Through Hole, Right Angle Pitch: 0.100" (2.54mm), Full Circuit: SPST Operating Temperature: -20°C ~ 85°C Termination Style: PC Pin Actuator Type: Piano Height Above Board: 0.287" (7.30mm) Actuator Level: Raised Washable: Yes Contact Material: Beryllium Copper Part Status: Active Number of Positions: 4 |
auf Bestellung 16845 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||||||
 |
BPA04B | Hersteller : C&K COMPONENTS |
Description: C&K COMPONENTS - BPA04B - DIP-/SIP-Schalter, 4 Schaltkreis(e), Klaviertaste, Durchsteckmontage, SPST, 5 V, 100 mA tariffCode: 85365011 Schalterbetätiger: Klaviertaste rohsCompliant: YES Schaltertyp: DIP nicht gekapselt hazardous: false rohsPhthalatesCompliant: YES isCanonical: Y usEccn: EAR99 DC-Kontaktspannung, max.: 5V euEccn: NLR DC-Kontaktstrom, max.: 100mA Schaltermontage: Durchsteckmontage Produktpalette: BPA Series productTraceability: No Anzahl der Schaltkreise: 4Schaltkreis(e) Kontaktkonfiguration: SPST |
auf Bestellung 145 Stücke: Lieferzeit 14-21 Tag (e) |
