Produkte > BRIDGELUX > BXRC-30G4000-D-73
BXRC-30G4000-D-73
  • BXRC-30G4000-D-73
  • BXRC-30G4000-D-73

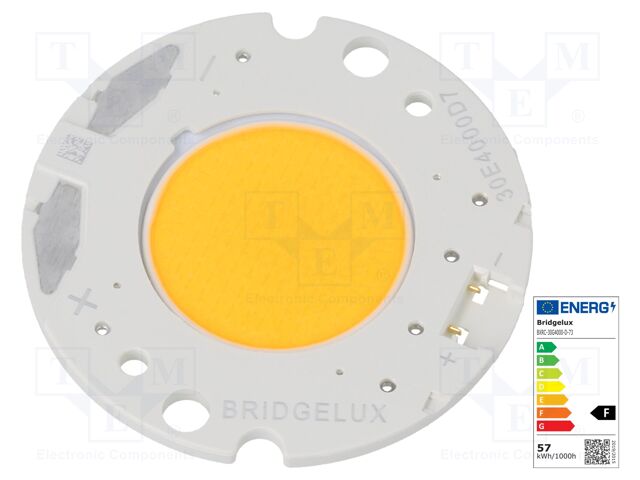

BXRC-30G4000-D-73 BRIDGELUX

pVersion=0046&contRep=ZT&docId=005056AB82531ED99EE0F55CA0DFD820&compId=BXRC-27E4000-B-73.pdf?ci_sign=1e8ff828eac5c3050b1290e6fd49c7d964357ae6 Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 29.5W; 3000K; 3641lm; 120°; CRImin: 90; Front: flat
Type of diode: power LED
LED version: COB
Power: 29.5W
Colour temperature: 3000K
Luminosity: 3641lm
Min. colour rendering index: 90
Front: flat
LED current: 1.05A
Dimensions: Ø36.2mm
Operating voltage: 28.1V DC
Binning: 3-STEP
Light source efficiency: 123lm/W
Manufacturer series: VERO® 18
Viewing angle: 120°
Shape: round
Thermal resistance: 0.16K/W
Storage temperature: -40...105°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 18 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
6+13.26 EUR
8+9.38 EUR
9+8.87 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details BXRC-30G4000-D-73 BRIDGELUX

Description: LED COB VERO 18 WM WH RND 3000K, Packaging: Tray, Features: With Connector, Color: White, Warm, Size / Dimension: 36.20mm Dia, Type: Chip On Board (COB), Configuration: Round, Voltage - Forward (Vf) (Typ): 28.3V, Height: 1.90mm, Current - Test: 1.05A, Lens Type: Flat, Current - Max: 2.1A, Lumens/Watt @ Current - Test: 118 lm/W, CCT (K): 3000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 90, Light Emitting Surface (LES): 18.40mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 3513lm (Typ), Part Status: Active.

Weitere Produktangebote BXRC-30G4000-D-73 nach Preis ab 8.87 EUR bis 15.54 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
BXRC-30G4000-D-73
+1
 		BXRC-30G4000-D-73 Hersteller : BRIDGELUX pVersion=0046&contRep=ZT&docId=005056AB82531ED99EE0F55CA0DFD820&compId=BXRC-27E4000-B-73.pdf?ci_sign=1e8ff828eac5c3050b1290e6fd49c7d964357ae6 Category: White power LEDs - COB
Description: Power LED; COB; 29.5W; 3000K; 3641lm; 120°; CRImin: 90; Front: flat
Type of diode: power LED
LED version: COB
Power: 29.5W
Colour temperature: 3000K
Luminosity: 3641lm
Min. colour rendering index: 90
Front: flat
LED current: 1.05A
Dimensions: Ø36.2mm
Operating voltage: 28.1V DC
Binning: 3-STEP
Light source efficiency: 123lm/W
Manufacturer series: VERO® 18
Viewing angle: 120°
Shape: round
Thermal resistance: 0.16K/W
Storage temperature: -40...105°C
auf Bestellung 18 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
6+13.26 EUR
8+9.38 EUR
9+8.87 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
BXRC-30G4000-D-73 BXRC-30G4000-D-73 Hersteller : Bridgelux Bridgelux%20DS92%20Vero%2018%20Gen%207%20Array%20Data%20Sheet%2020181105%20Rev%20N.pdf Description: LED COB VERO 18 WM WH RND 3000K
Packaging: Tray
Features: With Connector
Color: White, Warm
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 28.3V
Height: 1.90mm
Current - Test: 1.05A
Lens Type: Flat
Current - Max: 2.1A
Lumens/Watt @ Current - Test: 118 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 18.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 3513lm (Typ)
Part Status: Active
auf Bestellung 169 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+15.54 EUR
50+14.98 EUR
100+13.87 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
