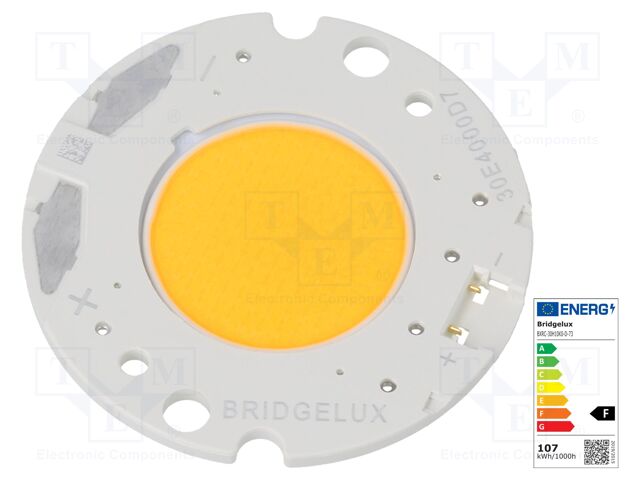

BXRC-30H10K0-D-73 Bridgelux
Hersteller: Bridgelux
Description: LED COB VERO 29 WM WH RND 3000K
Packaging: Tube
Color: White, Warm
Size / Dimension: 49.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 37.6V
Height: 1.90mm
Current - Test: 2.1A
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 4.2A
Lumens/Watt @ Current - Test: 118 lm/W
CCT (K): 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 97 (Typ)
Light Emitting Surface (LES): 29.20mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 9353lm (Typ)
Part Status: Active
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRC-30H10K0-D-73 Bridgelux
Description: LED COB VERO 29 WM WH RND 3000K, Packaging: Tube, Color: White, Warm, Size / Dimension: 49.20mm Dia, Type: Chip On Board (COB), Configuration: Round, Voltage - Forward (Vf) (Typ): 37.6V, Height: 1.90mm, Current - Test: 2.1A, Viewing Angle: 120°, Lens Type: Flat, Current - Max: 4.2A, Lumens/Watt @ Current - Test: 118 lm/W, CCT (K): 3000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 97 (Typ), Light Emitting Surface (LES): 29.20mm Dia, Temperature - Test: 25°C, Luminous Flux @ Current/Temperature: 9353lm (Typ), Part Status: Active.
Weitere Produktangebote BXRC-30H10K0-D-73
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
  |
BXRC-30H10K0-D-73 | BRIDGELUX |
Category: White power LEDs - COB Description: Power LED; COB; 76.9W; 3000K; 8418lm; 120°; Front: flat; 2100mA Operating voltage: 36.6V DC LED current: 2100mA Luminosity: 8418lm Front: flat Storage temperature: -40...105°C Thermal resistance: 0.06K/W Manufacturer series: VERO® 29 Shape: round Viewing angle: 120° Type of diode: power LED Binning: 3-STEP Colour temperature: 3000K Min. colour rendering index: 97 Dimensions: Ø49.2mm Power: 76.9W LED version: COB Light source efficiency: 110lm/W |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 100 Stücke Im Einkaufswagen Stück im Wert von UAH |
| BXRC-30H10K0-D-73 |
|
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 76.9W; 3000K; 8418lm; 120°; Front: flat; 2100mA
Operating voltage: 36.6V DC
LED current: 2100mA
Luminosity: 8418lm
Front: flat
Storage temperature: -40...105°C
Thermal resistance: 0.06K/W
Manufacturer series: VERO® 29
Shape: round
Viewing angle: 120°
Type of diode: power LED
Binning: 3-STEP
Colour temperature: 3000K
Min. colour rendering index: 97
Dimensions: Ø49.2mm
Power: 76.9W
LED version: COB
Light source efficiency: 110lm/W
Category: White power LEDs - COB
Description: Power LED; COB; 76.9W; 3000K; 8418lm; 120°; Front: flat; 2100mA
Operating voltage: 36.6V DC
LED current: 2100mA
Luminosity: 8418lm
Front: flat
Storage temperature: -40...105°C
Thermal resistance: 0.06K/W
Manufacturer series: VERO® 29
Shape: round
Viewing angle: 120°
Type of diode: power LED
Binning: 3-STEP
Colour temperature: 3000K
Min. colour rendering index: 97
Dimensions: Ø49.2mm
Power: 76.9W
LED version: COB
Light source efficiency: 110lm/W
Produkt ist nicht verfügbar
Mindestbestellmenge: 100 Stücke
Im Einkaufswagen
Stück im Wert von UAH
