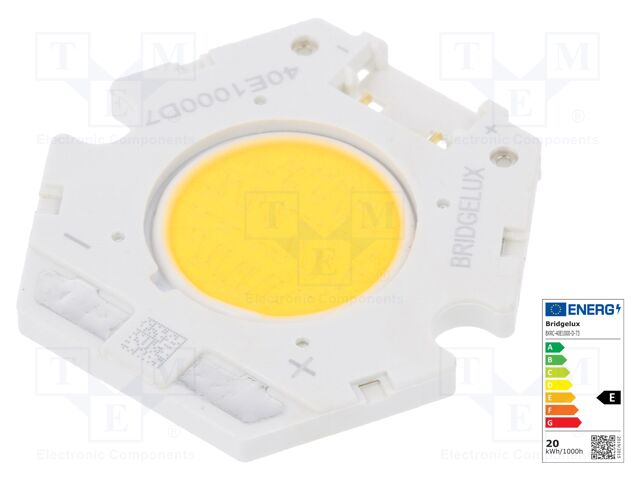

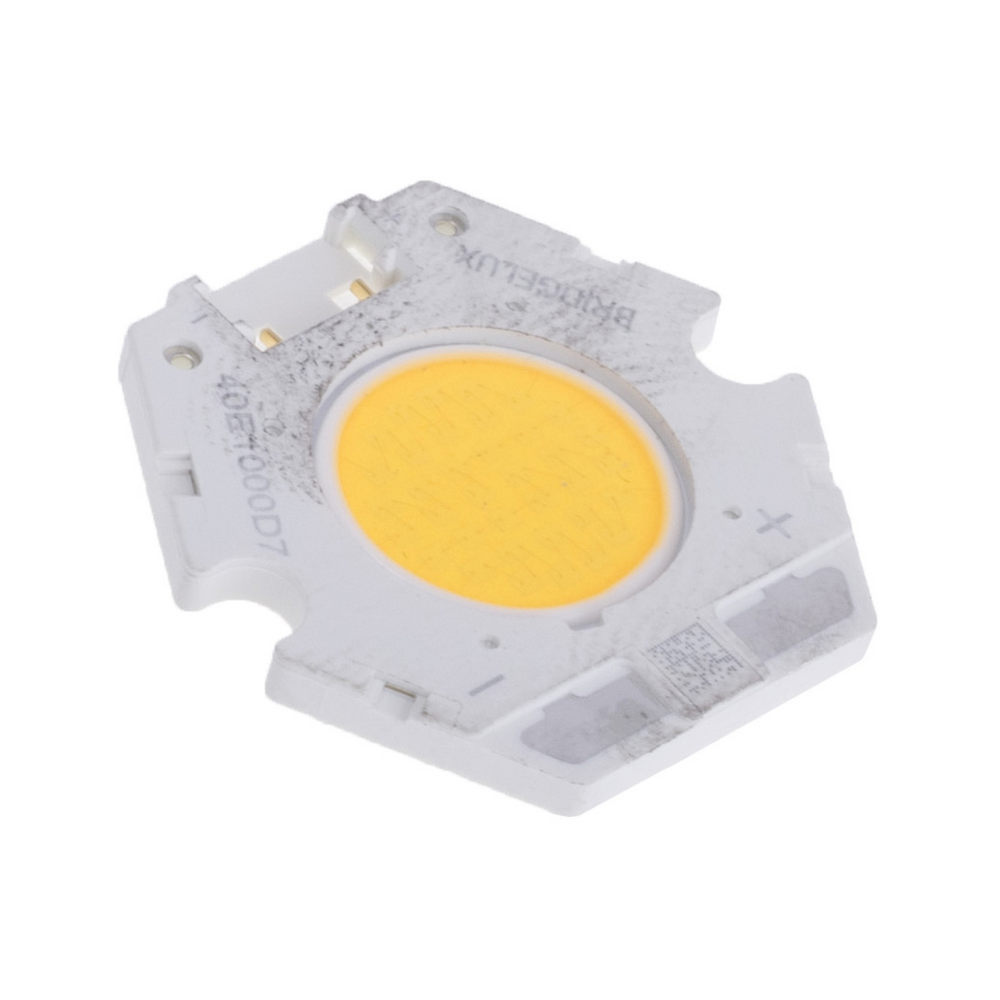

BXRC-40E1000-D-73 BRIDGELUX
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 120°; 350mA; P: 8.8W; 1316lm; CRImin: 80; 150lm/W
Type of diode: power LED
Manufacturer series: VERO® 10
Operating voltage: 25V DC
Number of pins: 4
Connector series: Pico-EZMate
Thermal resistance: 0.49K/W
LED current: 350mA
Viewing angle: 120°
Luminosity: 1316lm
Colour temperature: 4000K
LED version: COB
Light source efficiency: 150lm/W
Storage temperature: -40...105°C
Min. colour rendering index: 80
Front: flat
Binning: 3-STEP
Power: 8.8W
Anzahl je Verpackung: 1 Stücke
Category: White power LEDs - COB
Description: Power LED; COB; 120°; 350mA; P: 8.8W; 1316lm; CRImin: 80; 150lm/W
Type of diode: power LED
Manufacturer series: VERO® 10
Operating voltage: 25V DC
Number of pins: 4
Connector series: Pico-EZMate
Thermal resistance: 0.49K/W
LED current: 350mA
Viewing angle: 120°
Luminosity: 1316lm
Colour temperature: 4000K
LED version: COB
Light source efficiency: 150lm/W
Storage temperature: -40...105°C
Min. colour rendering index: 80
Front: flat
Binning: 3-STEP
Power: 8.8W
Anzahl je Verpackung: 1 Stücke
auf Bestellung 39 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
13+ | 5.56 EUR |
21+ | 3.47 EUR |
22+ | 3.29 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRC-40E1000-D-73 BRIDGELUX
Description: LED COB VERO WHT STARBOARD 4000K, Features: With Connector, Packaging: Tray, Color: White, Neutral, Size / Dimension: 20.00mm Dia, Type: Chip On Board (COB), Configuration: Starboard, Voltage - Forward (Vf) (Typ): 26V, Height: 1.90mm, Current - Test: 350mA, Viewing Angle: 120°, Lens Type: Flat, Current - Max: 700mA, Lumens/Watt @ Current - Test: 161 lm/W, CCT (K): 4000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 80, Light Emitting Surface (LES): 9.90mm Dia, Temperature - Test: 25°C, Luminous Flux @ Current/Temperature: 1462lm (Typ), Part Status: Active.
Weitere Produktangebote BXRC-40E1000-D-73 nach Preis ab 3.29 EUR bis 5.56 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
+1 |
BXRC-40E1000-D-73 | Hersteller : BRIDGELUX |
Category: White power LEDs - COB Description: Power LED; COB; 120°; 350mA; P: 8.8W; 1316lm; CRImin: 80; 150lm/W Type of diode: power LED Manufacturer series: VERO® 10 Operating voltage: 25V DC Number of pins: 4 Connector series: Pico-EZMate Thermal resistance: 0.49K/W LED current: 350mA Viewing angle: 120° Luminosity: 1316lm Colour temperature: 4000K LED version: COB Light source efficiency: 150lm/W Storage temperature: -40...105°C Min. colour rendering index: 80 Front: flat Binning: 3-STEP Power: 8.8W |
auf Bestellung 39 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
BXRC-40E1000-D-73 | Hersteller : Bridgelux |
Description: LED COB VERO WHT STARBOARD 4000K Features: With Connector Packaging: Tray Color: White, Neutral Size / Dimension: 20.00mm Dia Type: Chip On Board (COB) Configuration: Starboard Voltage - Forward (Vf) (Typ): 26V Height: 1.90mm Current - Test: 350mA Viewing Angle: 120° Lens Type: Flat Current - Max: 700mA Lumens/Watt @ Current - Test: 161 lm/W CCT (K): 4000K 3-Step MacAdam Ellipse CRI (Color Rendering Index): 80 Light Emitting Surface (LES): 9.90mm Dia Temperature - Test: 25°C Luminous Flux @ Current/Temperature: 1462lm (Typ) Part Status: Active |
auf Bestellung 231 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||
