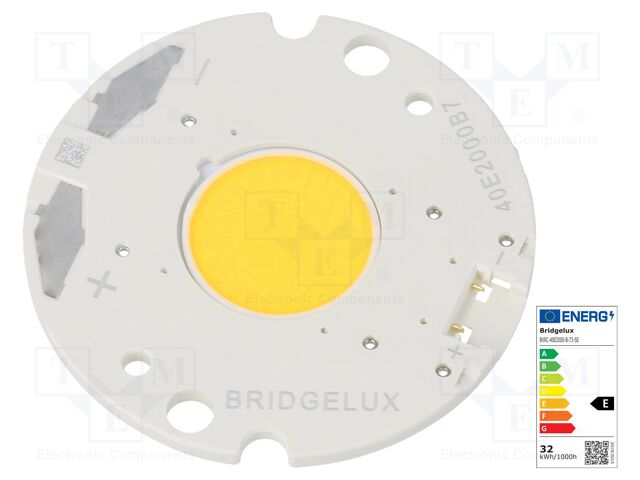

BXRC-40E2000-B-73 BRIDGELUX
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 15.3W; 4000K; 2337lm; 120°; Front: flat; Ø36.2mm
Power: 15.3W
Manufacturer series: VERO® 13
LED version: COB
Light source efficiency: 153lm/W
Operating voltage: 33.9V DC
LED current: 450mA
Luminosity: 2337lm
Front: flat
Storage temperature: -40...105°C
Thermal resistance: 0.28K/W
Shape: round
Viewing angle: 120°
Type of diode: power LED
Binning: 3-STEP
Colour temperature: 4000K
Min. colour rendering index: 80
Dimensions: Ø36.2mm
| Anzahl | Privatkunde |
|---|---|
| 10+ | 8.73 EUR |
| 11+ | 8.27 EUR |
| 25+ | 7.59 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRC-40E2000-B-73 BRIDGELUX
Description: LED COB VERO 13 WHT RND 4000K, Features: With Connector, Packaging: Tray, Color: White, Neutral, Size / Dimension: 36.20mm Dia, Type: Chip On Board (COB), Configuration: Round, Voltage - Forward (Vf) (Typ): 34.1V, Height: 1.90mm, Current - Test: 450mA, Lens Type: Flat, Current - Max: 900mA, Lumens/Watt @ Current - Test: 148 lm/W, CCT (K): 4000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 80, Light Emitting Surface (LES): 13.20mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 2265lm (Typ), Part Status: Active.
Weitere Produktangebote BXRC-40E2000-B-73 nach Preis ab 7.08 EUR bis 11.02 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
BXRC-40E2000-B-73 | Bridgelux |
Description: LED COB VERO 13 WHT RND 4000K Features: With Connector Packaging: Tray Color: White, Neutral Size / Dimension: 36.20mm Dia Type: Chip On Board (COB) Configuration: Round Voltage - Forward (Vf) (Typ): 34.1V Height: 1.90mm Current - Test: 450mA Lens Type: Flat Current - Max: 900mA Lumens/Watt @ Current - Test: 148 lm/W CCT (K): 4000K 3-Step MacAdam Ellipse CRI (Color Rendering Index): 80 Light Emitting Surface (LES): 13.20mm Dia Temperature - Test: 85°C Luminous Flux @ Current/Temperature: 2265lm (Typ) Part Status: Active |
auf Bestellung 15 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||
| BXRC-40E2000-B-73 | Bridgelux, Inc. |
LED Uni-Color White 4-Pin Tray |
auf Bestellung 90 Stücke: Lieferzeit 14-21 Tag (e) |
|
| BXRC-40E2000-B-73 |
|
Hersteller: Bridgelux
Description: LED COB VERO 13 WHT RND 4000K
Features: With Connector
Packaging: Tray
Color: White, Neutral
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 1.90mm
Current - Test: 450mA
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 148 lm/W
CCT (K): 4000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2265lm (Typ)
Part Status: Active
Description: LED COB VERO 13 WHT RND 4000K
Features: With Connector
Packaging: Tray
Color: White, Neutral
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 34.1V
Height: 1.90mm
Current - Test: 450mA
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 148 lm/W
CCT (K): 4000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 13.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2265lm (Typ)
Part Status: Active
auf Bestellung 15 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 11.02 EUR |
| BXRC-40E2000-B-73 |
|
Hersteller: Bridgelux, Inc.
LED Uni-Color White 4-Pin Tray
LED Uni-Color White 4-Pin Tray
auf Bestellung 90 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 19+ | 9.35 EUR |
| 24+ | 7.08 EUR |
