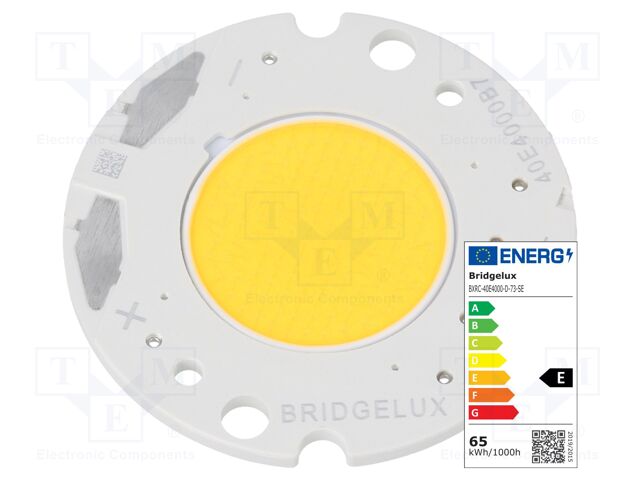

BXRC-40E4000-D-73 BRIDGELUX
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 29.5W; 4000K; 4545lm; 120°; Front: flat; Ø36.2mm
Type of diode: power LED
LED version: COB
Power: 29.5W
Colour temperature: 4000K
Luminosity: 4545lm
Viewing angle: 120°
Front: flat
Dimensions: Ø36.2mm
Min. colour rendering index: 80
LED current: 1.05A
Operating voltage: 28.1V DC
Manufacturer series: VERO® 18
Binning: 3-STEP
Thermal resistance: 0.16K/W
Light source efficiency: 154lm/W
Storage temperature: -40...105°C
Shape: round
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRC-40E4000-D-73 BRIDGELUX
Description: LED COB VERO 18 WHT RND 4000K, Features: With Connector, Packaging: Tray, Color: White, Neutral, Size / Dimension: 36.20mm Dia, Type: Chip On Board (COB), Configuration: Round, Voltage - Forward (Vf) (Typ): 28.1V, Height: 1.90mm, Current - Test: 1.05A, Lens Type: Flat, Current - Max: 2.1A, Lumens/Watt @ Current - Test: 154 lm/W, CCT (K): 4000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 80, Light Emitting Surface (LES): 18.40mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 4545lm (Typ), Part Status: Active.
Weitere Produktangebote BXRC-40E4000-D-73 nach Preis ab 15.11 EUR bis 16.92 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| BXRC-40E4000-D-73 | Bridgelux |
Description: LED COB VERO 18 WHT RND 4000K Features: With Connector Packaging: Tray Color: White, Neutral Size / Dimension: 36.20mm Dia Type: Chip On Board (COB) Configuration: Round Voltage - Forward (Vf) (Typ): 28.1V Height: 1.90mm Current - Test: 1.05A Lens Type: Flat Current - Max: 2.1A Lumens/Watt @ Current - Test: 154 lm/W CCT (K): 4000K 3-Step MacAdam Ellipse CRI (Color Rendering Index): 80 Light Emitting Surface (LES): 18.40mm Dia Temperature - Test: 85°C Luminous Flux @ Current/Temperature: 4545lm (Typ) Part Status: Active |
auf Bestellung 546 Stücke: Lieferzeit 10-14 Tag (e) |
|
| BXRC-40E4000-D-73 |
Hersteller: Bridgelux
Description: LED COB VERO 18 WHT RND 4000K
Features: With Connector
Packaging: Tray
Color: White, Neutral
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 28.1V
Height: 1.90mm
Current - Test: 1.05A
Lens Type: Flat
Current - Max: 2.1A
Lumens/Watt @ Current - Test: 154 lm/W
CCT (K): 4000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 18.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 4545lm (Typ)
Part Status: Active
Description: LED COB VERO 18 WHT RND 4000K
Features: With Connector
Packaging: Tray
Color: White, Neutral
Size / Dimension: 36.20mm Dia
Type: Chip On Board (COB)
Configuration: Round
Voltage - Forward (Vf) (Typ): 28.1V
Height: 1.90mm
Current - Test: 1.05A
Lens Type: Flat
Current - Max: 2.1A
Lumens/Watt @ Current - Test: 154 lm/W
CCT (K): 4000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 18.40mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 4545lm (Typ)
Part Status: Active
auf Bestellung 546 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 16.92 EUR |
| 50+ | 16.31 EUR |
| 100+ | 15.11 EUR |
