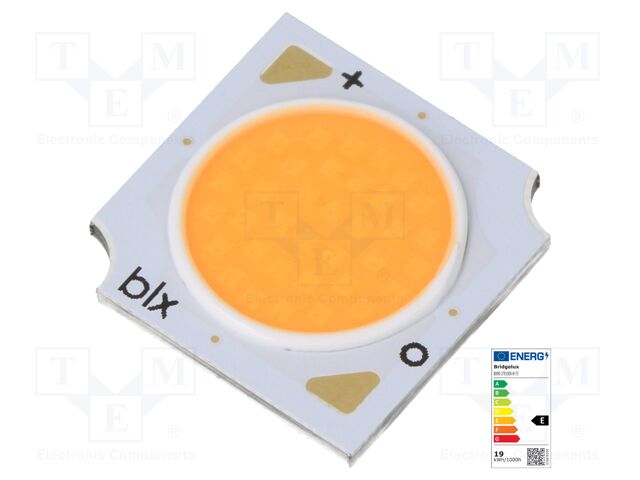

BXRE-27E1000-B-73 BRIDGELUX
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 9.1W; 2700K; 1254lm; 120°; Front: flat; CRImin: 80
Power: 9.1W
Manufacturer series: V10
Storage temperature: -40...105°C
Dimensions: 13.5x13.5x1.7mm
LED current: 270mA
Thermal resistance: 0.49K/W
Operating voltage: 33.8V DC
Min. colour rendering index: 80
Viewing angle: 120°
Light source efficiency: 137lm/W
Luminosity: 1254lm
Colour temperature: 2700K
Binning: 3-STEP
LED version: COB
Front: flat
Type of diode: power LED
| Anzahl | Privatkunde |
|---|---|
| 30+ | 2.86 EUR |
| 34+ | 2.55 EUR |
| 37+ | 2.33 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRE-27E1000-B-73 BRIDGELUX
Description: LED COB V10 WARM WHT SQU 2700K, Packaging: Tray, Color: White, Warm, Size / Dimension: 13.50mm L x 13.50mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 34V, Height: 1.70mm, Current - Test: 270mA, Lens Type: Flat, Current - Max: 540mA, Lumens/Watt @ Current - Test: 132 lm/W, CCT (K): 2700K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 80, Light Emitting Surface (LES): 10.20mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 1214lm (Typ).
Weitere Produktangebote BXRE-27E1000-B-73
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
BXRE-27E1000-B-73 | Bridgelux |
Description: LED COB V10 WARM WHT SQU 2700K Packaging: Tray Color: White, Warm Size / Dimension: 13.50mm L x 13.50mm W Type: Chip On Board (COB) Configuration: Square Voltage - Forward (Vf) (Typ): 34V Height: 1.70mm Current - Test: 270mA Lens Type: Flat Current - Max: 540mA Lumens/Watt @ Current - Test: 132 lm/W CCT (K): 2700K 3-Step MacAdam Ellipse CRI (Color Rendering Index): 80 Light Emitting Surface (LES): 10.20mm Dia Temperature - Test: 85°C Luminous Flux @ Current/Temperature: 1214lm (Typ) |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 595 Stücke Im Einkaufswagen Stück im Wert von UAH |
| BXRE-27E1000-B-73 |
|
Hersteller: Bridgelux
Description: LED COB V10 WARM WHT SQU 2700K
Packaging: Tray
Color: White, Warm
Size / Dimension: 13.50mm L x 13.50mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 34V
Height: 1.70mm
Current - Test: 270mA
Lens Type: Flat
Current - Max: 540mA
Lumens/Watt @ Current - Test: 132 lm/W
CCT (K): 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 10.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1214lm (Typ)
Description: LED COB V10 WARM WHT SQU 2700K
Packaging: Tray
Color: White, Warm
Size / Dimension: 13.50mm L x 13.50mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 34V
Height: 1.70mm
Current - Test: 270mA
Lens Type: Flat
Current - Max: 540mA
Lumens/Watt @ Current - Test: 132 lm/W
CCT (K): 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 10.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1214lm (Typ)
Produkt ist nicht verfügbar
Mindestbestellmenge: 595 Stücke
