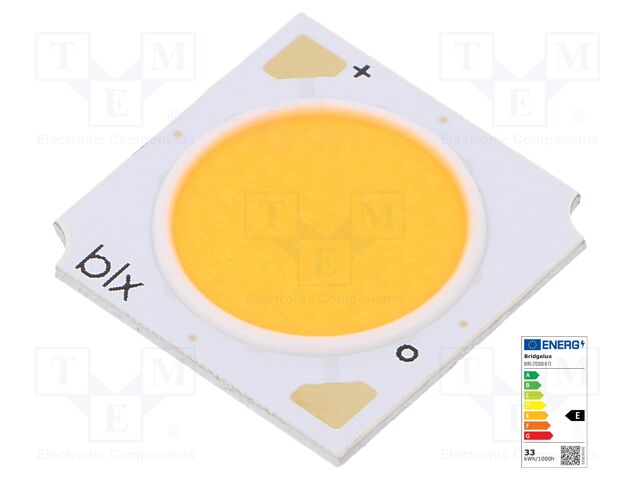

BXRE-27E2000-B-73 BRIDGELUX
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 15.3W; 2700K; 2160lm; 120°; Front: flat; 450mA; V13
Colour temperature: 2700K
Thermal resistance: 0.28K/W
Manufacturer series: V13
Viewing angle: 120°
Type of diode: power LED
Binning: 3-STEP
Min. colour rendering index: 80
Dimensions: 19x19x1.7mm
Power: 15.3W
LED version: COB
Light source efficiency: 142lm/W
Operating voltage: 33.9V DC
LED current: 450mA
Luminosity: 2160lm
Front: flat
Storage temperature: -40...105°C
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRE-27E2000-B-73 BRIDGELUX
Description: LED COB V13 WARM WHT SQU 2700K, Packaging: Tube, Color: White, Warm, Size / Dimension: 19.00mm L x 19.00mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 33.9V, Height: 1.70mm, Current - Test: 450mA, Viewing Angle: 120°, Lens Type: Flat, Current - Max: 900mA, Lumens/Watt @ Current - Test: 142 lm/W, CCT (K): 2700K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 80, Light Emitting Surface (LES): 14.00mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 2160lm (Typ), Part Status: Active.
Weitere Produktangebote BXRE-27E2000-B-73 nach Preis ab 6.74 EUR bis 7.08 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BXRE-27E2000-B-73 | Bridgelux |
Description: LED COB V13 WARM WHT SQU 2700K Packaging: Tube Color: White, Warm Size / Dimension: 19.00mm L x 19.00mm W Type: Chip On Board (COB) Configuration: Square Voltage - Forward (Vf) (Typ): 33.9V Height: 1.70mm Current - Test: 450mA Viewing Angle: 120° Lens Type: Flat Current - Max: 900mA Lumens/Watt @ Current - Test: 142 lm/W CCT (K): 2700K 3-Step MacAdam Ellipse CRI (Color Rendering Index): 80 Light Emitting Surface (LES): 14.00mm Dia Temperature - Test: 85°C Luminous Flux @ Current/Temperature: 2160lm (Typ) Part Status: Active |
auf Bestellung 485 Stücke: Lieferzeit 10-14 Tag (e) |
|
| BXRE-27E2000-B-73 |
|
Hersteller: Bridgelux
Description: LED COB V13 WARM WHT SQU 2700K
Packaging: Tube
Color: White, Warm
Size / Dimension: 19.00mm L x 19.00mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 33.9V
Height: 1.70mm
Current - Test: 450mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 142 lm/W
CCT (K): 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 14.00mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2160lm (Typ)
Part Status: Active
Description: LED COB V13 WARM WHT SQU 2700K
Packaging: Tube
Color: White, Warm
Size / Dimension: 19.00mm L x 19.00mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 33.9V
Height: 1.70mm
Current - Test: 450mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 900mA
Lumens/Watt @ Current - Test: 142 lm/W
CCT (K): 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 14.00mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 2160lm (Typ)
Part Status: Active
auf Bestellung 485 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 7.08 EUR |
| 50+ | 6.83 EUR |
| 100+ | 6.74 EUR |
