Produkte > BRIDGELUX > BXRE-27E4000-B-83

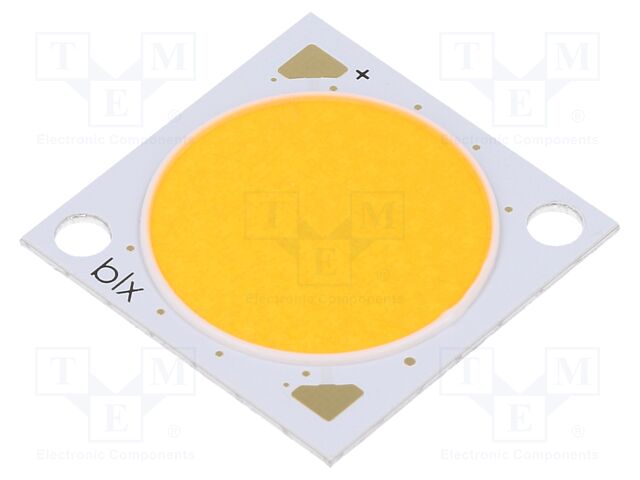

BXRE-27E4000-B-83
BXRE-27E4000-B-83
BXRE-27E4000-B-83BXRE-27E4000-B-83

BXRE-27E4000-B-83 BRIDGELUX

Bridgelux%20DS415%20V18%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 23.2W; 2700K; 3625lm; 120°; Front: flat; 700mA; V18
Colour temperature: 2700K
Thermal resistance: 0.14K/W
Manufacturer series: V18
Viewing angle: 120°
Type of diode: power LED
Binning: 3SDCM
Min. colour rendering index: 80
Dimensions: 24x24x1.65mm
Power: 23.2W
LED version: COB
Light source efficiency: 156lm/W
Operating voltage: 33.1V DC
LED current: 700mA
Luminosity: 3625lm
Front: flat
Storage temperature: -40...105°C
auf Bestellung 6 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details BXRE-27E4000-B-83 BRIDGELUX

Description: V18B WARM WHITE LED ARRAY, Packaging: Tube, Color: White, Warm, Size / Dimension: 24.00mm L x 24.00mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 33.9V, Height: 1.65mm, Current - Test: 700mA, Viewing Angle: 120°, Lens Type: Flat, Current - Max: 2A, Lumens/Watt @ Current - Test: 170 lm/W, CCT (K): 2700K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 80, Light Emitting Surface (LES): 19.60mm Dia, Temperature - Test: 25°C, Luminous Flux @ Current/Temperature: 4028lm (Typ).

Weitere Produktangebote BXRE-27E4000-B-83

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit Privatkunde
BXRE-27E4000-B-83 Bridgelux Bridgelux%20DS415%20V18%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf Description: V18B WARM WHITE LED ARRAY
Packaging: Tube
Color: White, Warm
Size / Dimension: 24.00mm L x 24.00mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 33.9V
Height: 1.65mm
Current - Test: 700mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 2A
Lumens/Watt @ Current - Test: 170 lm/W
CCT (K): 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 19.60mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 4028lm (Typ)
Produkt ist nicht verfügbar
 Mindestbestellmenge: 600 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
BXRE-27E4000-B-83 Bridgelux%20DS415%20V18%20Gen%208%20Array%20Data%20Sheet%2020200622%20Rev%20A.pdf
Hersteller: Bridgelux
Description: V18B WARM WHITE LED ARRAY
Packaging: Tube
Color: White, Warm
Size / Dimension: 24.00mm L x 24.00mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 33.9V
Height: 1.65mm
Current - Test: 700mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 2A
Lumens/Watt @ Current - Test: 170 lm/W
CCT (K): 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 19.60mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 4028lm (Typ)
Produkt ist nicht verfügbar
Mindestbestellmenge: 600 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
