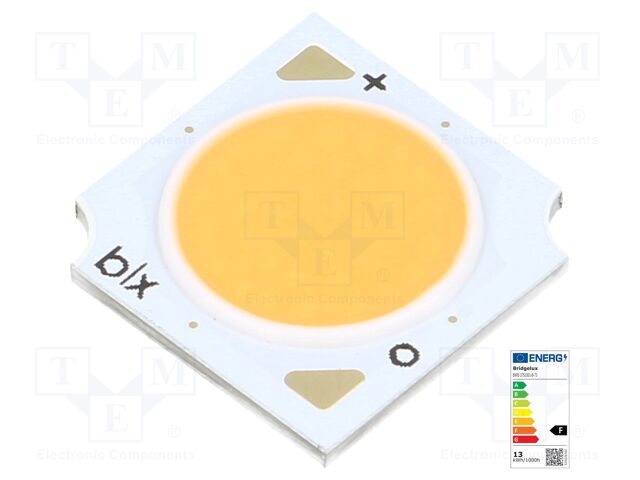

BXRE-27S1001-B-73 BRIDGELUX
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 9.3W; 2700K; 1003lm; 120°; Front: flat; CRImin: 95
Type of diode: power LED
LED version: COB
Power: 9.3W
Colour temperature: 2700K
Luminosity: 1003lm
Viewing angle: 120°
Front: flat
Dimensions: 13.5x13.5x1.7mm
Min. colour rendering index: 95
LED current: 270mA
Operating voltage: 32.2...37.4V DC
Manufacturer series: Thrive
Binning: 3-STEP
Thermal resistance: 0.49K/W
Light source efficiency: 108lm/W
Storage temperature: -40...105°C
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRE-27S1001-B-73 BRIDGELUX
Description: LED COB V10 THRIVE WHT SQ 2700K, Packaging: Tube, Color: White, Warm, Size / Dimension: 13.50mm L x 13.50mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 33.7V, Height: 1.70mm, Current - Test: 270mA, Viewing Angle: 120°, Lens Type: Flat, Current - Max: 540mA, Lumens/Watt @ Current - Test: 99 lm/W, CCT (K): 2700K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 95, Light Emitting Surface (LES): 10.20mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 903lm (Typ), Part Status: Active.
Weitere Produktangebote BXRE-27S1001-B-73 nach Preis ab 4.64 EUR bis 5.19 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BXRE-27S1001-B-73 | Bridgelux |
Description: LED COB V10 THRIVE WHT SQ 2700K Packaging: Tube Color: White, Warm Size / Dimension: 13.50mm L x 13.50mm W Type: Chip On Board (COB) Configuration: Square Voltage - Forward (Vf) (Typ): 33.7V Height: 1.70mm Current - Test: 270mA Viewing Angle: 120° Lens Type: Flat Current - Max: 540mA Lumens/Watt @ Current - Test: 99 lm/W CCT (K): 2700K 3-Step MacAdam Ellipse CRI (Color Rendering Index): 95 Light Emitting Surface (LES): 10.20mm Dia Temperature - Test: 85°C Luminous Flux @ Current/Temperature: 903lm (Typ) Part Status: Active |
auf Bestellung 1563 Stücke: Lieferzeit 10-14 Tag (e) |
|
| BXRE-27S1001-B-73 |
|
Hersteller: Bridgelux
Description: LED COB V10 THRIVE WHT SQ 2700K
Packaging: Tube
Color: White, Warm
Size / Dimension: 13.50mm L x 13.50mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 33.7V
Height: 1.70mm
Current - Test: 270mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 540mA
Lumens/Watt @ Current - Test: 99 lm/W
CCT (K): 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 95
Light Emitting Surface (LES): 10.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 903lm (Typ)
Part Status: Active
Description: LED COB V10 THRIVE WHT SQ 2700K
Packaging: Tube
Color: White, Warm
Size / Dimension: 13.50mm L x 13.50mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 33.7V
Height: 1.70mm
Current - Test: 270mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 540mA
Lumens/Watt @ Current - Test: 99 lm/W
CCT (K): 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 95
Light Emitting Surface (LES): 10.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 903lm (Typ)
Part Status: Active
auf Bestellung 1563 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 5+ | 5.19 EUR |
| 50+ | 5.02 EUR |
| 100+ | 4.64 EUR |
