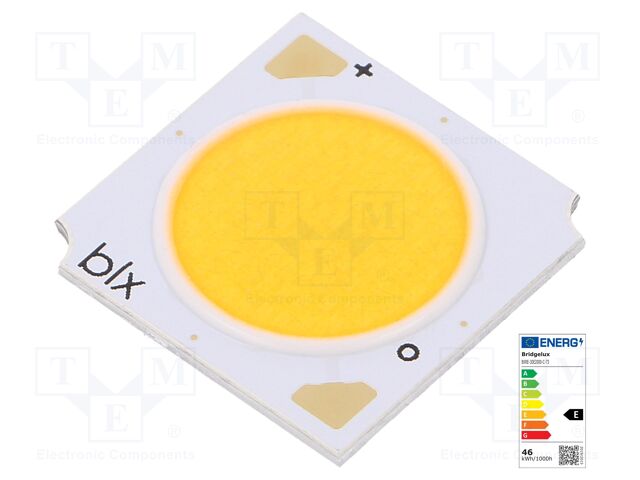

BXRE-30E2000-C-73 BRIDGELUX
Hersteller: BRIDGELUXCategory: White power LEDs - COB
Description: Power LED; COB; 120°; 630mA; P: 21.4W; 3146lm; 19x19x1.7mm; 147lm/W
Type of diode: power LED
LED version: COB
Front: flat
Thermal resistance: 0.2K/W
LED current: 630mA
Viewing angle: 120°
Luminosity: 3146lm
Colour temperature: 3000K
Light source efficiency: 147lm/W
Dimensions: 19x19x1.7mm
Storage temperature: -40...105°C
Manufacturer series: V13
Min. colour rendering index: 80
Binning: 3-STEP
Power: 21.4W
Operating voltage: 33.9V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 23.84 EUR |
| 4+ | 17.88 EUR |
| 9+ | 7.95 EUR |
| 25+ | 4.92 EUR |
| 100+ | 4.86 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRE-30E2000-C-73 BRIDGELUX
Description: LED COB V13 WM WH SQUARE 3000K, Packaging: Tray, Color: White, Warm, Size / Dimension: 19.00mm L x 19.00mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 33.9V, Height: 1.70mm, Current - Test: 630mA, Lens Type: Flat, Current - Max: 1.26A, Lumens/Watt @ Current - Test: 143 lm/W, CCT (K): 3000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 80, Light Emitting Surface (LES): 14.00mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 3048lm (Typ), Part Status: Active.
Weitere Produktangebote BXRE-30E2000-C-73 nach Preis ab 6.82 EUR bis 23.84 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
+1 |
BXRE-30E2000-C-73 | Hersteller : BRIDGELUX |
Category: White power LEDs - COB Description: Power LED; COB; 120°; 630mA; P: 21.4W; 3146lm; 19x19x1.7mm; 147lm/W Type of diode: power LED LED version: COB Front: flat Thermal resistance: 0.2K/W LED current: 630mA Viewing angle: 120° Luminosity: 3146lm Colour temperature: 3000K Light source efficiency: 147lm/W Dimensions: 19x19x1.7mm Storage temperature: -40...105°C Manufacturer series: V13 Min. colour rendering index: 80 Binning: 3-STEP Power: 21.4W Operating voltage: 33.9V DC |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||
 |
BXRE-30E2000-C-73 | Hersteller : Bridgelux |
Description: LED COB V13 WM WH SQUARE 3000K Packaging: Tray Color: White, Warm Size / Dimension: 19.00mm L x 19.00mm W Type: Chip On Board (COB) Configuration: Square Voltage - Forward (Vf) (Typ): 33.9V Height: 1.70mm Current - Test: 630mA Lens Type: Flat Current - Max: 1.26A Lumens/Watt @ Current - Test: 143 lm/W CCT (K): 3000K 3-Step MacAdam Ellipse CRI (Color Rendering Index): 80 Light Emitting Surface (LES): 14.00mm Dia Temperature - Test: 85°C Luminous Flux @ Current/Temperature: 3048lm (Typ) Part Status: Active |
auf Bestellung 621 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||
 |
BXRE-30E2000-C-73 | Hersteller : Bridgelux, Inc. |
LED Modules Uni-Color White 2-Pin Tube |
Produkt ist nicht verfügbar |
