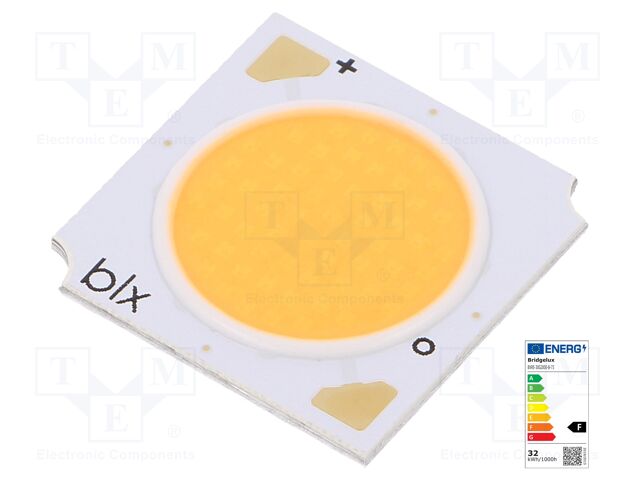

BXRE-30G2000-B-73 BRIDGELUX
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 15.3W; 3000K; 1870lm; 120°; Front: flat; 19x19x1.7mm
Operating voltage: 33.9V DC
Luminosity: 1870lm
Min. colour rendering index: 90
Light source efficiency: 123lm/W
Viewing angle: 120°
Binning: 3-STEP
Colour temperature: 3000K
LED version: COB
Front: flat
Type of diode: power LED
Manufacturer series: V13
Storage temperature: -40...105°C
Dimensions: 19x19x1.7mm
Thermal resistance: 0.28K/W
LED current: 450mA
Power: 15.3W
| Anzahl | Preis |
|---|---|
| 14+ | 5.42 EUR |
| 15+ | 4.88 EUR |
| 25+ | 4.48 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRE-30G2000-B-73 BRIDGELUX
Description: LED COB V13 WM WH SQUARE 3000K, Packaging: Tube, Color: White, Warm, Size / Dimension: 19.00mm L x 19.00mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 33.9V, Height: 1.70mm, Current - Test: 450mA, Lens Type: Flat, Current - Max: 900mA, Lumens/Watt @ Current - Test: 118 lm/W, CCT (K): 3000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 90, Light Emitting Surface (LES): 14.00mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 1807lm (Typ), Part Status: Active.
Weitere Produktangebote BXRE-30G2000-B-73
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
BXRE-30G2000-B-73 | Hersteller : Bridgelux |
Description: LED COB V13 WM WH SQUARE 3000K Packaging: Tube Color: White, Warm Size / Dimension: 19.00mm L x 19.00mm W Type: Chip On Board (COB) Configuration: Square Voltage - Forward (Vf) (Typ): 33.9V Height: 1.70mm Current - Test: 450mA Lens Type: Flat Current - Max: 900mA Lumens/Watt @ Current - Test: 118 lm/W CCT (K): 3000K 3-Step MacAdam Ellipse CRI (Color Rendering Index): 90 Light Emitting Surface (LES): 14.00mm Dia Temperature - Test: 85°C Luminous Flux @ Current/Temperature: 1807lm (Typ) Part Status: Active |
Produkt ist nicht verfügbar |
