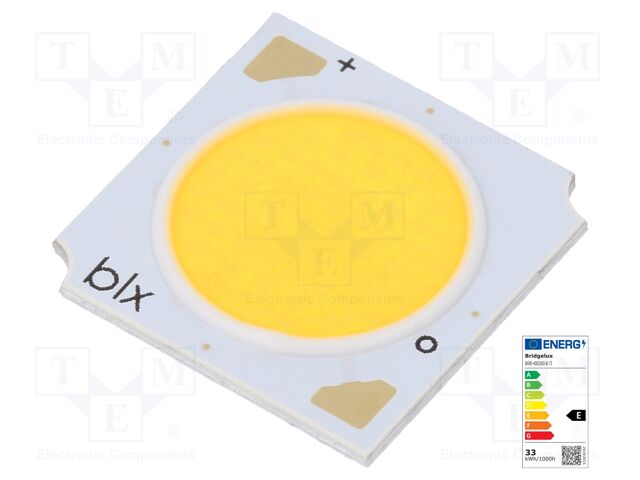

BXRE-40E2000-B-73 BRIDGELUX
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 15.3W; 4000K; 2334lm; 120°; Front: flat; 19x19x1.7mm
Operating voltage: 33.9V DC
Luminosity: 2334lm
Min. colour rendering index: 80
Light source efficiency: 153lm/W
Viewing angle: 120°
Binning: 3-STEP
Colour temperature: 4000K
LED version: COB
Front: flat
Type of diode: power LED
Manufacturer series: V13
Storage temperature: -40...105°C
Dimensions: 19x19x1.7mm
Thermal resistance: 0.28K/W
LED current: 450mA
Power: 15.3W
| Anzahl | Privatkunde |
|---|---|
| 12+ | 7.18 EUR |
| 14+ | 6.49 EUR |
| 25+ | 5.81 EUR |
| 100+ | 5.46 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRE-40E2000-B-73 BRIDGELUX
Description: LED COB V13 NEUT WHT SQU 4000K, Part Status: Active, Luminous Flux @ Current/Temperature: 2334lm (Typ), Temperature - Test: 85°C, Light Emitting Surface (LES): 14.00mm Dia, CRI (Color Rendering Index): 80, CCT (K): 4000K 3-Step MacAdam Ellipse, Lumens/Watt @ Current - Test: 153 lm/W, Current - Max: 900mA, Lens Type: Flat, Viewing Angle: 120°, Current - Test: 450mA, Height: 1.70mm, Voltage - Forward (Vf) (Typ): 33.9V, Configuration: Square, Type: Chip On Board (COB), Size / Dimension: 19.00mm L x 19.00mm W, Color: White, Neutral, Packaging: Tube.
Weitere Produktangebote BXRE-40E2000-B-73 nach Preis ab 6.34 EUR bis 16.52 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BXRE-40E2000-B-73 | Bridgelux |
Description: LED COB V13 NEUT WHT SQU 4000K Part Status: Active Luminous Flux @ Current/Temperature: 2334lm (Typ) Temperature - Test: 85°C Light Emitting Surface (LES): 14.00mm Dia CRI (Color Rendering Index): 80 CCT (K): 4000K 3-Step MacAdam Ellipse Lumens/Watt @ Current - Test: 153 lm/W Current - Max: 900mA Lens Type: Flat Viewing Angle: 120° Current - Test: 450mA Height: 1.70mm Voltage - Forward (Vf) (Typ): 33.9V Configuration: Square Type: Chip On Board (COB) Size / Dimension: 19.00mm L x 19.00mm W Color: White, Neutral Packaging: Tube |
auf Bestellung 280 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
| BXRE-40E2000-B-73 | Bridgelux |
COB high power LED; white; dimensions: 19x19x1,7mm; luminosity: 2334lm; colour temperature: 4000K Viewing angle: 120°; current: 450mA, voltage: 33,9V, power: 15,3W BXRE-40E2000-B-73 Bridgelux OLB.BXRE-40E2000-B-73 Anzahl je Verpackung: 5 Stücke |
auf Bestellung 25 Stücke: Lieferzeit 7-14 Tag (e) |
|
| BXRE-40E2000-B-73 |
|
Hersteller: Bridgelux
Description: LED COB V13 NEUT WHT SQU 4000K
Part Status: Active
Luminous Flux @ Current/Temperature: 2334lm (Typ)
Temperature - Test: 85°C
Light Emitting Surface (LES): 14.00mm Dia
CRI (Color Rendering Index): 80
CCT (K): 4000K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test: 153 lm/W
Current - Max: 900mA
Lens Type: Flat
Viewing Angle: 120°
Current - Test: 450mA
Height: 1.70mm
Voltage - Forward (Vf) (Typ): 33.9V
Configuration: Square
Type: Chip On Board (COB)
Size / Dimension: 19.00mm L x 19.00mm W
Color: White, Neutral
Packaging: Tube
Description: LED COB V13 NEUT WHT SQU 4000K
Part Status: Active
Luminous Flux @ Current/Temperature: 2334lm (Typ)
Temperature - Test: 85°C
Light Emitting Surface (LES): 14.00mm Dia
CRI (Color Rendering Index): 80
CCT (K): 4000K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test: 153 lm/W
Current - Max: 900mA
Lens Type: Flat
Viewing Angle: 120°
Current - Test: 450mA
Height: 1.70mm
Voltage - Forward (Vf) (Typ): 33.9V
Configuration: Square
Type: Chip On Board (COB)
Size / Dimension: 19.00mm L x 19.00mm W
Color: White, Neutral
Packaging: Tube
auf Bestellung 280 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 7.1 EUR |
| 50+ | 6.85 EUR |
| 100+ | 6.34 EUR |
| BXRE-40E2000-B-73 |
|
Hersteller: Bridgelux
COB high power LED; white; dimensions: 19x19x1,7mm; luminosity: 2334lm; colour temperature: 4000K Viewing angle: 120°; current: 450mA, voltage: 33,9V, power: 15,3W BXRE-40E2000-B-73 Bridgelux OLB.BXRE-40E2000-B-73
Anzahl je Verpackung: 5 Stücke
COB high power LED; white; dimensions: 19x19x1,7mm; luminosity: 2334lm; colour temperature: 4000K Viewing angle: 120°; current: 450mA, voltage: 33,9V, power: 15,3W BXRE-40E2000-B-73 Bridgelux OLB.BXRE-40E2000-B-73
Anzahl je Verpackung: 5 Stücke
auf Bestellung 25 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 5+ | 16.52 EUR |
