Produkte > BRIDGELUX > BXRE-40E2000-C-73
BXRE-40E2000-C-73
  • BXRE-40E2000-C-73
  • BXRE-40E2000-C-73

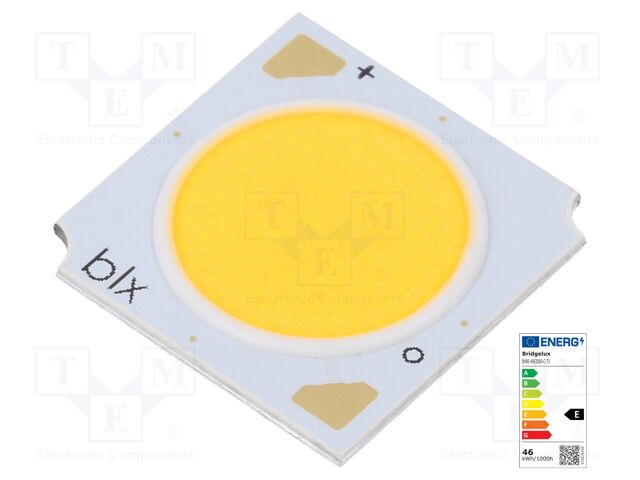

BXRE-40E2000-C-73 BRIDGELUX

pVersion=0046&contRep=ZT&docId=005056AB82531ED99EE0DD67AD02F820&compId=BXRE-27E2000-B-73.pdf?ci_sign=26b184a0af6a5f98fae7a96c5e9ba0c9569ea6d2 Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 21.4W; 4000K; 3267lm; 120°; CRImin: 80; Front: flat
Type of diode: power LED
LED version: COB
Power: 21.4W
Colour temperature: 4000K
Luminosity: 3267lm
Viewing angle: 120°
Min. colour rendering index: 80
Front: flat
LED current: 630mA
Dimensions: 19x19x1.7mm
Operating voltage: 33.9V DC
Manufacturer series: V13
Binning: 3-STEP
Thermal resistance: 0.2K/W
Light source efficiency: 153lm/W
Storage temperature: -40...105°C
auf Bestellung 49 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
11+6.51 EUR
13+5.52 EUR
25+4.88 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details BXRE-40E2000-C-73 BRIDGELUX

Description: LED COB V13 NEUT WHT SQU 4000K, Packaging: Tube, Color: White, Neutral, Size / Dimension: 19.00mm L x 19.00mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 33.9V, Height: 1.70mm, Current - Test: 630mA, Lens Type: Flat, Current - Max: 1.26A, Lumens/Watt @ Current - Test: 148 lm/W, CCT (K): 4000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 80, Light Emitting Surface (LES): 14.00mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 3170lm (Typ), Part Status: Active.

Weitere Produktangebote BXRE-40E2000-C-73 nach Preis ab 8.03 EUR bis 8.03 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
BXRE-40E2000-C-73 BXRE-40E2000-C-73 Hersteller : Bridgelux Bridgelux%20DS101%20V13%20Gen%207%20Array%20Datasheet%2020181101%20Rev%20M.pdf Description: LED COB V13 NEUT WHT SQU 4000K
Packaging: Tube
Color: White, Neutral
Size / Dimension: 19.00mm L x 19.00mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 33.9V
Height: 1.70mm
Current - Test: 630mA
Lens Type: Flat
Current - Max: 1.26A
Lumens/Watt @ Current - Test: 148 lm/W
CCT (K): 4000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 14.00mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 3170lm (Typ)
Part Status: Active
auf Bestellung 7 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+8.03 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
BXRE-40E2000-C-73 BXRE-40E2000-C-73 Hersteller : Bridgelux, Inc. ds10120gen20720v1320array20data20sheet202019093020rev20n.pdf LED Modules Uni-Color White 2-Pin Tube
