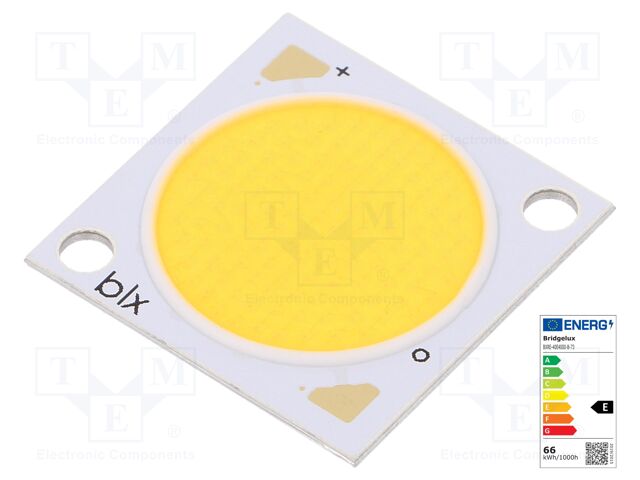

BXRE-40E4000-B-73 Bridgelux
Hersteller: Bridgelux
Description: LED COB V18 NEUT WHT SQU 4000K
Packaging: Tube
Color: White, Neutral
Size / Dimension: 24.00mm L x 24.00mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 34V
Height: 1.70mm
Current - Test: 900mA
Lens Type: Flat
Current - Max: 1.8A
Lumens/Watt @ Current - Test: 148 lm/W
CCT (K): 4000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 80
Light Emitting Surface (LES): 19.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 4528lm (Typ)
Part Status: Active
| Anzahl | Preis |
|---|---|
| 2+ | 11.69 EUR |
| 50+ | 11.25 EUR |
| 100+ | 10.42 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRE-40E4000-B-73 Bridgelux
Description: LED COB V18 NEUT WHT SQU 4000K, Packaging: Tube, Color: White, Neutral, Size / Dimension: 24.00mm L x 24.00mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 34V, Height: 1.70mm, Current - Test: 900mA, Lens Type: Flat, Current - Max: 1.8A, Lumens/Watt @ Current - Test: 148 lm/W, CCT (K): 4000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 80, Light Emitting Surface (LES): 19.20mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 4528lm (Typ), Part Status: Active.
Weitere Produktangebote BXRE-40E4000-B-73
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
BXRE-40E4000-B-73 | Hersteller : Bridgelux, Inc. |
LED Modules Uni-Color White 2-Pin Tube |
Produkt ist nicht verfügbar |
|
 +1 |
BXRE-40E4000-B-73 | Hersteller : BRIDGELUX |
Category: White power LEDs - COB Description: Power LED; COB; 30.6W; 4000K; 4674lm; 120°; Front: flat; 24x24x1.7mm Type of diode: power LED LED version: COB Power: 30.6W Colour temperature: 4000K Luminosity: 4674lm Viewing angle: 120° Front: flat Dimensions: 24x24x1.7mm Min. colour rendering index: 80 LED current: 900mA Operating voltage: 33.9V DC Manufacturer series: V18 Binning: 3-STEP Thermal resistance: 0.15K/W Light source efficiency: 153lm/W Storage temperature: -40...105°C |
Produkt ist nicht verfügbar |
