BXRE-40S1001-B-73
  • BXRE-40S1001-B-73
  • BXRE-40S1001-B-73

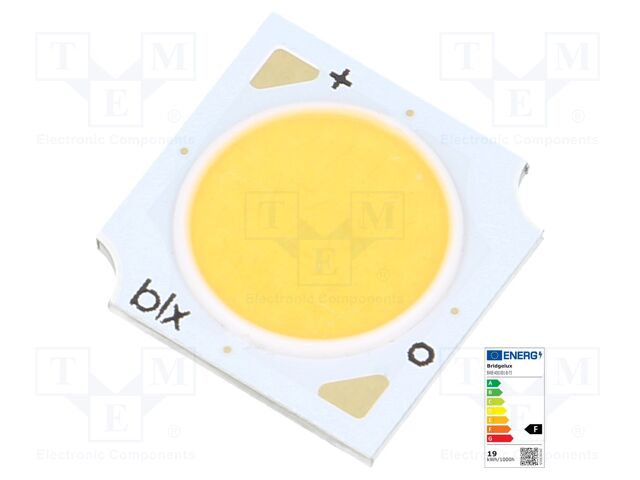

BXRE-40S1001-B-73 BRIDGELUX

pVersion=0046&contRep=ZT&docId=005056AB90B41ED9BC961D03D86C40C4&compId=BXRE-XXS1001-X-7X.pdf?ci_sign=01e07a3a62149982d9573637873dccd165a5df81 Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 9.3W; 4000K; 1142lm; 120°; CRImin: 95; Front: flat
Min. colour rendering index: 95
Operating voltage: 32.2...37.4V DC
Colour temperature: 4000K
Light source efficiency: 123lm/W
Viewing angle: 120°
Luminosity: 1142lm
LED version: COB
Front: flat
Manufacturer series: Thrive
Type of diode: power LED
Storage temperature: -40...105°C
Binning: 3-STEP
Dimensions: 13.5x13.5x1.7mm
LED current: 270mA
Thermal resistance: 0.49K/W
Power: 9.3W
Anzahl je Verpackung: 1 Stücke
auf Bestellung 310 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
23+3.22 EUR
25+2.89 EUR
26+2.79 EUR
Mindestbestellmenge: 23
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details BXRE-40S1001-B-73 BRIDGELUX

Description: LED COB V10 THRIVE WHT SQ 4000K, Packaging: Tube, Color: White, Neutral, Size / Dimension: 13.50mm L x 13.50mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 33.7V, Height: 1.70mm, Current - Test: 270mA, Viewing Angle: 120°, Lens Type: Flat, Current - Max: 540mA, Lumens/Watt @ Current - Test: 113 lm/W, CCT (K): 4000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 95, Light Emitting Surface (LES): 10.20mm Dia, Temperature - Test: 85°C, Luminous Flux @ Current/Temperature: 1028lm (Typ), Part Status: Active.

Weitere Produktangebote BXRE-40S1001-B-73 nach Preis ab 2.79 EUR bis 4.4 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
BXRE-40S1001-B-73
+1
 		BXRE-40S1001-B-73 Hersteller : BRIDGELUX pVersion=0046&contRep=ZT&docId=005056AB90B41ED9BC961D03D86C40C4&compId=BXRE-XXS1001-X-7X.pdf?ci_sign=01e07a3a62149982d9573637873dccd165a5df81 Category: White power LEDs - COB
Description: Power LED; COB; 9.3W; 4000K; 1142lm; 120°; CRImin: 95; Front: flat
Min. colour rendering index: 95
Operating voltage: 32.2...37.4V DC
Colour temperature: 4000K
Light source efficiency: 123lm/W
Viewing angle: 120°
Luminosity: 1142lm
LED version: COB
Front: flat
Manufacturer series: Thrive
Type of diode: power LED
Storage temperature: -40...105°C
Binning: 3-STEP
Dimensions: 13.5x13.5x1.7mm
LED current: 270mA
Thermal resistance: 0.49K/W
Power: 9.3W
auf Bestellung 310 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
23+3.22 EUR
25+2.89 EUR
26+2.79 EUR
Mindestbestellmenge: 23
Im Einkaufswagen  Stück im Wert von  UAH
BXRE-40S1001-B-73 BXRE-40S1001-B-73 Hersteller : Bridgelux DS320%20Bridgelux%20Gen%207%20V10C%20Thrive%20Array%20Rev%20A%2020191006_0.pdf Description: LED COB V10 THRIVE WHT SQ 4000K
Packaging: Tube
Color: White, Neutral
Size / Dimension: 13.50mm L x 13.50mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 33.7V
Height: 1.70mm
Current - Test: 270mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 540mA
Lumens/Watt @ Current - Test: 113 lm/W
CCT (K): 4000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 95
Light Emitting Surface (LES): 10.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1028lm (Typ)
Part Status: Active
auf Bestellung 163 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+4.4 EUR
50+4.26 EUR
100+3.94 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
BXRE-40S1001-B-73 BXRE-40S1001-B-73 Hersteller : Bridgelux, Inc. idgelux20gen20720v10c20thrive20array20rev20a2020191006_0.pdf LED Modules Uni-Color White 2-Pin COB Tube
