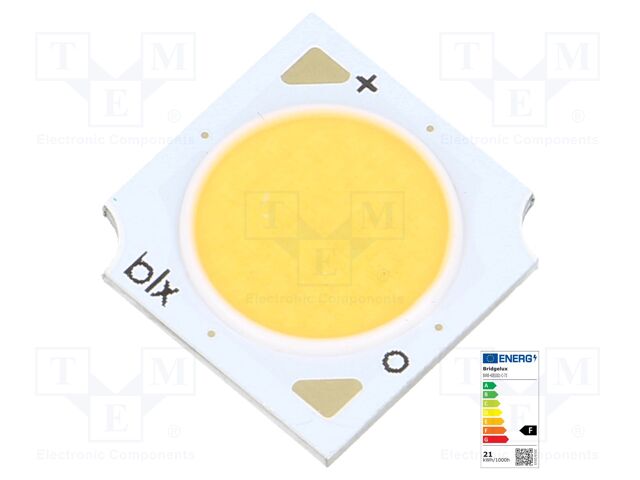

BXRE-40S1001-C-73

Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 12.4W; 4000K; 1523lm; 120°; Front: flat; CRImin: 95
Operating voltage: 32.2...37.4V DC
Luminosity: 1523lm
Min. colour rendering index: 95
Light source efficiency: 123lm/W
Viewing angle: 120°
Binning: 3-STEP
Colour temperature: 4000K
LED version: COB
Front: flat
Type of diode: power LED
Manufacturer series: Thrive
Storage temperature: -40...105°C
Dimensions: 13.5x13.5x1.7mm
Thermal resistance: 0.37K/W
LED current: 360mA
Power: 12.4W

Hersteller: BRIDGELUX
Description: BRIDGELUX - BXRE-40S1001-C-73 - COB-LED, NEUTRALWEISS, 123LM/W, 4000K
tariffCode: 85414100
Lumen/Watt bei Strom - Test: 123lm/W
rohsCompliant: YES
COB-Breite: 13.5mm
Lichtaustrittsfläche: 10.2mm
Höhe: 1.7mm
Linsenform: Rund, oben flach
hazardous: false
rohsPhthalatesCompliant: YES
COB-Länge: 13.5mm
Lichtstrom bei Test: 1523lm
Nennleistung: 12.4W
isCanonical: Y
usEccn: EAR99
Durchlassspannung (VF), typ.: 34.4V
Linsentyp: -
Bauform des Optokopplers: SMD-2, keine Anschlussdrähte
euEccn: NLR
Abstrahlwinkel: 120°
Farbwiedergabeindex, max.: 95
COB-Farbe: Neutralweiß
Produktpalette: Gen 7 V10 Thrive Array BXRE
productTraceability: No
Durchlassstrom bei Prüfung: 360mA
Nominelle CCT (K): 4000K
SVHC: No SVHC (21-Jan-2025)

Hersteller: Bridgelux
Description: LED COB V10 THRIVE WHT SQ 4000K
Packaging: Tube
Color: White, Neutral
Size / Dimension: 13.50mm L x 13.50mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 33.7V
Height: 1.70mm
Current - Test: 360mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 720mA
Lumens/Watt @ Current - Test: 113 lm/W
CCT (K): 4000K
CRI (Color Rendering Index): 95
Light Emitting Surface (LES): 10.20mm Dia
Temperature - Test: 85°C
Luminous Flux @ Current/Temperature: 1371lm (Typ)
Part Status: Active
