BXRH-27G3000-D-83
  • BXRH-27G3000-D-83
  • BXRH-27G3000-D-83

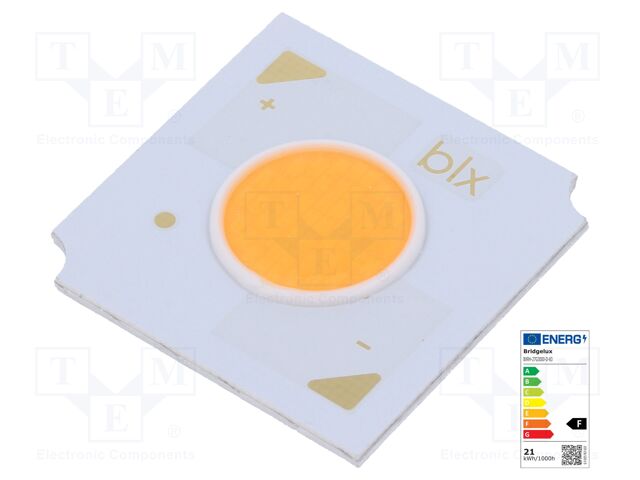

BXRH-27G3000-D-83 BRIDGELUX

pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB3E9A4D847DB40C7&compId=BXRH-27E3000-D-83.pdf?ci_sign=81b7987ead54deb9d348b0aa01141b11728e0ede Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; white warm; COB; 25.6W; 2700K; 2819lm; 120°; CRImin: 90
Type of diode: power LED
LED colour: white warm
LED version: COB
Colour temperature: 2700K
Luminosity: 2819lm
Viewing angle: 120°
Min. colour rendering index: 90
Front: flat
LED current: 700mA
Dimensions: 19x19x1.63mm
Operating voltage: 36.6V DC
Light source efficiency: 110lm/W
Manufacturer series: V9 HD
Binning: 3SDCM
Power: 25.6W
Anzahl je Verpackung: 1 Stücke
auf Bestellung 15 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
15+4.76 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details BXRH-27G3000-D-83 BRIDGELUX

Description: LED COB V9 HD WARM WHT SQU 2700K, Packaging: Tube, Color: White, Warm, Size / Dimension: 19.00mm L x 19.00mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 36.6V, Height: 1.63mm, Current - Test: 700mA, Viewing Angle: 120°, Lens Type: Flat, Current - Max: 1.2A, Lumens/Watt @ Current - Test: 110 lm/W, CCT (K): 2700K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 90, Light Emitting Surface (LES): 8.80mm Dia, Temperature - Test: 25°C, Luminous Flux @ Current/Temperature: 2819lm (Typ), Part Status: Active.

Weitere Produktangebote BXRH-27G3000-D-83 nach Preis ab 3.97 EUR bis 6.30 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
BXRH-27G3000-D-83
+1
 		BXRH-27G3000-D-83 Hersteller : BRIDGELUX pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB3E9A4D847DB40C7&compId=BXRH-27E3000-D-83.pdf?ci_sign=81b7987ead54deb9d348b0aa01141b11728e0ede Category: White power LEDs - COB
Description: Power LED; white warm; COB; 25.6W; 2700K; 2819lm; 120°; CRImin: 90
Type of diode: power LED
LED colour: white warm
LED version: COB
Colour temperature: 2700K
Luminosity: 2819lm
Viewing angle: 120°
Min. colour rendering index: 90
Front: flat
LED current: 700mA
Dimensions: 19x19x1.63mm
Operating voltage: 36.6V DC
Light source efficiency: 110lm/W
Manufacturer series: V9 HD
Binning: 3SDCM
Power: 25.6W
auf Bestellung 15 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
15+4.76 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
BXRH-27G3000-D-83 BXRH-27G3000-D-83 Hersteller : Bridgelux DS408%20Gen%208%20V9%20HD%20Array%20Data%20Sheet%2020210520%20Rev%20A.pdf Description: LED COB V9 HD WARM WHT SQU 2700K
Packaging: Tube
Color: White, Warm
Size / Dimension: 19.00mm L x 19.00mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 36.6V
Height: 1.63mm
Current - Test: 700mA
Viewing Angle: 120°
Lens Type: Flat
Current - Max: 1.2A
Lumens/Watt @ Current - Test: 110 lm/W
CCT (K): 2700K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 8.80mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 2819lm (Typ)
Part Status: Active
auf Bestellung 441 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+6.30 EUR
10+4.39 EUR
100+3.97 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
