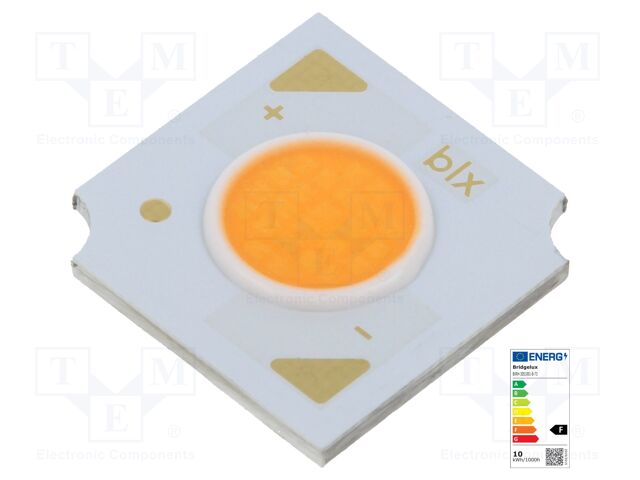

BXRH-30S1001-B-73 BRIDGELUX
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; COB; 12.4W; 3000K; 1101lm; 120°; Front: flat; CRImin: 98
Type of diode: power LED
LED version: COB
Power: 12.4W
Colour temperature: 3000K
Luminosity: 1101lm
Viewing angle: 120°
Front: flat
Dimensions: 13.5x13.5x1.65mm
Min. colour rendering index: 98
LED current: 350mA
Operating voltage: 35.4V DC
Manufacturer series: Thrive
Binning: 3SDCM
Thermal resistance: 0.36K/W
Light source efficiency: 89lm/W
Storage temperature: -40...105°C
| Anzahl | Privatkunde |
|---|---|
| 27+ | 3.24 EUR |
| 30+ | 2.86 EUR |
| 35+ | 2.49 EUR |
| 105+ | 2.31 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRH-30S1001-B-73 BRIDGELUX
Description: LED COB V6HD THRIVE WH SQ 3000K, Part Status: Active, Luminous Flux @ Current/Temperature: 1223lm (Typ), Temperature - Test: 25°C, Light Emitting Surface (LES): 6.60mm Dia, CRI (Color Rendering Index): 98 (Typ), CCT (K): 3000K 3-Step MacAdam Ellipse, Lumens/Watt @ Current - Test: 96 lm/W, Current - Max: 480mA, Lens Type: Flat, Viewing Angle: 120°, Current - Test: 350mA, Height: 1.63mm, Voltage - Forward (Vf) (Typ): 36.4V, Configuration: Square, Type: Chip On Board (COB), Size / Dimension: 13.50mm L x 13.50mm W, Color: White, Warm, Packaging: Tube.
Weitere Produktangebote BXRH-30S1001-B-73 nach Preis ab 3.56 EUR bis 6.95 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BXRH-30S1001-B-73 | Bridgelux |
Description: LED COB V6HD THRIVE WH SQ 3000K Part Status: Active Luminous Flux @ Current/Temperature: 1223lm (Typ) Temperature - Test: 25°C Light Emitting Surface (LES): 6.60mm Dia CRI (Color Rendering Index): 98 (Typ) CCT (K): 3000K 3-Step MacAdam Ellipse Lumens/Watt @ Current - Test: 96 lm/W Current - Max: 480mA Lens Type: Flat Viewing Angle: 120° Current - Test: 350mA Height: 1.63mm Voltage - Forward (Vf) (Typ): 36.4V Configuration: Square Type: Chip On Board (COB) Size / Dimension: 13.50mm L x 13.50mm W Color: White, Warm Packaging: Tube |
auf Bestellung 617 Stücke: Lieferzeit 10-14 Tag (e) |
|
| BXRH-30S1001-B-73 |
|
Hersteller: Bridgelux
Description: LED COB V6HD THRIVE WH SQ 3000K
Part Status: Active
Luminous Flux @ Current/Temperature: 1223lm (Typ)
Temperature - Test: 25°C
Light Emitting Surface (LES): 6.60mm Dia
CRI (Color Rendering Index): 98 (Typ)
CCT (K): 3000K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test: 96 lm/W
Current - Max: 480mA
Lens Type: Flat
Viewing Angle: 120°
Current - Test: 350mA
Height: 1.63mm
Voltage - Forward (Vf) (Typ): 36.4V
Configuration: Square
Type: Chip On Board (COB)
Size / Dimension: 13.50mm L x 13.50mm W
Color: White, Warm
Packaging: Tube
Description: LED COB V6HD THRIVE WH SQ 3000K
Part Status: Active
Luminous Flux @ Current/Temperature: 1223lm (Typ)
Temperature - Test: 25°C
Light Emitting Surface (LES): 6.60mm Dia
CRI (Color Rendering Index): 98 (Typ)
CCT (K): 3000K 3-Step MacAdam Ellipse
Lumens/Watt @ Current - Test: 96 lm/W
Current - Max: 480mA
Lens Type: Flat
Viewing Angle: 120°
Current - Test: 350mA
Height: 1.63mm
Voltage - Forward (Vf) (Typ): 36.4V
Configuration: Square
Type: Chip On Board (COB)
Size / Dimension: 13.50mm L x 13.50mm W
Color: White, Warm
Packaging: Tube
auf Bestellung 617 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 6.95 EUR |
| 10+ | 5.12 EUR |
| 100+ | 4.03 EUR |
| 500+ | 3.56 EUR |
