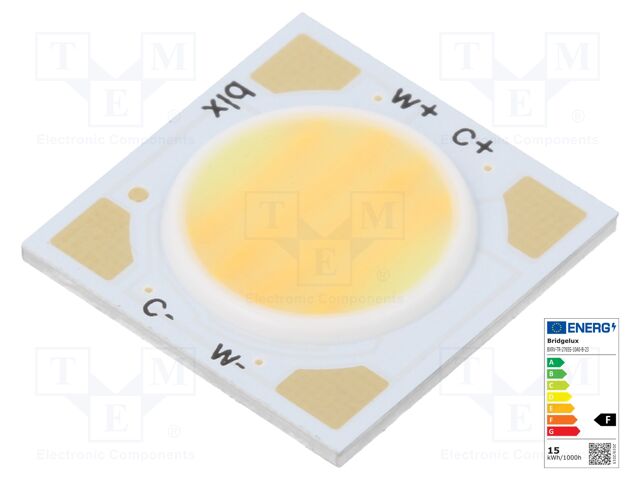

BXRV-TR-2765S-10A0-B-23 BRIDGELUX
Hersteller: BRIDGELUX
Category: White power LEDs - COB
Description: Power LED; white warm/cold white; COB,bicolour; 8.7W; 2700-6500K
Operating voltage: 32.8...36.9/32.8...36.9V DC
Luminosity: 842lm; 1012lm
Min. colour rendering index: 95
Colour temperature: 2700-6500K
LED version: bicolour; COB
Front: flat
Type of diode: power LED
Manufacturer series: Vesta Tunable White
LED colour: white warm/cold white
Storage temperature: 40...105°C
Dimensions: 15.9x15.9x1.65mm
LED current: 250mA
Power: 8.7W
Produktrezensionen
Produktbewertung abgeben
Technische Details BXRV-TR-2765S-10A0-B-23 BRIDGELUX
Description: TW9 TUNABLE WHITE ARRAY (DP, 3, Packaging: Tray, Color: White, Warm / White, Cool, Size / Dimension: 15.90mm L x 15.90mm W, Type: Chip On Board (COB), Configuration: Square, Voltage - Forward (Vf) (Typ): 18V, Height: 1.65mm, Current - Test: 250mA, Viewing Angle: 130°, Lens Type: Flat, Current - Max: 480mA, Lumens/Watt @ Current - Test: 113 lm/W, CCT (K): 1800K 5-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse, CRI (Color Rendering Index): 90, Light Emitting Surface (LES): 10.00mm Dia, Temperature - Test: 25°C, Luminous Flux @ Current/Temperature: 1060lm.
Weitere Produktangebote BXRV-TR-2765S-10A0-B-23
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
| BXRV-TR-2765S-10A0-B-23 | Bridgelux |
Description: TW9 TUNABLE WHITE ARRAY (DP, 3 Packaging: Tray Color: White, Warm / White, Cool Size / Dimension: 15.90mm L x 15.90mm W Type: Chip On Board (COB) Configuration: Square Voltage - Forward (Vf) (Typ): 18V Height: 1.65mm Current - Test: 250mA Viewing Angle: 130° Lens Type: Flat Current - Max: 480mA Lumens/Watt @ Current - Test: 113 lm/W CCT (K): 1800K 5-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse CRI (Color Rendering Index): 90 Light Emitting Surface (LES): 10.00mm Dia Temperature - Test: 25°C Luminous Flux @ Current/Temperature: 1060lm |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 180 Stücke Im Einkaufswagen Stück im Wert von UAH |
| BXRV-TR-2765S-10A0-B-23 |
|
Hersteller: Bridgelux
Description: TW9 TUNABLE WHITE ARRAY (DP, 3
Packaging: Tray
Color: White, Warm / White, Cool
Size / Dimension: 15.90mm L x 15.90mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 18V
Height: 1.65mm
Current - Test: 250mA
Viewing Angle: 130°
Lens Type: Flat
Current - Max: 480mA
Lumens/Watt @ Current - Test: 113 lm/W
CCT (K): 1800K 5-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1060lm
Description: TW9 TUNABLE WHITE ARRAY (DP, 3
Packaging: Tray
Color: White, Warm / White, Cool
Size / Dimension: 15.90mm L x 15.90mm W
Type: Chip On Board (COB)
Configuration: Square
Voltage - Forward (Vf) (Typ): 18V
Height: 1.65mm
Current - Test: 250mA
Viewing Angle: 130°
Lens Type: Flat
Current - Max: 480mA
Lumens/Watt @ Current - Test: 113 lm/W
CCT (K): 1800K 5-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse
CRI (Color Rendering Index): 90
Light Emitting Surface (LES): 10.00mm Dia
Temperature - Test: 25°C
Luminous Flux @ Current/Temperature: 1060lm
Produkt ist nicht verfügbar
Mindestbestellmenge: 180 Stücke
