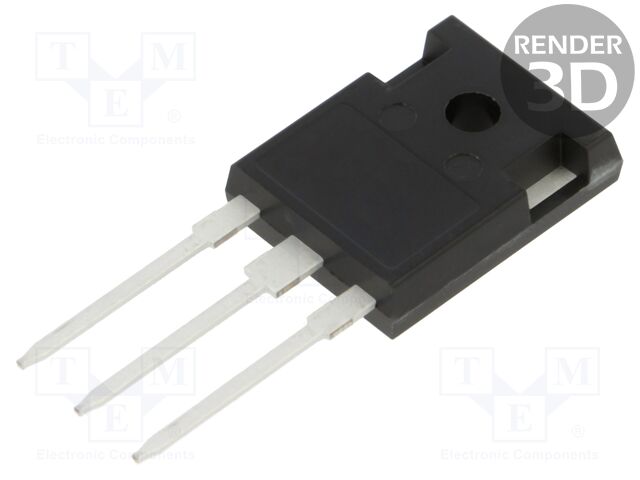

C3M0160120D

Hersteller: Wolfspeed
SiC MOSFETs SiC, MOSFET, 160mohm, 1200V, TO-247-3, Industrial

Hersteller: Wolfspeed(CREE)
Category: THT N channel transistors
Description: Transistor: N-MOSFET; SiC; unipolar; 1.2kV; 12A; Idm: 34A; 97W
Case: TO247-3
Kind of channel: enhancement
Mounting: THT
Type of transistor: N-MOSFET
Polarisation: unipolar
Gate-source voltage: -8...19V
Gate charge: 38nC
On-state resistance: 256mΩ
Drain current: 12A
Pulsed drain current: 34A
Power dissipation: 97W
Drain-source voltage: 1.2kV
Technology: C3M™; SiC

Hersteller: Wolfspeed, Inc.
Description: SICFET N-CH 1200V 17A TO247-3
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: SiCFET (Silicon Carbide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17A (Tc)
Rds On (Max) @ Id, Vgs: 208mOhm @ 8.5A, 15V
Power Dissipation (Max): 97W (Tc)
Vgs(th) (Max) @ Id: 3.6V @ 2.33mA
Supplier Device Package: TO-247-3
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 15V
Vgs (Max): +15V, -4V
Drain to Source Voltage (Vdss): 1200 V
Gate Charge (Qg) (Max) @ Vgs: 38 nC @ 15 V
Input Capacitance (Ciss) (Max) @ Vds: 632 pF @ 1000 V
