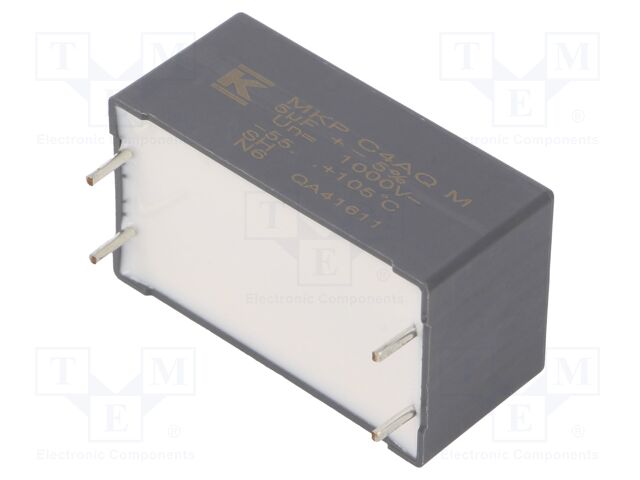

C4AQNLW4500M33J KEMET
Hersteller: KEMETCategory: THT Film Capacitors
Description: Capacitor: polypropylene; DC-Link; 5uF; THT; ESR: 14.7mΩ; C4AQ; ±5%
Mounting: THT
Operating temperature: -55...105°C
Tolerance: ±5%
Conform to the norm: AEC-Q200
Type of capacitor: polypropylene
Capacitance: 5µF
Pulse resistance: 37V/μs
Capacitor application: filtering
Max. operating current: 7.8A
ESR value: 14.7mΩ
Manufacturer series: C4AQ
Kind of capacitor: DC-Link
Terminal pitch: 37.5mm
Body dimensions: 41.5x19x24mm
Max. operating voltage: 1kV DC
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details C4AQNLW4500M33J KEMET
Description: CAP FILM 5UF 5% 1KVDC RADIAL, Tolerance: ±5%, Features: Low ESL, Packaging: Bulk, Package / Case: Radial - 4 Leads, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 105°C, Applications: Automotive; DC Link, DC Filtering, Lead Spacing: 1.476" (37.50mm), Termination: PC Pins, Ratings: AEC-Q200, Dielectric Material: Polypropylene (PP), Metallized, Voltage Rating - DC: 1000V (1kV), Height - Seated (Max): 0.756" (19.20mm), Part Status: Active, Capacitance: 5 µF, ESR (Equivalent Series Resistance): 14.7 mOhms, Size / Dimension: 1.634" L x 0.945" W (41.50mm x 24.00mm).
Weitere Produktangebote C4AQNLW4500M33J
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
C4AQNLW4500M33J | Hersteller : KEMET |
Description: CAP FILM 5UF 5% 1KVDC RADIAL Tolerance: ±5% Features: Low ESL Packaging: Bulk Package / Case: Radial - 4 Leads Mounting Type: Through Hole Operating Temperature: -55°C ~ 105°C Applications: Automotive; DC Link, DC Filtering Lead Spacing: 1.476" (37.50mm) Termination: PC Pins Ratings: AEC-Q200 Dielectric Material: Polypropylene (PP), Metallized Voltage Rating - DC: 1000V (1kV) Height - Seated (Max): 0.756" (19.20mm) Part Status: Active Capacitance: 5 µF ESR (Equivalent Series Resistance): 14.7 mOhms Size / Dimension: 1.634" L x 0.945" W (41.50mm x 24.00mm) |
Produkt ist nicht verfügbar |
|
 |
C4AQNLW4500M33J | Hersteller : KEMET |
Film Capacitors 1k V 5 uF 105C 5% 4 Pin LS=37.5 mm AEC-Q200 |
Produkt ist nicht verfügbar |
|
|
|
C4AQNLW4500M33J | Hersteller : KEMET |
Category: THT Film Capacitors Description: Capacitor: polypropylene; DC-Link; 5uF; THT; ESR: 14.7mΩ; C4AQ; ±5% Mounting: THT Operating temperature: -55...105°C Tolerance: ±5% Conform to the norm: AEC-Q200 Type of capacitor: polypropylene Capacitance: 5µF Pulse resistance: 37V/μs Capacitor application: filtering Max. operating current: 7.8A ESR value: 14.7mΩ Manufacturer series: C4AQ Kind of capacitor: DC-Link Terminal pitch: 37.5mm Body dimensions: 41.5x19x24mm Max. operating voltage: 1kV DC |
Produkt ist nicht verfügbar |
