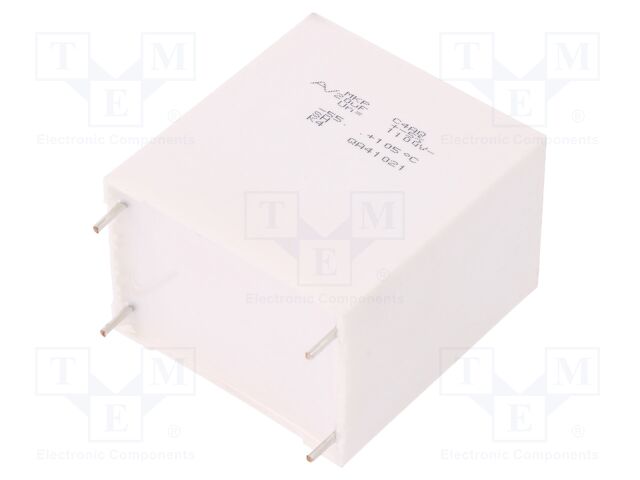

C4AQQBW5200A3LJ KEMET

Category: THT Film Capacitors
Description: Capacitor: polypropylene; DC-Link; 20uF; THT; ESR: 3.9mΩ; C4AQ; ±5%
Mounting: THT
Type of capacitor: polypropylene
Capacitance: 20µF
Pulse resistance: 16V/μs
Climate class: 55/105/56; IEC 60068-1
Capacitor application: filtering
Max. forward impulse current: 321A
Conform to the norm: AEC-Q200
Max. operating current: 15A
ESR value: 3.9mΩ
Manufacturer series: C4AQ
Kind of capacitor: DC-Link
Terminal pitch: 37.5x20.3mm
Operating temperature: -40...105°C
Tolerance: ±5%
Body dimensions: 42x45x30mm
Max. operating voltage: 1.1kV DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 11 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis |
---|---|
8+ | 9.41 EUR |
11+ | 6.51 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details C4AQQBW5200A3LJ KEMET
Description: KEMET - C4AQQBW5200A3LJ - Leistungs-Folienkondensator, Metallisiertes PP, Radiales Gehäuse, 4 Pins, 20 µF, ± 5%, DC-Link, tariffCode: 85322500, Betriebstemperatur, max.: 105°C, Anschlussabstand: 37.5mm, Ausgang (kvar): -, productTraceability: Yes-Date/Lot Code, Betriebstemperatur, min.: -55°C, Produktlänge: 42mm, Produkthöhe: 45mm, Spannung (AC): -, Höhe: 45mm, Kapazitätstoleranz: ± 5%, hazardous: false, Kapazität: 20µF, Typische Anwendungen: DC-Link, Feuchtigkeitsklasse: -, Produktpalette: C4AQ Series, Bauform / Gehäuse des Kondensators: Radiales Gehäuse, 4 Pins, Dielektrikum: Metallisiertes PP, Kondensatormontage: Durchsteckmontage, euEccn: NLR, rohsCompliant: YES, Kondensatoranschlüsse: Radial bedrahtet, dv/dt: 16V/µs, Produktdurchmesser: -, Spannung (DC): 1.1kV, Qualifikation: AEC-Q200, Produktbreite: 30mm, Äquivalenter Serienwiderstand (ESR): 0.0039ohm, RMS-Strom Irms: 21.2A, Rippelstrom: -, Spitzenstrom: 321A, rohsPhthalatesCompliant: YES, usEccn: EAR99, SVHC: No SVHC (21-Jan-2025).
Weitere Produktangebote C4AQQBW5200A3LJ nach Preis ab 6.51 EUR bis 12.00 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
C4AQQBW5200A3LJ | Hersteller : KEMET |
![]() Description: Capacitor: polypropylene; DC-Link; 20uF; THT; ESR: 3.9mΩ; C4AQ; ±5% Mounting: THT Type of capacitor: polypropylene Capacitance: 20µF Pulse resistance: 16V/μs Climate class: 55/105/56; IEC 60068-1 Capacitor application: filtering Max. forward impulse current: 321A Conform to the norm: AEC-Q200 Max. operating current: 15A ESR value: 3.9mΩ Manufacturer series: C4AQ Kind of capacitor: DC-Link Terminal pitch: 37.5x20.3mm Operating temperature: -40...105°C Tolerance: ±5% Body dimensions: 42x45x30mm Max. operating voltage: 1.1kV DC |
auf Bestellung 11 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
![]() |
C4AQQBW5200A3LJ | Hersteller : KEMET |
![]() |
auf Bestellung 541 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
C4AQQBW5200A3LJ | Hersteller : KEMET |
![]() Packaging: Bulk Tolerance: ±5% Package / Case: Radial - 4 Leads Mounting Type: Through Hole Operating Temperature: -40°C ~ 105°C Applications: Automotive; DC Link, DC Filtering Lead Spacing: 1.476" (37.50mm) Termination: PC Pins Ratings: AEC-Q200 Dielectric Material: Polypropylene (PP), Metallized Voltage Rating - DC: 1100V (1.1kV) Height - Seated (Max): 1.780" (45.20mm) Capacitance: 20 µF ESR (Equivalent Series Resistance): 3.9 MOhms Size / Dimension: 1.654" L x 1.181" W (42.00mm x 30.00mm) |
auf Bestellung 504 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
![]() |
C4AQQBW5200A3LJ | Hersteller : KEMET |
![]() tariffCode: 85322500 Betriebstemperatur, max.: 105°C Anschlussabstand: 37.5mm Ausgang (kvar): - productTraceability: Yes-Date/Lot Code Betriebstemperatur, min.: -55°C Produktlänge: 42mm Produkthöhe: 45mm Spannung (AC): - Höhe: 45mm Kapazitätstoleranz: ± 5% hazardous: false Kapazität: 20µF Typische Anwendungen: DC-Link Feuchtigkeitsklasse: - Produktpalette: C4AQ Series Bauform / Gehäuse des Kondensators: Radiales Gehäuse, 4 Pins Dielektrikum: Metallisiertes PP Kondensatormontage: Durchsteckmontage euEccn: NLR rohsCompliant: YES Kondensatoranschlüsse: Radial bedrahtet dv/dt: 16V/µs Produktdurchmesser: - Spannung (DC): 1.1kV Qualifikation: AEC-Q200 Produktbreite: 30mm Äquivalenter Serienwiderstand (ESR): 0.0039ohm RMS-Strom Irms: 21.2A Rippelstrom: - Spitzenstrom: 321A rohsPhthalatesCompliant: YES usEccn: EAR99 SVHC: No SVHC (21-Jan-2025) |
auf Bestellung 93 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||||||||||||
![]() |
C4AQQBW5200A3LJ | Hersteller : KEMET |
![]() |
Produkt ist nicht verfügbar |
