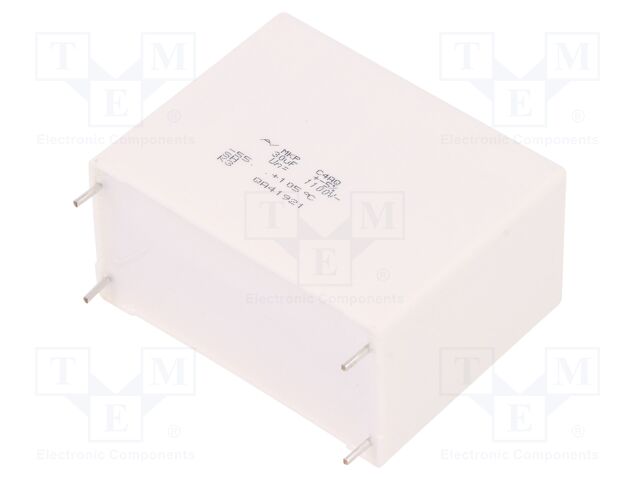

C4AQQBW5300A3MJ KEMET
Hersteller: KEMET
Category: THT Film Capacitors
Description: Capacitor: polypropylene; DC-Link; 30uF; Uoper: 1.1kVDC; Ifsm: 324A
Type of capacitor: polypropylene
Kind of capacitor: DC-Link
Capacitance: 30µF
Operating voltage: 1.1kV DC
Max. operating voltage: 1.1kV DC
Max. operating current: 15A
Max. forward impulse current: 324A
Mounting: THT
ESR value: 5.2mΩ
Manufacturer series: C4AQ
Tolerance: ±5%
Body dimensions: 57.5x45x30mm
Terminal pitch: 52.5x20.3mm
Conform to the norm: AEC-Q200
Climate class: 55/105/56; IEC 60068-1
Capacitor application: filtering
Pulse resistance: 11V/μs
Operating temperature: -40...105°C
Produktrezensionen
Produktbewertung abgeben
Technische Details C4AQQBW5300A3MJ KEMET
Category: THT Film Capacitors, Description: Capacitor: polypropylene; DC-Link; 30uF; Uoper: 1.1kVDC; Ifsm: 324A, Type of capacitor: polypropylene, Kind of capacitor: DC-Link, Capacitance: 30µF, Operating voltage: 1.1kV DC, Max. operating voltage: 1.1kV DC, Max. operating current: 15A, Max. forward impulse current: 324A, Mounting: THT, ESR value: 5.2mΩ, Manufacturer series: C4AQ, Tolerance: ±5%, Body dimensions: 57.5x45x30mm, Terminal pitch: 52.5x20.3mm, Conform to the norm: AEC-Q200, Climate class: 55/105/56; IEC 60068-1, Capacitor application: filtering, Pulse resistance: 11V/μs, Operating temperature: -40...105°C.
Weitere Produktangebote C4AQQBW5300A3MJ nach Preis ab 8.08 EUR bis 15.36 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C4AQQBW5300A3MJ | Hersteller : Kemet |
Cap Film 30uF 1100V PP 5%( 57.5 X 30 X 45mm) Plastic Rectangular Can 52.5mm 0.0052 Ohm 105°C Tray Automotive AEC-Q200 |
auf Bestellung 119 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
|
|
C4AQQBW5300A3MJ | Hersteller : Kemet |
Cap Film 30uF 1100V PP 5%( 57.5 X 30 X 45mm) Plastic Rectangular Can 52.5mm 0.0052 Ohm 105°C Tray Automotive AEC-Q200 |
auf Bestellung 25 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
C4AQQBW5300A3MJ | Hersteller : KEMET |
Description: CAP FILM 30UF 5% 1.1KVDC RADIAL Packaging: Bulk Tolerance: ±5% Package / Case: Radial - 4 Leads Mounting Type: Through Hole Operating Temperature: -40°C ~ 105°C Applications: Automotive; DC Link, DC Filtering Lead Spacing: 2.067" (52.50mm) Termination: PC Pins Ratings: AEC-Q200 Dielectric Material: Polypropylene (PP), Metallized Voltage Rating - DC: 1100V (1.1kV) Height - Seated (Max): 1.783" (45.30mm) Capacitance: 30 µF ESR (Equivalent Series Resistance): 5.2 mOhms Size / Dimension: 2.264" L x 1.181" W (57.50mm x 30.00mm) |
auf Bestellung 475 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
C4AQQBW5300A3MJ | Hersteller : KEMET |
Film Capacitors 1.1k V 30 uF 105C 5% 4 Pin LS=52.5 mm AEC-Q200 |
auf Bestellung 148 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
|
|
C4AQQBW5300A3MJ | Hersteller : Kemet |
Cap Film 30uF 1100V PP 5%( 57.5 X 30 X 45mm) Plastic Rectangular Can 52.5mm 0.0052 Ohm 105°C Tray Automotive AEC-Q200 |
Produkt ist nicht verfügbar |
|||||||||||||||
|
|
C4AQQBW5300A3MJ | Hersteller : Kemet |
Cap Film 30uF 1100V PP 5%( 57.5 X 30 X 45mm) Plastic Rectangular Can 52.5mm 0.0052 Ohm 105°C Tray Automotive AEC-Q200 |
Produkt ist nicht verfügbar |
