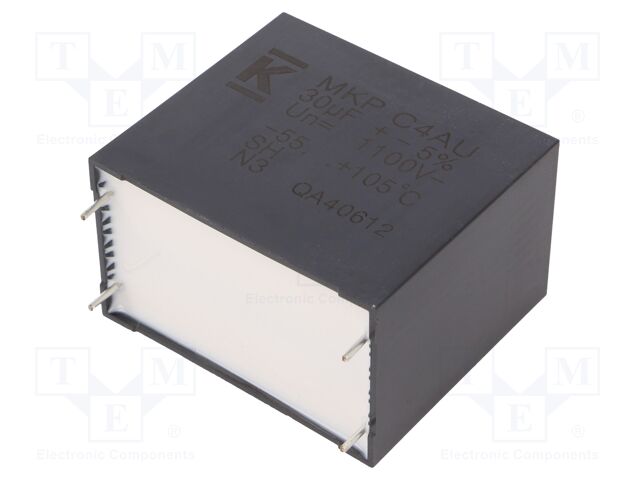

C4AUQBW5300M3NJ KEMET
Hersteller: KEMET
Category: THT Film Capacitors
Description: Capacitor: polypropylene; DC-Link; 30uF; 1.1kVDC; 23A; THT; C4AU
Operating temperature: -55...105°C
Capacitor application: filtering
Type of capacitor: polypropylene
Mounting: THT
Capacitance: 30µF
ESR value: 4.8mΩ
Terminal pitch: 52.5mm
Body dimensions: 57.5x50x35mm
Tolerance: ±5%
Pulse resistance: 20V/μs
Max. operating current: 23A
Operating voltage: 1.1kV DC
Climate class: 55/105/56; IEC 60068-1
Conform to the norm: AEC-Q200
Manufacturer series: C4AU
Kind of capacitor: DC-Link
Produktrezensionen
Produktbewertung abgeben
Technische Details C4AUQBW5300M3NJ KEMET
Description: CAP FILM METAL RAD POLYPROP, Size / Dimension: 2.264" L x 1.378" W (57.50mm x 35.00mm), ESR (Equivalent Series Resistance): 4.8 mOhms, Capacitance: 30 µF, Height - Seated (Max): 2.016" (51.20mm), Voltage Rating - DC: 1100V (1.1kV), Dielectric Material: Polypropylene (PP), Metallized, Ratings: AEC-Q200, Termination: PC Pins, Lead Spacing: 2.067" (52.50mm), Applications: Automotive; DC Link, DC Filtering, Operating Temperature: -55°C ~ 105°C, Mounting Type: Through Hole, Package / Case: Radial - 4 Leads, Features: Low ESL, Tolerance: ±5%, Packaging: Box.
Weitere Produktangebote C4AUQBW5300M3NJ
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
C4AUQBW5300M3NJ | KEMET |
Description: CAP FILM METAL RAD POLYPROP Size / Dimension: 2.264" L x 1.378" W (57.50mm x 35.00mm) ESR (Equivalent Series Resistance): 4.8 mOhms Capacitance: 30 µF Height - Seated (Max): 2.016" (51.20mm) Voltage Rating - DC: 1100V (1.1kV) Dielectric Material: Polypropylene (PP), Metallized Ratings: AEC-Q200 Termination: PC Pins Lead Spacing: 2.067" (52.50mm) Applications: Automotive; DC Link, DC Filtering Operating Temperature: -55°C ~ 105°C Mounting Type: Through Hole Package / Case: Radial - 4 Leads Features: Low ESL Tolerance: ±5% Packaging: Box |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 69 Stücke Im Einkaufswagen Stück im Wert von UAH |
| C4AUQBW5300M3NJ |
|
Hersteller: KEMET
Description: CAP FILM METAL RAD POLYPROP
Size / Dimension: 2.264" L x 1.378" W (57.50mm x 35.00mm)
ESR (Equivalent Series Resistance): 4.8 mOhms
Capacitance: 30 µF
Height - Seated (Max): 2.016" (51.20mm)
Voltage Rating - DC: 1100V (1.1kV)
Dielectric Material: Polypropylene (PP), Metallized
Ratings: AEC-Q200
Termination: PC Pins
Lead Spacing: 2.067" (52.50mm)
Applications: Automotive; DC Link, DC Filtering
Operating Temperature: -55°C ~ 105°C
Mounting Type: Through Hole
Package / Case: Radial - 4 Leads
Features: Low ESL
Tolerance: ±5%
Packaging: Box
Description: CAP FILM METAL RAD POLYPROP
Size / Dimension: 2.264" L x 1.378" W (57.50mm x 35.00mm)
ESR (Equivalent Series Resistance): 4.8 mOhms
Capacitance: 30 µF
Height - Seated (Max): 2.016" (51.20mm)
Voltage Rating - DC: 1100V (1.1kV)
Dielectric Material: Polypropylene (PP), Metallized
Ratings: AEC-Q200
Termination: PC Pins
Lead Spacing: 2.067" (52.50mm)
Applications: Automotive; DC Link, DC Filtering
Operating Temperature: -55°C ~ 105°C
Mounting Type: Through Hole
Package / Case: Radial - 4 Leads
Features: Low ESL
Tolerance: ±5%
Packaging: Box
Produkt ist nicht verfügbar
Mindestbestellmenge: 69 Stücke
Im Einkaufswagen
Stück im Wert von UAH
