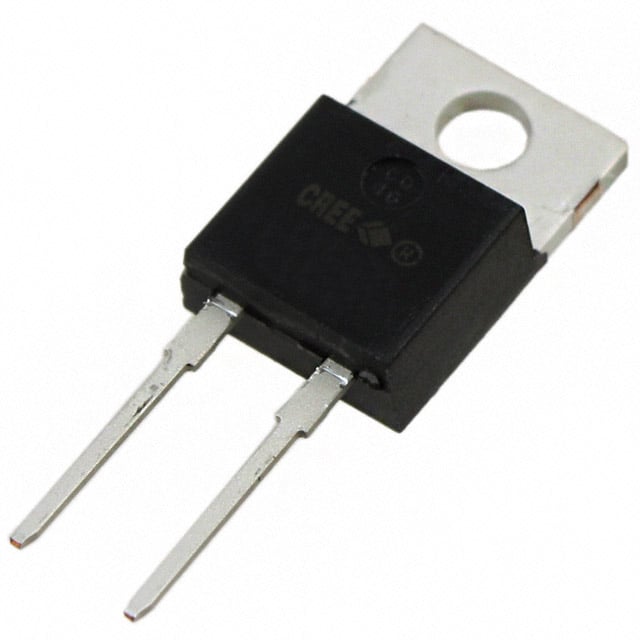

C4D05120A

Hersteller: Wolfspeed(CREE)
Category: THT Schottky diodes
Description: Diode: Schottky rectifying; SiC; THT; 1.2kV; 5A; TO220-2; 81W; C4D
Mounting: THT
Max. off-state voltage: 1.2kV
Load current: 5A
Semiconductor structure: single diode
Case: TO220-2
Type of diode: Schottky rectifying
Manufacturer series: C4D
Power dissipation: 81W
Technology: SiC; Z-Rec®

Hersteller: Wolfspeed, Inc.
Description: DIODE SIL CARB 1200V 19A TO220
Packaging: Tube
Package / Case: TO-220-2
Mounting Type: Through Hole
Speed: No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr): 0 ns
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 390pF @ 0V, 1MHz
Current - Average Rectified (Io): 19A
Supplier Device Package: TO-220-2
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 1200 V
Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 5 A
Current - Reverse Leakage @ Vr: 150 µA @ 1200 V

Hersteller: WOLFSPEED
Description: WOLFSPEED - C4D05120A - Schottky-Diode, Siliziumkarbid, Baureihe Z-Rec 1200V, einfach, 1.2kV, 17A, 27nC, TO-220
tariffCode: 85411000
Bauform - Diode: TO-220
Kapazitive Gesamtladung: 27nC
rohsCompliant: Y-EX
Diodenmontage: Durchsteckmontage
hazardous: false
rohsPhthalatesCompliant: YES
Diodenkonfiguration: Einfach
Qualifikation: -
usEccn: EAR99
Durchschnittlicher Durchlassstrom: 17A
euEccn: NLR
Anzahl der Pins: 2 Pins
Produktpalette: Z-Rec 1200V
productTraceability: No
Periodische Spitzensperrspannung: 1.2kV
Betriebstemperatur, max.: 175°C
