Produkte > GCT > CABLE 162 RF-050-F1-1

CABLE 162 RF-050-F1-1 GCT

pVersion=0046&contRep=ZT&docId=005056AB281E1FD0908BE0CABAE600DF&compId=cable%20162%20rf.pdf?ci_sign=dd4e94a624923672ef48435710908294896e65bd

Hersteller: GCT
Category: Coaxial Assemblies

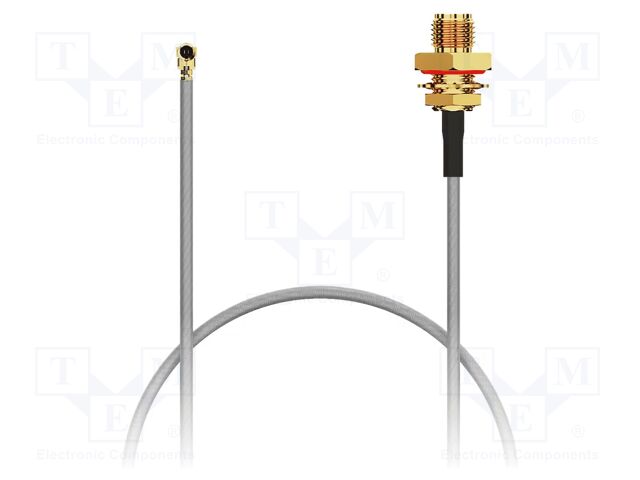

Description: Cable; IPEX MHF,SMA female; brown; -40÷90°C; 0÷3GHz; 50mm; 50Ω
Type of connection cable: coaxial
Cable/adapter structure: IPEX MHF; SMA female
Insulation colour: brown
Connector variant: angled; F1 orientation; straight; with o-ring seal
Frequency: 0...3GHz
Cable length: 50mm
Gasket material: silicone
Kind of cable: RG178
Operating temperature: -40...90°C
IP rating: IP68
Impedance: 50Ω

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details CABLE 162 RF-050-F1-1 GCT

Category: Coaxial Assemblies, Description: Cable; IPEX MHF,SMA female; brown; -40÷90°C; 0÷3GHz; 50mm; 50Ω, Type of connection cable: coaxial, Cable/adapter structure: IPEX MHF; SMA female, Insulation colour: brown, Connector variant: angled; F1 orientation; straight; with o-ring seal, Frequency: 0...3GHz, Cable length: 50mm, Gasket material: silicone, Kind of cable: RG178, Operating temperature: -40...90°C, IP rating: IP68, Impedance: 50Ω.
