Produkte > PANASONIC > CB1-M-24V
CB1-M-24V

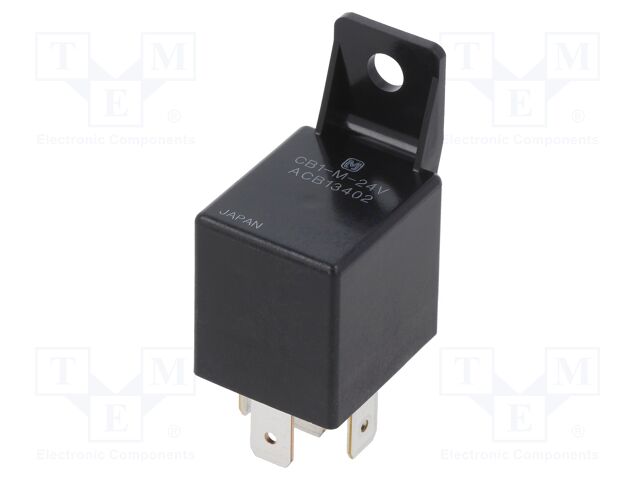

CB1-M-24V PANASONIC


panasonic_cbseries_en.pdf Hersteller: PANASONIC
Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 20A; automotive; CB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 20A
Manufacturer series: CB
Relay variant: automotive
Mounting: socket
Coil resistance: 320Ω
Body dimensions: 26x22x25mm
Coil power consumption: 1.8W
Operating temperature: -40...85°C
Coil current: 75mA
Mechanical durability: 1000000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 435 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
11+6.88 EUR
15+4.98 EUR
16+4.70 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details CB1-M-24V PANASONIC

Category: Automotive Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 20A; automotive; CB, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 24V DC, Contact current max.: 20A, Manufacturer series: CB, Relay variant: automotive, Mounting: socket, Coil resistance: 320Ω, Body dimensions: 26x22x25mm, Coil power consumption: 1.8W, Operating temperature: -40...85°C, Coil current: 75mA, Mechanical durability: 1000000 cycles, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote CB1-M-24V nach Preis ab 4.70 EUR bis 8.71 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
CB1-M-24V CB1-M-24V Hersteller : PANASONIC panasonic_cbseries_en.pdf Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 24VDC; 20A; automotive; CB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 20A
Manufacturer series: CB
Relay variant: automotive
Mounting: socket
Coil resistance: 320Ω
Body dimensions: 26x22x25mm
Coil power consumption: 1.8W
Operating temperature: -40...85°C
Coil current: 75mA
Mechanical durability: 1000000 cycles
auf Bestellung 435 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
11+6.88 EUR
15+4.98 EUR
16+4.70 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
CB1-M-24V CB1-M-24V Hersteller : Panasonic Electric Works CB%20Relay%20Data%20sheet.pdf Description: RELAY AUTOMOTIVE SPDT 20A 24V
Features: Sealed - Fully
Packaging: Bulk
Mounting Type: Chassis Mount
Coil Voltage: 24VDC
Operating Temperature: -40°C ~ 85°C
Termination Style: Quick Connect - 0.250" (6.3mm)
Coil Current: 75 mA
Coil Type: Non Latching
Contact Form: SPDT (1 Form C)
Contact Rating (Current): 20 A
Switching Voltage: 28VDC - Nom
Must Release Voltage: 2.4 VDC
Must Operate Voltage: 14 VDC
Operate Time: 15 ms
Release Time: 15 ms
Part Status: Active
auf Bestellung 1901 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+8.66 EUR
10+7.71 EUR
25+7.36 EUR
50+7.11 EUR
100+6.86 EUR
250+6.55 EUR
500+6.33 EUR
1000+6.11 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
CB1-M-24V CB1-M-24V Hersteller : Panasonic Industrial Devices CB%20Relay%20Data%20sheet.pdf Automotive Relays 20A 24VDC 1 FORM C SEALED BRKT
auf Bestellung 823 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+8.71 EUR
10+7.71 EUR
50+7.22 EUR
100+6.78 EUR
250+6.16 EUR
500+5.77 EUR
1000+5.58 EUR
Im Einkaufswagen  Stück im Wert von  UAH
CB1-M-24V CB1-M-24V Hersteller : PANASONIC mech_eng_cb.pdf?f_cd=301742 Description: PANASONIC - CB1-M-24V - Kfz-Relais, 24 VDC, 20 A, SPDT, Panelmontage, Steckbar, CB
tariffCode: 85364190
rohsCompliant: YES
Relaisanschlüsse: Steckbar
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Silberlegierung
Kontaktstrom: 20A
usEccn: EAR99
Spulenwiderstand: 320ohm
euEccn: NLR
Relaismontage: Panelmontage
DC-Kontaktspannung, nom.: 28V
Produktpalette: CB
productTraceability: No
Spulenspannung: 24VDC
Kontaktkonfiguration: SPDT
SVHC: No SVHC (23-Jan-2024)
auf Bestellung 24 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
CB1-M-24V Hersteller : NAIS CB%20Relay%20Data%20sheet.pdf 07+
auf Bestellung 20000 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
