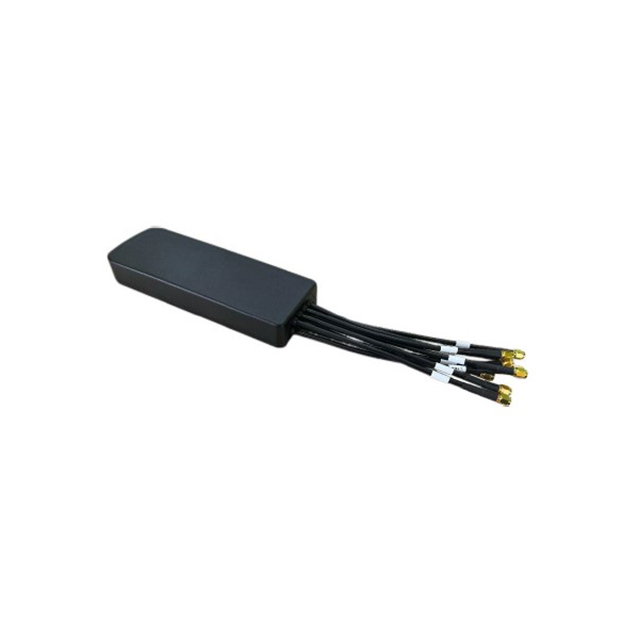

CDB94411AM Pulse Electronics

Description: ANT VEHICULAR 9 PORTS MULTI, Power - Max: 2 W, RF Family/Standard: Cellular, Navigation, WiFi, Frequency (Center/Band): 788.5MHz, 1.176GHz, 1.581GHz, 2.205GHz, 2.45GHz, 4.65GHz, 6.137GHz, Frequency Group: Wide Band, Return Loss: -15dB, -13dB, -10dB, Height (Max): 1.181" (30.00mm), Antenna Type: Module, VSWR: 2, Number of Bands: 7, Ingress Protection: IP65, Termination: SMA Male, Gain: 3.6dBi, 28dBi, 28dBi, 3.9dBi, 3.4dBi, 4.7dBi, 3.1dBi, Applications: 5G, GNSS, LTE, Wi-Fi, Frequency Range: 617MHz ~ 960MHz, 1.164GHz ~ 1.189GHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.5GHz, 2.4GHz ~ 2.7GHz, 3.3GHz ~ 6GHz, 5.15GHz ~ 7.125GHz, Mounting Type: Adhesive, Features: Cable - 457.2mm, LNA, Packaging: Box.
