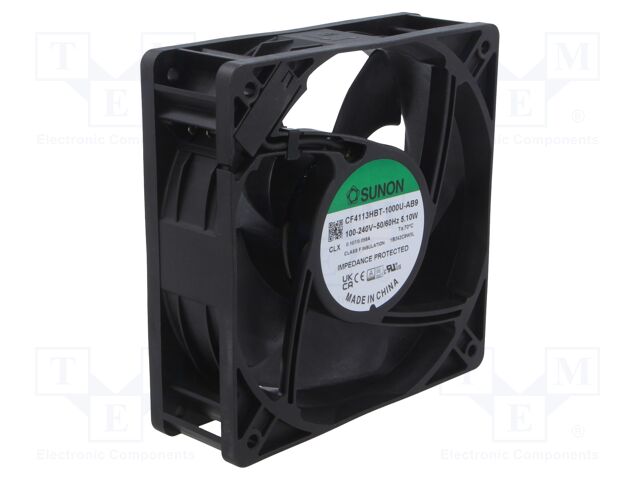

CF4113HBT-1000U-AB9 SUNON
Hersteller: SUNON
Category: EC Fans
Description: Fan: EC; axial; 230VAC; 120x120x38mm; 164m3/h; 44.9dBA; ball
Type of fan: EC
Manufacturer series: ECO
Impeller material: thermoplastic
Enclosure material: thermoplastic
Operating temperature: -25...70°C
Current rating: 58mA
Fan dimensions: 120x120x38mm
Supply voltage: 230V AC
Power consumption: 5.1W
Noise level: 44.9dBA
Frequency: 50...60Hz
Fan efficiency: 164m3/h
Rotational rate/speed: 3600rpm
Min. insulation resistance: 10MΩ
Kind of fan: axial
Kind of Bearing: ball
Fan motor: brushless EC
Leads: connectors
Produktrezensionen
Produktbewertung abgeben
Technische Details CF4113HBT-1000U-AB9 SUNON
Description: EC FAN 120X38MM 100-240V IP55, Power (Watts): 5.10W, Features: Auto Restart, Electronic Commutation, Locked Rotor Protection, Packaging: Bulk, Voltage - Rated: 100 ~ 240VAC, Size / Dimension: Square - 120mm L x 120mm H, Bearing Type: Ball, RPM: 3600 RPM, Air Flow: 109.0 CFM (3.05m³/min), Width: 38.00mm, Operating Temperature: -13 ~ 158°F (-25 ~ 70°C), Termination: 2 Terminals, Approval Agency: CE, cURus, TUV, Ingress Protection: IP55 - Dust Protected, Water Resistant, Fan Type: Tubeaxial, Noise: 44.9dB(A), Static Pressure: 0.370 in H2O (92.2 Pa).
Weitere Produktangebote CF4113HBT-1000U-AB9 nach Preis ab 65.02 EUR bis 72.59 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||
|---|---|---|---|---|---|---|---|---|---|
| CF4113HBT-1000U-AB9 | Sunon Fans |
Description: EC FAN 120X38MM 100-240V IP55 Power (Watts): 5.10W Features: Auto Restart, Electronic Commutation, Locked Rotor Protection Packaging: Bulk Voltage - Rated: 100 ~ 240VAC Size / Dimension: Square - 120mm L x 120mm H Bearing Type: Ball RPM: 3600 RPM Air Flow: 109.0 CFM (3.05m³/min) Width: 38.00mm Operating Temperature: -13 ~ 158°F (-25 ~ 70°C) Termination: 2 Terminals Approval Agency: CE, cURus, TUV Ingress Protection: IP55 - Dust Protected, Water Resistant Fan Type: Tubeaxial Noise: 44.9dB(A) Static Pressure: 0.370 in H2O (92.2 Pa) |
auf Bestellung 180 Stücke: Lieferzeit 10-14 Tag (e) |
|
| CF4113HBT-1000U-AB9 |
|
Hersteller: Sunon Fans
Description: EC FAN 120X38MM 100-240V IP55
Power (Watts): 5.10W
Features: Auto Restart, Electronic Commutation, Locked Rotor Protection
Packaging: Bulk
Voltage - Rated: 100 ~ 240VAC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Ball
RPM: 3600 RPM
Air Flow: 109.0 CFM (3.05m³/min)
Width: 38.00mm
Operating Temperature: -13 ~ 158°F (-25 ~ 70°C)
Termination: 2 Terminals
Approval Agency: CE, cURus, TUV
Ingress Protection: IP55 - Dust Protected, Water Resistant
Fan Type: Tubeaxial
Noise: 44.9dB(A)
Static Pressure: 0.370 in H2O (92.2 Pa)
Description: EC FAN 120X38MM 100-240V IP55
Power (Watts): 5.10W
Features: Auto Restart, Electronic Commutation, Locked Rotor Protection
Packaging: Bulk
Voltage - Rated: 100 ~ 240VAC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Ball
RPM: 3600 RPM
Air Flow: 109.0 CFM (3.05m³/min)
Width: 38.00mm
Operating Temperature: -13 ~ 158°F (-25 ~ 70°C)
Termination: 2 Terminals
Approval Agency: CE, cURus, TUV
Ingress Protection: IP55 - Dust Protected, Water Resistant
Fan Type: Tubeaxial
Noise: 44.9dB(A)
Static Pressure: 0.370 in H2O (92.2 Pa)
auf Bestellung 180 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 72.59 EUR |
| 10+ | 65.02 EUR |
