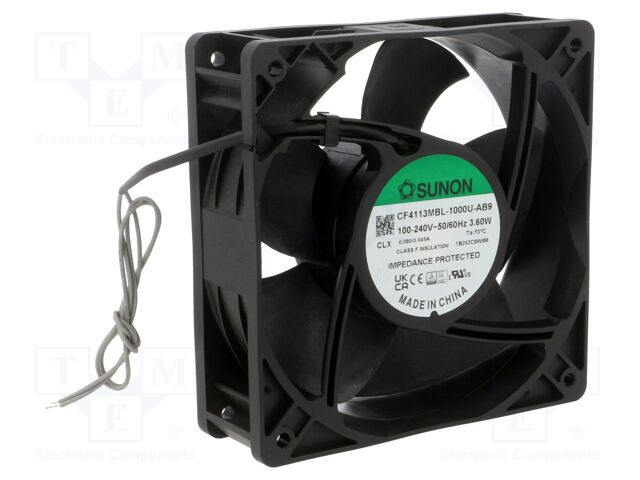

CF4113MBL-1000U-AB9 SUNON
Hersteller: SUNON
Category: EC Fans
Description: Fan: EC; 120x120x38mm; axial; 230VAC; 132m3/h; 40.2dBA; ball; IP55
Type of fan: EC
Fan dimensions: 120x120x38mm
Kind of fan: axial
Supply voltage: 230V AC
Power consumption: 3.6W
Current rating: 45mA
Fan efficiency: 132m3/h
Noise level: 40.2dBA
Kind of Bearing: ball
Rotational rate/speed: 3100rpm
Manufacturer series: ECO
Frequency: 50...60Hz
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
IP rating: IP55
Leads: leads x2
Lead length: 0.33m
Operating temperature: -25...70°C
Fan motor: brushless EC
Produktrezensionen
Produktbewertung abgeben
Technische Details CF4113MBL-1000U-AB9 SUNON
Category: EC Fans, Description: Fan: EC; 120x120x38mm; axial; 230VAC; 132m3/h; 40.2dBA; ball; IP55, Type of fan: EC, Fan dimensions: 120x120x38mm, Kind of fan: axial, Supply voltage: 230V AC, Power consumption: 3.6W, Current rating: 45mA, Fan efficiency: 132m3/h, Noise level: 40.2dBA, Kind of Bearing: ball, Rotational rate/speed: 3100rpm, Manufacturer series: ECO, Frequency: 50...60Hz, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, IP rating: IP55, Leads: leads x2, Lead length: 0.33m, Operating temperature: -25...70°C, Fan motor: brushless EC.
Weitere Produktangebote CF4113MBL-1000U-AB9 nach Preis ab 48.59 EUR bis 72.59 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||
|---|---|---|---|---|---|---|---|---|---|
| CF4113MBL-1000U-AB9 | Sunon |
CF4113MBL-1000U-AB9 |
auf Bestellung 40 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||
| CF4113MBL-1000U-AB9 | Sunon Fans |
Description: EC FAN 120X38MM 100-240V IP55 Power (Watts): 3.60W Features: Auto Restart, Electronic Commutation, Locked Rotor Protection Packaging: Bulk Voltage - Rated: 100 ~ 240VAC Size / Dimension: Square - 120mm L x 120mm H Bearing Type: Ball RPM: 3100 RPM Air Flow: 90.1 CFM (2.52m³/min) Width: 38.00mm Operating Temperature: -13 ~ 158°F (-25 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, cURus, TUV Ingress Protection: IP55 - Dust Protected, Water Resistant Fan Type: Tubeaxial Noise: 40.2dB(A) Static Pressure: 0.310 in H2O (77.2 Pa) |
auf Bestellung 199 Stücke: Lieferzeit 10-14 Tag (e) |
|
| CF4113MBL-1000U-AB9 |
|
Hersteller: Sunon
CF4113MBL-1000U-AB9
CF4113MBL-1000U-AB9
auf Bestellung 40 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 57.49 EUR |
| 40+ | 48.59 EUR |
| CF4113MBL-1000U-AB9 |
|
Hersteller: Sunon Fans
Description: EC FAN 120X38MM 100-240V IP55
Power (Watts): 3.60W
Features: Auto Restart, Electronic Commutation, Locked Rotor Protection
Packaging: Bulk
Voltage - Rated: 100 ~ 240VAC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Ball
RPM: 3100 RPM
Air Flow: 90.1 CFM (2.52m³/min)
Width: 38.00mm
Operating Temperature: -13 ~ 158°F (-25 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, cURus, TUV
Ingress Protection: IP55 - Dust Protected, Water Resistant
Fan Type: Tubeaxial
Noise: 40.2dB(A)
Static Pressure: 0.310 in H2O (77.2 Pa)
Description: EC FAN 120X38MM 100-240V IP55
Power (Watts): 3.60W
Features: Auto Restart, Electronic Commutation, Locked Rotor Protection
Packaging: Bulk
Voltage - Rated: 100 ~ 240VAC
Size / Dimension: Square - 120mm L x 120mm H
Bearing Type: Ball
RPM: 3100 RPM
Air Flow: 90.1 CFM (2.52m³/min)
Width: 38.00mm
Operating Temperature: -13 ~ 158°F (-25 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, cURus, TUV
Ingress Protection: IP55 - Dust Protected, Water Resistant
Fan Type: Tubeaxial
Noise: 40.2dB(A)
Static Pressure: 0.310 in H2O (77.2 Pa)
auf Bestellung 199 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 72.59 EUR |
| 10+ | 65.02 EUR |
