Produkte > CVILUX USA > CF50081D0R0-10-NH

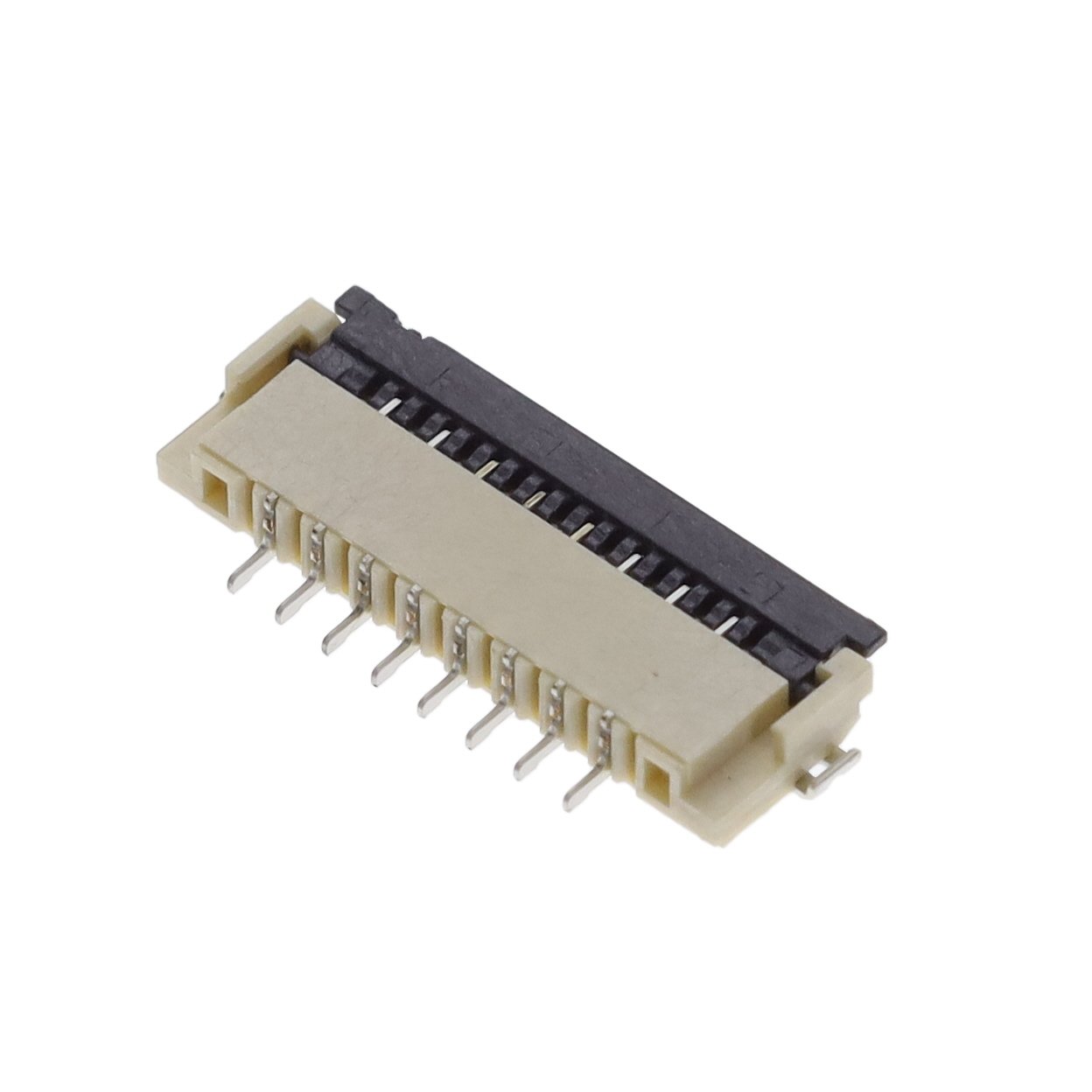

CF50081D0R0-10-NH Cvilux USA

CF5001S.pdf Hersteller: Cvilux USA
Description: CONN FFC FPC BOTTOM 8POS 1MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 8
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 85°C
Termination: Solder
Height Above Board: 0.057" (1.45mm)
Locking Feature: Rotary Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Thermoplastic, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Thermoplastic, Halogen Free
Cable End Type: Straight
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
auf Bestellung 2816 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis ohne MwSt
35+0.51 EUR
41+ 0.43 EUR
47+ 0.38 EUR
51+ 0.35 EUR
100+ 0.33 EUR
250+ 0.3 EUR
500+ 0.29 EUR
1000+ 0.24 EUR
Mindestbestellmenge: 35
Produktrezensionen
Produktbewertung abgeben

Technische Details CF50081D0R0-10-NH Cvilux USA

Description: CONN FFC FPC BOTTOM 8POS 1MM R/A, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Contact Finish: Tin, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 8, Pitch: 0.039" (1.00mm), Operating Temperature: -55°C ~ 85°C, Termination: Solder, Height Above Board: 0.057" (1.45mm), Locking Feature: Rotary Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Thermoplastic, Halogen Free, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, Housing Material: Thermoplastic, Halogen Free, Cable End Type: Straight, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Bottom, Part Status: Active.

Weitere Produktangebote CF50081D0R0-10-NH

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis ohne MwSt
CF50081D0R0-10-NH Hersteller : Cvilux USA CF5001S.pdf Description: CONN FFC FPC BOTTOM 8POS 1MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Contact Finish: Tin
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 8
Pitch: 0.039" (1.00mm)
Operating Temperature: -55°C ~ 85°C
Termination: Solder
Height Above Board: 0.057" (1.45mm)
Locking Feature: Rotary Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Thermoplastic, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Thermoplastic, Halogen Free
Cable End Type: Straight
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
Produkt ist nicht verfügbar
