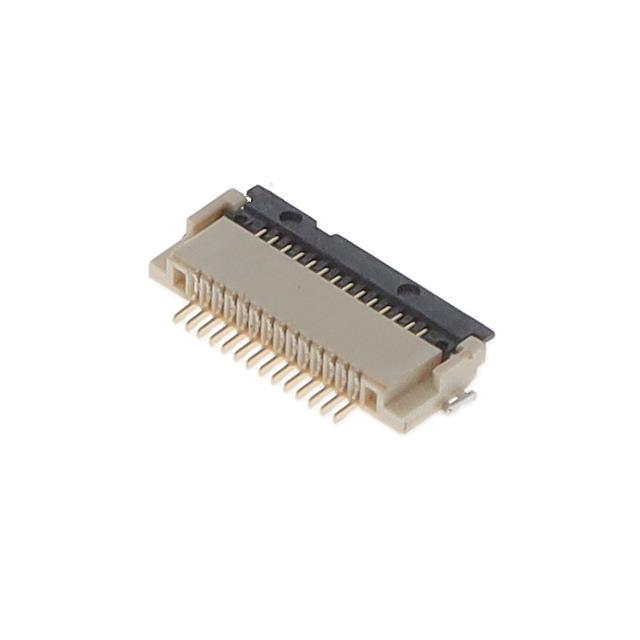

CF5014FD0R0-05-NH Cvilux USA
Hersteller: Cvilux USADescription: CONN FFC BOTTOM 14POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Cut Tape (CT)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 14
Pitch: 0.020" (0.50mm)
Operating Temperature: -40°C ~ 85°C
Termination: Solder
Height Above Board: 0.057" (1.45mm)
Locking Feature: Rotary Lock
Material Flammability Rating: UL94 V-0
Actuator Material: Thermoplastic, Halogen Free
Contact Material: Phosphor Bronze
FFC, FCB Thickness: 0.30mm
Housing Material: Thermoplastic, Halogen Free
Cable End Type: Straight
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
Part Status: Active
auf Bestellung 2889 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 30+ | 0.60 EUR |
| 40+ | 0.45 EUR |
| 44+ | 0.40 EUR |
| 50+ | 0.37 EUR |
| 100+ | 0.34 EUR |
| 250+ | 0.31 EUR |
| 500+ | 0.29 EUR |
| 1000+ | 0.27 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details CF5014FD0R0-05-NH Cvilux USA
Description: CONN FFC BOTTOM 14POS 0.5MM R/A, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 14, Pitch: 0.020" (0.50mm), Operating Temperature: -40°C ~ 85°C, Termination: Solder, Height Above Board: 0.057" (1.45mm), Locking Feature: Rotary Lock, Material Flammability Rating: UL94 V-0, Actuator Material: Thermoplastic, Halogen Free, Contact Material: Phosphor Bronze, FFC, FCB Thickness: 0.30mm, Housing Material: Thermoplastic, Halogen Free, Cable End Type: Straight, Flat Flex Type: FFC, FPC, Connector/Contact Type: Contacts, Bottom, Part Status: Active.
