Produkte > CINCON > CFM130M120
CFM130M120

CFM130M120 CINCON

pVersion=0046&contRep=ZT&docId=005056AB281E1EDD83B1E8FB900E80D2&compId=Datasheet-CFM130M-series.pdf?ci_sign=ecf7631076a8acfabcc058af909fc5a45995f410 Hersteller: CINCON
Category: Open Frame Power Supplies

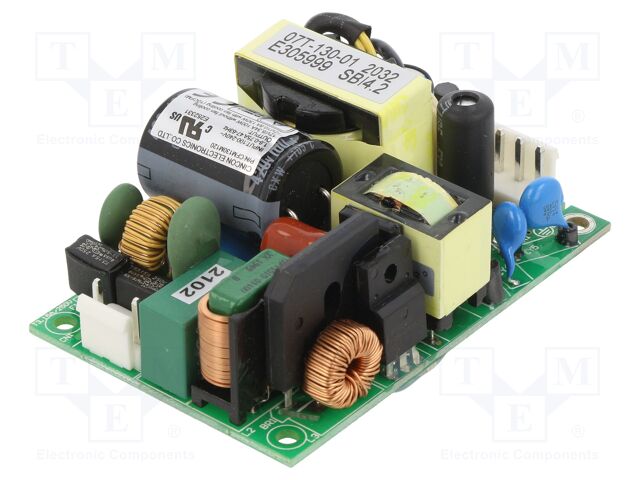

Description: Power supply: switching; open; 130W; 80÷264VAC; OUT: 1; 12VDC; 8.34A
Type of power supply: switching
Application: medical applications
Kind of power supply: open
Power: 130W
Output voltage: 12V DC
Output current: 8.34A
Supply voltage: 80...264V AC
Body dimensions: 76.2x50.8x30.5mm
Manufacturer series: CFM130M
Protection: short circuit protection SCP
Operating temperature: -30...70°C
Electrical connection: connector with snap lock
Number of outputs: 1
Additional functions: active PFC; PFC
Efficiency: 93%
Caution!: the maximum current only with additional cooling
Switching frequency: 105kHz
Power consumption without load: <0.15W
Insulation voltage: 4kV
Case: 3"x2"
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
2+64.04 EUR
10+60.37 EUR
25+58.37 EUR
50+56.37 EUR
100+53.37 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details CFM130M120 CINCON

Category: Open Frame Power Supplies, Description: Power supply: switching; open; 130W; 80÷264VAC; OUT: 1; 12VDC; 8.34A, Type of power supply: switching, Application: medical applications, Kind of power supply: open, Power: 130W, Output voltage: 12V DC, Output current: 8.34A, Supply voltage: 80...264V AC, Body dimensions: 76.2x50.8x30.5mm, Manufacturer series: CFM130M, Protection: short circuit protection SCP, Operating temperature: -30...70°C, Electrical connection: connector with snap lock, Number of outputs: 1, Additional functions: active PFC; PFC, Efficiency: 93%, Caution!: the maximum current only with additional cooling, Switching frequency: 105kHz, Power consumption without load: .
