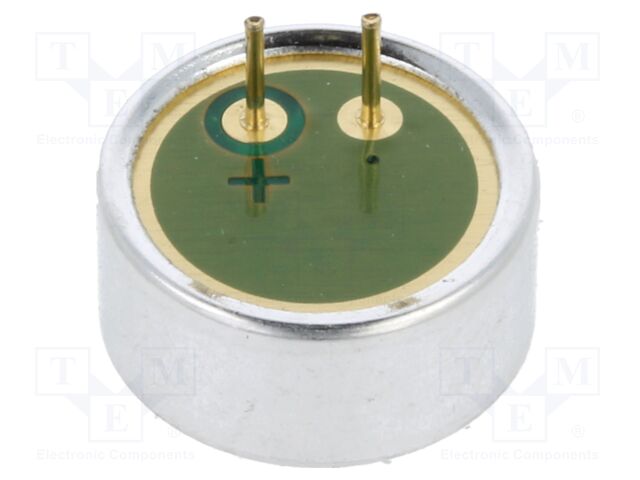

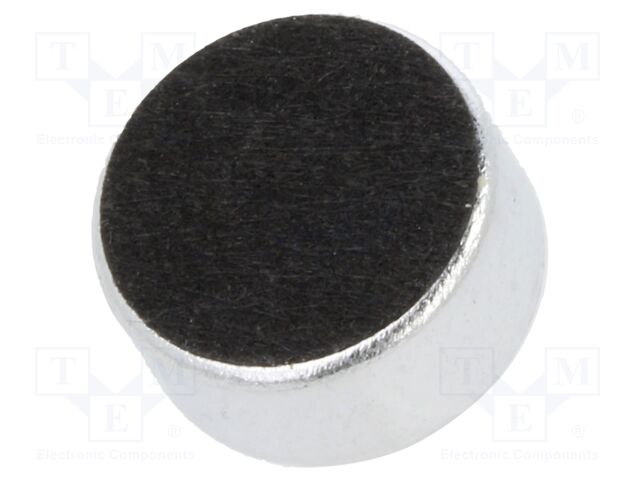

CMEJ-9745-37-P Same Sky®
Hersteller: Same Sky®
Category: Microphones and Headsets
Description: Microphone; electret; 100Hz÷10kHz; 2.2kΩ; -37dB; Ø9.7x4.5mm; 500uA
Operating temperature: -40...70°C
Type of sound transducer: microphone
Microphone sensitivity: -37dB
Operating current: 0.5mA
Terminal pitch: 2.54mm
Body dimensions: Ø9.7x4.5mm
Operating voltage: 1...10V
Bandwidth: 0.1...10kHz
Impedance: 2.2kΩ
Material: aluminium
Leads: short pin
Mounting: THT
Kind of microphone: electret
| Anzahl | Privatkunde |
|---|---|
| 62+ | 1.38 EUR |
| 81+ | 1.06 EUR |
| 89+ | 0.96 EUR |
| 93+ | 0.93 EUR |
| 99+ | 0.87 EUR |
| 108+ | 0.83 EUR |
| 252+ | 0.81 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details CMEJ-9745-37-P Same Sky®
Category: Microphones and Headsets, Description: Microphone; electret; 100Hz÷10kHz; 2.2kΩ; -37dB; Ø9.7x4.5mm; 500uA, Operating temperature: -40...70°C, Type of sound transducer: microphone, Microphone sensitivity: -37dB, Operating current: 0.5mA, Terminal pitch: 2.54mm, Body dimensions: Ø9.7x4.5mm, Operating voltage: 1...10V, Bandwidth: 0.1...10kHz, Impedance: 2.2kΩ, Material: aluminium, Leads: short pin, Mounting: THT, Kind of microphone: electret.
Weitere Produktangebote CMEJ-9745-37-P nach Preis ab 1.06 EUR bis 2.45 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CMEJ-9745-37-P | Same Sky (Formerly CUI Devices) |
Description: MIC COND ANLG OMNI -37DB 0.382"D Packaging: Tray Output Type: Analog Size / Dimension: 0.382" Dia (9.70mm) Sensitivity: -37dB ±3dB @ 94dB SPL Shape: Circular Type: Electret Condenser S/N Ratio: 60dB Termination: PC Pins Direction: Omnidirectional Port Location: Top Height (Max): 0.185" (4.70mm) Part Status: Active Voltage - Rated: 2 V Current - Supply: 500 µA Frequency Range: 100 Hz ~ 10 kHz |
auf Bestellung 1102 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
CMEJ-9745-37-P | Same Sky |
Microphones microphone, 9.7 mm, electret condenser, omnidirectional, Pin, 2 Vdc, 42 dB sensitivity |
auf Bestellung 3336 Stücke: Lieferzeit 10-14 Tag (e) |
|
| CMEJ-9745-37-P |
|
Hersteller: Same Sky (Formerly CUI Devices)
Description: MIC COND ANLG OMNI -37DB 0.382"D
Packaging: Tray
Output Type: Analog
Size / Dimension: 0.382" Dia (9.70mm)
Sensitivity: -37dB ±3dB @ 94dB SPL
Shape: Circular
Type: Electret Condenser
S/N Ratio: 60dB
Termination: PC Pins
Direction: Omnidirectional
Port Location: Top
Height (Max): 0.185" (4.70mm)
Part Status: Active
Voltage - Rated: 2 V
Current - Supply: 500 µA
Frequency Range: 100 Hz ~ 10 kHz
Description: MIC COND ANLG OMNI -37DB 0.382"D
Packaging: Tray
Output Type: Analog
Size / Dimension: 0.382" Dia (9.70mm)
Sensitivity: -37dB ±3dB @ 94dB SPL
Shape: Circular
Type: Electret Condenser
S/N Ratio: 60dB
Termination: PC Pins
Direction: Omnidirectional
Port Location: Top
Height (Max): 0.185" (4.70mm)
Part Status: Active
Voltage - Rated: 2 V
Current - Supply: 500 µA
Frequency Range: 100 Hz ~ 10 kHz
auf Bestellung 1102 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 11+ | 1.95 EUR |
| 14+ | 1.59 EUR |
| 36+ | 1.42 EUR |
| 72+ | 1.33 EUR |
| 108+ | 1.29 EUR |
| 252+ | 1.19 EUR |
| 504+ | 1.12 EUR |
| 1008+ | 1.06 EUR |
| CMEJ-9745-37-P |
|
Hersteller: Same Sky
Microphones microphone, 9.7 mm, electret condenser, omnidirectional, Pin, 2 Vdc, 42 dB sensitivity
Microphones microphone, 9.7 mm, electret condenser, omnidirectional, Pin, 2 Vdc, 42 dB sensitivity
auf Bestellung 3336 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 2.45 EUR |
| 10+ | 1.86 EUR |
| 25+ | 1.77 EUR |
| 36+ | 1.46 EUR |
| 108+ | 1.37 EUR |
| 252+ | 1.25 EUR |
| 504+ | 1.15 EUR |
