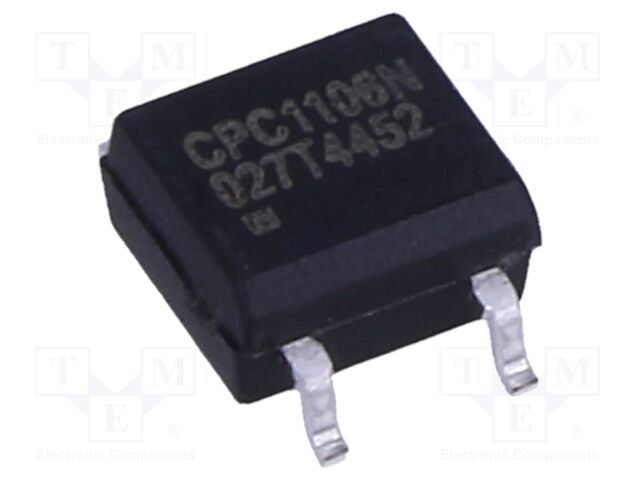

Technische Details CPC1106N Littelfuse
Category: One Phase Solid State Relays, Description: Relay: solid state; SPST-NC; Icntrl max: 50mA; 75mA; max.60VAC, Type of relay: solid state, Max. operating current: 75mA, Switched voltage: max. 60V AC; max. 60V DC, Manufacturer series: OptoMOS, Relay variant: 1-phase; current source, Body dimensions: 4.09x3.81x2.03mm, Operating temperature: -40...85°C, Turn-on time: 10ms, Case: SOP4, Turn-off time: 10ms, Control current max.: 50mA, On-state resistance: 10Ω, Mounting: SMT, Kind of output: MOSFET, Contacts configuration: SPST-NC, Insulation voltage: 1.5kV.
Weitere Produktangebote CPC1106N nach Preis ab 2.12 EUR bis 5.93 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CPC1106N | Littelfuse |
 Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP Tube |
auf Bestellung 300 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
CPC1106N | IXYS |
Category: One Phase Solid State Relays Description: Relay: solid state; SPST-NC; Icntrl max: 50mA; 75mA; max.60VAC Type of relay: solid state Max. operating current: 75mA Switched voltage: max. 60V AC; max. 60V DC Manufacturer series: OptoMOS Relay variant: 1-phase; current source Body dimensions: 4.09x3.81x2.03mm Operating temperature: -40...85°C Turn-on time: 10ms Case: SOP4 Turn-off time: 10ms Control current max.: 50mA On-state resistance: 10Ω Mounting: SMT Kind of output: MOSFET Contacts configuration: SPST-NC Insulation voltage: 1.5kV |
auf Bestellung 1803 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
CPC1106N | Ixys Corporation |
Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP Tube |
auf Bestellung 1910 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
CPC1106N | IXYS Integrated Circuits |
Solid State Relays - PCB Mount 1-Form-B, 60V, 75mA 4-Pin SOP |
auf Bestellung 54955 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
CPC1106N | IXYS Integrated Circuits Division |
Description: SSR RELAY SPST-NC 75MA 0-60V Packaging: Tube Package / Case: 4-SOP (0.150", 3.81mm) Output Type: AC, DC Mounting Type: Surface Mount Voltage - Input: 1.2VDC Circuit: SPST-NC (1 Form B) Operating Temperature: -40°C ~ 85°C Termination Style: Gull Wing Load Current: 75 mA Approval Agency: CSA, TUV, UL Supplier Device Package: 4-SOP Voltage - Load: 0 V ~ 60 V On-State Resistance (Max): 10 Ohms Relay Type: Photo-Coupled Relay (Photorelay) |
auf Bestellung 4870 Stücke: Lieferzeit 10-14 Tag (e) |
|
| CPC1106N |
|
Hersteller: Littelfuse
Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP Tube
Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP Tube
auf Bestellung 300 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 100+ | 2.12 EUR |
| CPC1106N |
|
Hersteller: IXYS
Category: One Phase Solid State Relays
Description: Relay: solid state; SPST-NC; Icntrl max: 50mA; 75mA; max.60VAC
Type of relay: solid state
Max. operating current: 75mA
Switched voltage: max. 60V AC; max. 60V DC
Manufacturer series: OptoMOS
Relay variant: 1-phase; current source
Body dimensions: 4.09x3.81x2.03mm
Operating temperature: -40...85°C
Turn-on time: 10ms
Case: SOP4
Turn-off time: 10ms
Control current max.: 50mA
On-state resistance: 10Ω
Mounting: SMT
Kind of output: MOSFET
Contacts configuration: SPST-NC
Insulation voltage: 1.5kV
Category: One Phase Solid State Relays
Description: Relay: solid state; SPST-NC; Icntrl max: 50mA; 75mA; max.60VAC
Type of relay: solid state
Max. operating current: 75mA
Switched voltage: max. 60V AC; max. 60V DC
Manufacturer series: OptoMOS
Relay variant: 1-phase; current source
Body dimensions: 4.09x3.81x2.03mm
Operating temperature: -40...85°C
Turn-on time: 10ms
Case: SOP4
Turn-off time: 10ms
Control current max.: 50mA
On-state resistance: 10Ω
Mounting: SMT
Kind of output: MOSFET
Contacts configuration: SPST-NC
Insulation voltage: 1.5kV
auf Bestellung 1803 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 26+ | 3.32 EUR |
| 28+ | 3.13 EUR |
| 50+ | 2.62 EUR |
| CPC1106N |
|
Hersteller: Ixys Corporation
Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP Tube
Relay SSR 50mA 1.5V DC-IN 0.075A 60V AC/DC-OUT 4-Pin SOP Tube
auf Bestellung 1910 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 34+ | 5.21 EUR |
| 50+ | 4.3 EUR |
| CPC1106N |
|
Hersteller: IXYS Integrated Circuits
Solid State Relays - PCB Mount 1-Form-B, 60V, 75mA 4-Pin SOP
Solid State Relays - PCB Mount 1-Form-B, 60V, 75mA 4-Pin SOP
auf Bestellung 54955 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 5.55 EUR |
| 10+ | 5.13 EUR |
| 25+ | 4.63 EUR |
| 50+ | 4.46 EUR |
| 100+ | 4.32 EUR |
| 300+ | 4.11 EUR |
| 500+ | 3.96 EUR |
| CPC1106N |
|
Hersteller: IXYS Integrated Circuits Division
Description: SSR RELAY SPST-NC 75MA 0-60V
Packaging: Tube
Package / Case: 4-SOP (0.150", 3.81mm)
Output Type: AC, DC
Mounting Type: Surface Mount
Voltage - Input: 1.2VDC
Circuit: SPST-NC (1 Form B)
Operating Temperature: -40°C ~ 85°C
Termination Style: Gull Wing
Load Current: 75 mA
Approval Agency: CSA, TUV, UL
Supplier Device Package: 4-SOP
Voltage - Load: 0 V ~ 60 V
On-State Resistance (Max): 10 Ohms
Relay Type: Photo-Coupled Relay (Photorelay)
Description: SSR RELAY SPST-NC 75MA 0-60V
Packaging: Tube
Package / Case: 4-SOP (0.150", 3.81mm)
Output Type: AC, DC
Mounting Type: Surface Mount
Voltage - Input: 1.2VDC
Circuit: SPST-NC (1 Form B)
Operating Temperature: -40°C ~ 85°C
Termination Style: Gull Wing
Load Current: 75 mA
Approval Agency: CSA, TUV, UL
Supplier Device Package: 4-SOP
Voltage - Load: 0 V ~ 60 V
On-State Resistance (Max): 10 Ohms
Relay Type: Photo-Coupled Relay (Photorelay)
auf Bestellung 4870 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 5.93 EUR |
| 10+ | 5.28 EUR |
| 25+ | 5.05 EUR |
| 50+ | 4.88 EUR |
| 100+ | 4.71 EUR |
| 300+ | 4.45 EUR |
| 500+ | 4.34 EUR |
| 1000+ | 4.19 EUR |
