Produkte > IXYS > CPC1981Y

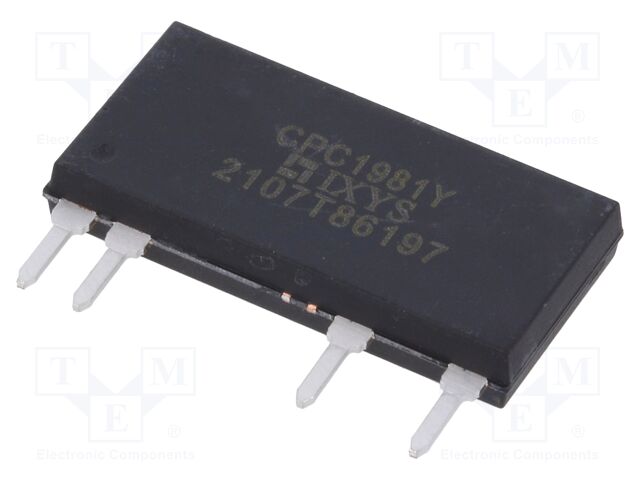

CPC1981Y

CPC1981Y IXYS


pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA8B49383A8B4C0C7&compId=CPC1981.pdf?ci_sign=49fda13fe6a6bae85cf657bec9b4905da8f5b07d Hersteller: IXYS
Category: One Phase Solid State Relays
Description: Relay: solid state; SPST-NO; Icntrl max: 50mA; 180mA; max.1kVAC
Type of relay: solid state
Contacts configuration: SPST-NO
Max. operating current: 180mA
Switched voltage: max. 1kV AC
Manufacturer series: OptoMOS
Relay variant: 1-phase
On-state resistance: 18Ω
Mounting: THT
Case: SIP4
Operating temperature: -40...85°C
Kind of output: MOSFET
Insulation voltage: 2.5kV
Body dimensions: 21.08x10.16x3.3mm
Turn-off time: 5ms
Turn-on time: 10ms
Control current max.: 50mA
auf Bestellung 19 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
13+5.95 EUR
19+3.76 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details CPC1981Y IXYS

Description: IXYS SEMICONDUCTOR - CPC1981Y - MOSFET RELAY, SPST-NO, 0.18A, 1KV, THT, tariffCode: 85364900, rohsCompliant: YES, Relaisanschlüsse: PC Pin, hazardous: false, rohsPhthalatesCompliant: YES, usEccn: EAR99, Leckstrom im ausgeschalteten Zustand, max.: 1µA, Isolationsspannung: 2.5kV, Lasttyp: AC / DC, euEccn: NLR, Lastspannung, max.: 1kV, Relaismontage: Through Hole, Kontaktform: SPST-NO (1 Form A), Laststrom: 180mA, Produktpalette: OptoMOS Series, productTraceability: Yes-Date/Lot Code, I/O-Kapazität: 1pF, Bauform MOSFET-Relais: SIP-8 (4-Pin Used), Durchlasswiderstand, max.: 18ohm, directShipCharge: 25.

Weitere Produktangebote CPC1981Y nach Preis ab 3.76 EUR bis 7.13 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
CPC1981Y CPC1981Y Hersteller : IXYS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAA8B49383A8B4C0C7&compId=CPC1981.pdf?ci_sign=49fda13fe6a6bae85cf657bec9b4905da8f5b07d Category: One Phase Solid State Relays
Description: Relay: solid state; SPST-NO; Icntrl max: 50mA; 180mA; max.1kVAC
Type of relay: solid state
Contacts configuration: SPST-NO
Max. operating current: 180mA
Switched voltage: max. 1kV AC
Manufacturer series: OptoMOS
Relay variant: 1-phase
On-state resistance: 18Ω
Mounting: THT
Case: SIP4
Operating temperature: -40...85°C
Kind of output: MOSFET
Insulation voltage: 2.5kV
Body dimensions: 21.08x10.16x3.3mm
Turn-off time: 5ms
Turn-on time: 10ms
Control current max.: 50mA
Anzahl je Verpackung: 1 Stücke
auf Bestellung 19 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
13+5.95 EUR
19+3.76 EUR
Mindestbestellmenge: 13
Im Einkaufswagen  Stück im Wert von  UAH
CPC1981Y CPC1981Y Hersteller : Littelfuse Inc. littelfuse-integrated-circuits-cpc1981y-datasheet?assetguid=583c4cbc-acd7-47cd-b2e6-39af7c3ab603 Description: SSR RELAY SPST-NO 180MA 0-1000V
Packaging: Tube
Package / Case: 8-SIP, 4 Leads
Output Type: AC, DC
Mounting Type: Through Hole
Voltage - Input: 1.2VDC
Circuit: SPST-NO (1 Form A)
Operating Temperature: -40°C ~ 85°C
Termination Style: PC Pin
Load Current: 180 mA
Approval Agency: CSA, TUV, UL
Supplier Device Package: 4-SIP
Voltage - Load: 0 V ~ 1000 V
On-State Resistance (Max): 18 Ohms
auf Bestellung 24792 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+6.64 EUR
10+5.91 EUR
25+5.65 EUR
50+5.45 EUR
100+5.27 EUR
250+5.03 EUR
500+4.85 EUR
1000+4.69 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
CPC1981Y CPC1981Y Hersteller : IXYS Integrated Circuits media-3320832.pdf Solid State Relays - PCB Mount 1000V Single Pole SIP Power Relay
auf Bestellung 7702 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+7.13 EUR
10+5.07 EUR
100+4.61 EUR
250+4.24 EUR
500+4.15 EUR
1000+4.05 EUR
Im Einkaufswagen  Stück im Wert von  UAH
CPC1981Y CPC1981Y Hersteller : IXYS SEMICONDUCTOR 2968975.pdf Description: IXYS SEMICONDUCTOR - CPC1981Y - MOSFET RELAY, SPST-NO, 0.18A, 1KV, THT
tariffCode: 85364900
rohsCompliant: YES
Relaisanschlüsse: PC Pin
hazardous: false
rohsPhthalatesCompliant: YES
usEccn: EAR99
Leckstrom im ausgeschalteten Zustand, max.: 1µA
Isolationsspannung: 2.5kV
Lasttyp: AC / DC
euEccn: NLR
Lastspannung, max.: 1kV
Relaismontage: Through Hole
Kontaktform: SPST-NO (1 Form A)
Laststrom: 180mA
Produktpalette: OptoMOS Series
productTraceability: Yes-Date/Lot Code
I/O-Kapazität: 1pF
Bauform MOSFET-Relais: SIP-8 (4-Pin Used)
Durchlasswiderstand, max.: 18ohm
directShipCharge: 25
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
CPC1981Y CPC1981Y Hersteller : Littelfuse productcatalog.pdf Relay SSR 50mA 1.4V DC-IN 0.18A 600V 4-Pin Power SIP Tube
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
CPC1981Y CPC1981Y Hersteller : Littelfuse clare_solidstate.pdf Solid State Relay 50mA 1.4V DC-IN 0.18A 1000V AC/DC-OUT 4-Pin Power SIP Tube
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
