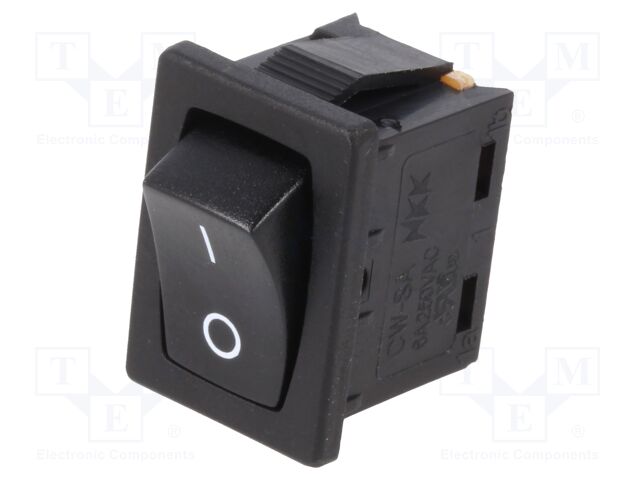

CWSA11AAN2S NKK SWITCHES
Hersteller: NKK SWITCHES
Category: Rocker Switches
Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; none; Rcont max: 20mΩ
Type of switch: ROCKER
Contacts configuration: SPST
Number of positions: 2
Switching method: ON-OFF
AC contacts rating @R: 6A / 250V AC
Key button colour: black
Illumination: none
Max. contact resistance:: 20mΩ
Body colour: black
Body material: polyamide
Operating temperature: -10...70°C
Leads: connectors 3,0x0,8mm; for soldering
Electrical life: 10000 cycles
Mounting hole diameter: 12.9x19.2mm
Button marking: O-I
Button shape: rectangular
Body dimensions: 14.8x20.8x15.6mm
Contact material: brass
Min. insulation resistance: 500MΩ
Contact plating: silver plated
Poles number: 1
Mounting: on panel; SNAP-IN
Terminal pitch: 7mm
Number of terminals: 3
Mechanical durability: 30000 cycles
Manufacturer series: CW
Operating Force: 2.5N
Stable positions number: 2
Anzahl je Verpackung: 1 Stücke
Category: Rocker Switches
Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; none; Rcont max: 20mΩ
Type of switch: ROCKER
Contacts configuration: SPST
Number of positions: 2
Switching method: ON-OFF
AC contacts rating @R: 6A / 250V AC
Key button colour: black
Illumination: none
Max. contact resistance:: 20mΩ
Body colour: black
Body material: polyamide
Operating temperature: -10...70°C
Leads: connectors 3,0x0,8mm; for soldering
Electrical life: 10000 cycles
Mounting hole diameter: 12.9x19.2mm
Button marking: O-I
Button shape: rectangular
Body dimensions: 14.8x20.8x15.6mm
Contact material: brass
Min. insulation resistance: 500MΩ
Contact plating: silver plated
Poles number: 1
Mounting: on panel; SNAP-IN
Terminal pitch: 7mm
Number of terminals: 3
Mechanical durability: 30000 cycles
Manufacturer series: CW
Operating Force: 2.5N
Stable positions number: 2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 208 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
23+ | 3.15 EUR |
25+ | 2.93 EUR |
46+ | 1.57 EUR |
49+ | 1.49 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details CWSA11AAN2S NKK SWITCHES
Category: Rocker Switches, Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; none; Rcont max: 20mΩ, Type of switch: ROCKER, Contacts configuration: SPST, Number of positions: 2, Switching method: ON-OFF, AC contacts rating @R: 6A / 250V AC, Key button colour: black, Illumination: none, Max. contact resistance:: 20mΩ, Body colour: black, Body material: polyamide, Operating temperature: -10...70°C, Leads: connectors 3,0x0,8mm; for soldering, Electrical life: 10000 cycles, Mounting hole diameter: 12.9x19.2mm, Button marking: O-I, Button shape: rectangular, Body dimensions: 14.8x20.8x15.6mm, Contact material: brass, Min. insulation resistance: 500MΩ, Contact plating: silver plated, Poles number: 1, Mounting: on panel; SNAP-IN, Terminal pitch: 7mm, Number of terminals: 3, Mechanical durability: 30000 cycles, Manufacturer series: CW, Operating Force: 2.5N, Stable positions number: 2, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote CWSA11AAN2S nach Preis ab 1.49 EUR bis 7.23 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CWSA11AAN2S | Hersteller : NKK SWITCHES |
Category: Rocker Switches Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; none; Rcont max: 20mΩ Type of switch: ROCKER Contacts configuration: SPST Number of positions: 2 Switching method: ON-OFF AC contacts rating @R: 6A / 250V AC Key button colour: black Illumination: none Max. contact resistance:: 20mΩ Body colour: black Body material: polyamide Operating temperature: -10...70°C Leads: connectors 3,0x0,8mm; for soldering Electrical life: 10000 cycles Mounting hole diameter: 12.9x19.2mm Button marking: O-I Button shape: rectangular Body dimensions: 14.8x20.8x15.6mm Contact material: brass Min. insulation resistance: 500MΩ Contact plating: silver plated Poles number: 1 Mounting: on panel; SNAP-IN Terminal pitch: 7mm Number of terminals: 3 Mechanical durability: 30000 cycles Manufacturer series: CW Operating Force: 2.5N Stable positions number: 2 |
auf Bestellung 208 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||||
CWSA11AAN2S | Hersteller : NKK Switches | Rocker Switches SPST ON-NONE-OFF |
auf Bestellung 65 Stücke: Lieferzeit 14-28 Tag (e) |
|
|||||||||||||||||||
CWSA11AAN2S | Hersteller : NKK Switches |
Description: SWITCH ROCKER SPST 6A 250V Packaging: Bulk Current Rating (Amps): 6A (AC) Mounting Type: Panel Mount, Snap-In Circuit: SPST Switch Function: On-Off Operating Temperature: -10°C ~ 70°C Termination Style: Solder Lug Actuator Type: Concave (Curved) Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm Color - Actuator/Cap: Black Actuator Marking: O - Voltage Rating - AC: 250 V |
auf Bestellung 3039 Stücke: Lieferzeit 21-28 Tag (e) |
|
