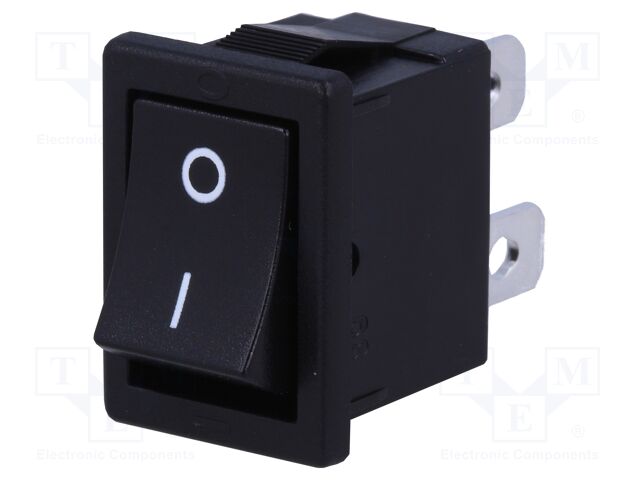

CWSB11AA2F NKK SWITCHES
Hersteller: NKK SWITCHES
Category: Rocker Switches
Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; CW; Rcont max: 20mΩ
Type of switch: ROCKER
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 2
Switching method: ON-OFF
AC contacts rating @R: 6A / 250V AC
Key button colour: black
Illumination: none
Manufacturer series: CW
Max. contact resistance:: 20mΩ
Body colour: black
Body material: polyamide
Leads: connectors
Leads dimensions: 4.75x0.8mm
Electrical life: 10000 cycles
Mounting hole dimensions: 12.9x19.2mm
Button marking: O-I
Shape: rectangular
Button shape: rectangular
Body dimensions: 21.1x15.1x16.2mm
Contact material: brass
Min. insulation resistance: 500MΩ
Contact plating: silver plated
Mounting: on panel; SNAP-IN
Mechanical durability: 30000 cycles
Operating Force: 6.5N
Operating temperature: -10...70°C
Produktrezensionen
Produktbewertung abgeben
Technische Details CWSB11AA2F NKK SWITCHES
Category: Rocker Switches, Description: ROCKER; SPST; Pos: 2; ON-OFF; 6A/250VAC; black; CW; Rcont max: 20mΩ, Type of switch: ROCKER, Contacts configuration: SPST, Number of positions: 2, Stable positions number: 2, Switching method: ON-OFF, AC contacts rating @R: 6A / 250V AC, Key button colour: black, Illumination: none, Manufacturer series: CW, Max. contact resistance:: 20mΩ, Body colour: black, Body material: polyamide, Leads: connectors, Leads dimensions: 4.75x0.8mm, Electrical life: 10000 cycles, Mounting hole dimensions: 12.9x19.2mm, Button marking: O-I, Shape: rectangular, Button shape: rectangular, Body dimensions: 21.1x15.1x16.2mm, Contact material: brass, Min. insulation resistance: 500MΩ, Contact plating: silver plated, Mounting: on panel; SNAP-IN, Mechanical durability: 30000 cycles, Operating Force: 6.5N, Operating temperature: -10...70°C.
Weitere Produktangebote CWSB11AA2F nach Preis ab 4.82 EUR bis 7.2 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CWSB11AA2F | NKK Switches |
Rocker Switches SPST ON-NONE-OFF |
auf Bestellung 118 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
CWSB11AA2F | NKK Switches |
Description: SWITCH ROCKER SPST 6A 250V Voltage Rating - AC: 250 V Part Status: Active Actuator Marking: O - Color - Actuator/Cap: Black Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm Actuator Type: Concave (Curved) Termination Style: Quick Connect - 0.187" (4.7mm) Operating Temperature: -10°C ~ 70°C Switch Function: On-Off Circuit: SPST Mounting Type: Panel Mount, Snap-In Current Rating (Amps): 6A (AC) Features: Audible Click Packaging: Bulk Approval Agency: cULus |
auf Bestellung 896 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
| CWSB11AA2F | NKK Switches |
Switch Rocker ON None OFF SPST Quick Connect Curved Rocker 6A 250VAC 30000Cycles |
auf Bestellung 13 Stücke: Lieferzeit 14-21 Tag (e) |
Im Einkaufswagen Stück im Wert von UAH |
| CWSB11AA2F |
|
Hersteller: NKK Switches
Rocker Switches SPST ON-NONE-OFF
Rocker Switches SPST ON-NONE-OFF
auf Bestellung 118 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 6.64 EUR |
| 10+ | 5.84 EUR |
| 25+ | 5.71 EUR |
| 100+ | 5.46 EUR |
| 250+ | 5.13 EUR |
| 500+ | 4.9 EUR |
| 1000+ | 4.82 EUR |
| CWSB11AA2F |
|
Hersteller: NKK Switches
Description: SWITCH ROCKER SPST 6A 250V
Voltage Rating - AC: 250 V
Part Status: Active
Actuator Marking: O -
Color - Actuator/Cap: Black
Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm
Actuator Type: Concave (Curved)
Termination Style: Quick Connect - 0.187" (4.7mm)
Operating Temperature: -10°C ~ 70°C
Switch Function: On-Off
Circuit: SPST
Mounting Type: Panel Mount, Snap-In
Current Rating (Amps): 6A (AC)
Features: Audible Click
Packaging: Bulk
Approval Agency: cULus
Description: SWITCH ROCKER SPST 6A 250V
Voltage Rating - AC: 250 V
Part Status: Active
Actuator Marking: O -
Color - Actuator/Cap: Black
Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm
Actuator Type: Concave (Curved)
Termination Style: Quick Connect - 0.187" (4.7mm)
Operating Temperature: -10°C ~ 70°C
Switch Function: On-Off
Circuit: SPST
Mounting Type: Panel Mount, Snap-In
Current Rating (Amps): 6A (AC)
Features: Audible Click
Packaging: Bulk
Approval Agency: cULus
auf Bestellung 896 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 3+ | 7.2 EUR |
| 10+ | 6.22 EUR |
| 25+ | 5.87 EUR |
| 50+ | 5.62 EUR |
| 100+ | 5.37 EUR |
| 250+ | 5.06 EUR |
| 500+ | 4.84 EUR |
| CWSB11AA2F |
|
Hersteller: NKK Switches
Switch Rocker ON None OFF SPST Quick Connect Curved Rocker 6A 250VAC 30000Cycles
Switch Rocker ON None OFF SPST Quick Connect Curved Rocker 6A 250VAC 30000Cycles
auf Bestellung 13 Stücke:
Lieferzeit 14-21 Tag (e)
