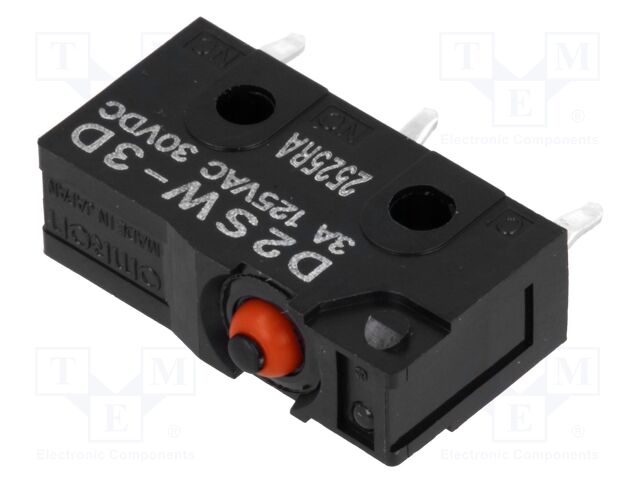

D2SW-3D OMRON Electronic Components
Hersteller: OMRON Electronic Components
Category: Microswitches SNAP ACTION
Description: Microswitch SNAP ACTION; 3A/125VAC; 3A/30VDC; without lever
Type of switch: microswitch SNAP ACTION
AC contacts rating @R: 3A / 125V AC
DC contacts rating @R: 3A / 30V DC
Switches features: without lever
Contacts configuration: SPDT
Max. contact resistance:: 30mΩ
Switching method: ON-(ON)
Number of positions: 2
Manufacturer series: D2SW
Stable positions number: 1
IP rating: IP67
Leads: for PCB; self-clinching
Body dimensions: 19.8x6.4x10.1mm
Mechanical durability: 5000000 cycles
Operating temperature: -40...85°C
Operating Force: 1.77N
Terminal pitch: 8.8mm
Contact plating: silver plated
Electrical life: 200000 cycles
Related items: D2SW
Produktrezensionen
Produktbewertung abgeben
Technische Details D2SW-3D OMRON Electronic Components
Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 3A/125VAC; 3A/30VDC; without lever, Type of switch: microswitch SNAP ACTION, AC contacts rating @R: 3A / 125V AC, DC contacts rating @R: 3A / 30V DC, Switches features: without lever, Contacts configuration: SPDT, Max. contact resistance:: 30mΩ, Switching method: ON-(ON), Number of positions: 2, Manufacturer series: D2SW, Stable positions number: 1, IP rating: IP67, Leads: for PCB; self-clinching, Body dimensions: 19.8x6.4x10.1mm, Mechanical durability: 5000000 cycles, Operating temperature: -40...85°C, Operating Force: 1.77N, Terminal pitch: 8.8mm, Contact plating: silver plated, Electrical life: 200000 cycles, Related items: D2SW.
Weitere Produktangebote D2SW-3D nach Preis ab 4.99 EUR bis 13.67 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D2SW-3D | Omron Electronics Inc-EMC Div |
Description: SWITCH SNAP ACTION SPDT 3A 125V Mechanical Life: 5,000,000 Cycles Electrical Life: 200,000 Cycles Voltage Rating - DC: 30 V Voltage Rating - AC: 125 V Part Status: Active Overtravel: 0.020" (0.5mm) Differential Travel: 0.004" (0.1mm) Pretravel: 0.024" (0.6mm) Release Force: 30gf Operating Position: 0.330" (8.4mm) Ingress Protection: IP67 - Dust Tight, Waterproof Operating Force: 180gf Actuator Type: Round (Pin Plunger) Termination Style: PC Pin Operating Temperature: -40°C ~ 85°C Switch Function: On-Mom Circuit: SPDT Mounting Type: Through Hole Current Rating (Amps): 3A (AC/DC) Packaging: Bulk |
auf Bestellung 275 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
D2SW-3D | Omron |
Switch Snap Action N.O./N.C. SPDT Pin Plunger 3A 250VAC 30VDC 1.77N Thru-Hole PC Pins |
auf Bestellung 642 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
 |
D2SW-3D | Omron Electronics |
Basic / Snap Action Switches Miniature Basic Auto Switch |
auf Bestellung 457 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
D2SW-3D | OMRON / PARTNER STOCK |
Description: OMRON / PARTNER STOCK - D2SW-3D - Mikroschalter, Subminiatur, Stiftstößel, SPDT, Lötanschluss, 3 A tariffCode: 85365080 rohsCompliant: YES Schalteranschlüsse: Lötanschluss Mikroschalter-Betätiger: Stiftstößel hazardous: false rohsPhthalatesCompliant: YES Kontaktstrom, max.: 3A usEccn: EAR99 AC-Kontaktspannung, nom.: 125V euEccn: NLR DC-Kontaktspannung, nom.: - Produktpalette: D2SW Series productTraceability: No Betätigungskraft, max.: 0.59N Kontaktkonfiguration: SPDT Mikroschaltertyp: Subminiatur SVHC: To Be Advised |
auf Bestellung 279 Stücke: Lieferzeit 14-21 Tag (e) |
|
| D2SW-3D |
|
Hersteller: Omron Electronics Inc-EMC Div
Description: SWITCH SNAP ACTION SPDT 3A 125V
Mechanical Life: 5,000,000 Cycles
Electrical Life: 200,000 Cycles
Voltage Rating - DC: 30 V
Voltage Rating - AC: 125 V
Part Status: Active
Overtravel: 0.020" (0.5mm)
Differential Travel: 0.004" (0.1mm)
Pretravel: 0.024" (0.6mm)
Release Force: 30gf
Operating Position: 0.330" (8.4mm)
Ingress Protection: IP67 - Dust Tight, Waterproof
Operating Force: 180gf
Actuator Type: Round (Pin Plunger)
Termination Style: PC Pin
Operating Temperature: -40°C ~ 85°C
Switch Function: On-Mom
Circuit: SPDT
Mounting Type: Through Hole
Current Rating (Amps): 3A (AC/DC)
Packaging: Bulk
Description: SWITCH SNAP ACTION SPDT 3A 125V
Mechanical Life: 5,000,000 Cycles
Electrical Life: 200,000 Cycles
Voltage Rating - DC: 30 V
Voltage Rating - AC: 125 V
Part Status: Active
Overtravel: 0.020" (0.5mm)
Differential Travel: 0.004" (0.1mm)
Pretravel: 0.024" (0.6mm)
Release Force: 30gf
Operating Position: 0.330" (8.4mm)
Ingress Protection: IP67 - Dust Tight, Waterproof
Operating Force: 180gf
Actuator Type: Round (Pin Plunger)
Termination Style: PC Pin
Operating Temperature: -40°C ~ 85°C
Switch Function: On-Mom
Circuit: SPDT
Mounting Type: Through Hole
Current Rating (Amps): 3A (AC/DC)
Packaging: Bulk
auf Bestellung 275 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 5.78 EUR |
| 10+ | 5.07 EUR |
| 25+ | 4.99 EUR |
| D2SW-3D |
|
Hersteller: Omron
Switch Snap Action N.O./N.C. SPDT Pin Plunger 3A 250VAC 30VDC 1.77N Thru-Hole PC Pins
Switch Snap Action N.O./N.C. SPDT Pin Plunger 3A 250VAC 30VDC 1.77N Thru-Hole PC Pins
auf Bestellung 642 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 24+ | 7.28 EUR |
| D2SW-3D |
|
Hersteller: Omron Electronics
Basic / Snap Action Switches Miniature Basic Auto Switch
Basic / Snap Action Switches Miniature Basic Auto Switch
auf Bestellung 457 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 8.43 EUR |
| 10+ | 7.66 EUR |
| 25+ | 7.35 EUR |
| 50+ | 6.72 EUR |
| 100+ | 6.53 EUR |
| 250+ | 6.07 EUR |
| 500+ | 5.74 EUR |
| D2SW-3D |
|
Hersteller: OMRON / PARTNER STOCK
Description: OMRON / PARTNER STOCK - D2SW-3D - Mikroschalter, Subminiatur, Stiftstößel, SPDT, Lötanschluss, 3 A
tariffCode: 85365080
rohsCompliant: YES
Schalteranschlüsse: Lötanschluss
Mikroschalter-Betätiger: Stiftstößel
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktstrom, max.: 3A
usEccn: EAR99
AC-Kontaktspannung, nom.: 125V
euEccn: NLR
DC-Kontaktspannung, nom.: -
Produktpalette: D2SW Series
productTraceability: No
Betätigungskraft, max.: 0.59N
Kontaktkonfiguration: SPDT
Mikroschaltertyp: Subminiatur
SVHC: To Be Advised
Description: OMRON / PARTNER STOCK - D2SW-3D - Mikroschalter, Subminiatur, Stiftstößel, SPDT, Lötanschluss, 3 A
tariffCode: 85365080
rohsCompliant: YES
Schalteranschlüsse: Lötanschluss
Mikroschalter-Betätiger: Stiftstößel
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktstrom, max.: 3A
usEccn: EAR99
AC-Kontaktspannung, nom.: 125V
euEccn: NLR
DC-Kontaktspannung, nom.: -
Produktpalette: D2SW Series
productTraceability: No
Betätigungskraft, max.: 0.59N
Kontaktkonfiguration: SPDT
Mikroschaltertyp: Subminiatur
SVHC: To Be Advised
auf Bestellung 279 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 30+ | 13.67 EUR |
| 90+ | 10.16 EUR |
